Name: DS1302Z+T&R
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS1302Z+T&R
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc./Maxim Integrated DS1302Z+T&R

Part No.:: DS1302Z+T&R

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: DS1302Z+T&R.pdf

Description:: IC RTC CLK/CALENDAR SER 8-SOIC

In Stock:: 4073

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS1302Z+T&R Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Clock/Calendar
Features:
Leap Year, NVSRAM, Trickle-Charger
MemorySize:
31B
TimeFormat:
HH:MM:SS (12/24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
3-Wire Serial
Voltage-Supply:
2V ~ 5.5V
Voltage-SupplyBattery:
2V ~ 5.5V
Current-Timekeeping(Max):
0.3µA ~ 1µA @ 2V ~ 5V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

DS1302Z+T&R this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS1302Z+T&R price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS1302Z+T&R to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS1302Z+T&R information

Views：

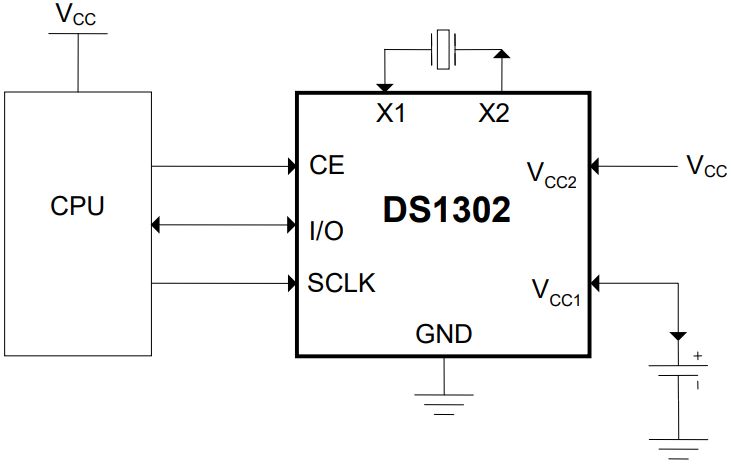

DS1302Z+T&R Typical application Circuitry

DS1302Z+T&R

The DS1302Z+T&R is a model in the DS1302 series, a line of real-time clock/calendar chips produced by Maxim Integrated. Noted for its low power consumption and integrated trickle-charge feature for backup battery maintenance, the DS1302Z+T&R is commonly implemented in systems where accurate time tracking is essential, such as in embedded systems, utility meters, and consumer electronics.

1. Power Supply Integration: The DS1302Z+T&R functions optimally within a voltage range of 2.0V to 5.5V. To power the chip, connect the VCC2 pin to a power source that aligns with this voltage specification. The DS1302Z+T&R also includes a VCC1 pin for a backup power connection, typically a 3V coin cell battery, to maintain clock operations during main power downtimes.

2. Grounding the Chip: It is vital to connect the GND pin of the DS1302Z+T&R to your circuit's ground. This grounding is essential for the chip's stability and efficient performance.

3. Serial Communication Setup: The DS1302Z+T&R utilizes a three-wire interface for communication. The SCLK pin, serving as the Serial Clock, should be connected to a clock signal output from a microcontroller. The I/O pin, designated for Input/Output, needs to be linked to a serial data pin on the microcontroller. The CE (Chip Enable) pin, which is critical for initiating and ending data communication, must be connected to a digital control pin on the microcontroller.

4. Crystal Oscillator Connection: The DS1302Z+T&R requires an external 32.768 kHz crystal oscillator for timekeeping purposes, connected across the X1 and X2 pins. The accuracy of the chip's timekeeping capabilities is highly dependent on the precision of this crystal.

5. Leveraging the DS1302Z+T&R's Functionalities: This chip offers 31 bytes of static RAM, which can be used for data storage, and manages calendar and clock functions. These features are managed through the serial interface, where the chip's registers can be accessed and controlled. Additionally, the DS1302Z+T&R features a programmable trickle charger for the backup battery.

6. PCB Layout Design: When designing the PCB layout, ensure the DS1302Z+T&R is placed strategically to avoid interference from high-frequency components. Special care should be taken in the layout of the crystal oscillator circuit to maintain the integrity of the timekeeping function.

7. Incorporating Protection for the DS1302Z+T&R: To protect the DS1302Z+T&R from electrical noise and disturbances, consider adding resistors and capacitors in the circuit. These components can help stabilize the chip, especially in environments with electrical fluctuations.

In summary, the DS1302Z+T&R is a versatile and reliable real-time clock chip, ideal for a variety of timekeeping applications. Ensuring proper connections for power supply, grounding, serial communication, and crystal oscillator implementation are crucial. A well-planned PCB layout and the inclusion of protective components ensure the DS1302Z+T&R functions effectively in its intended application.
