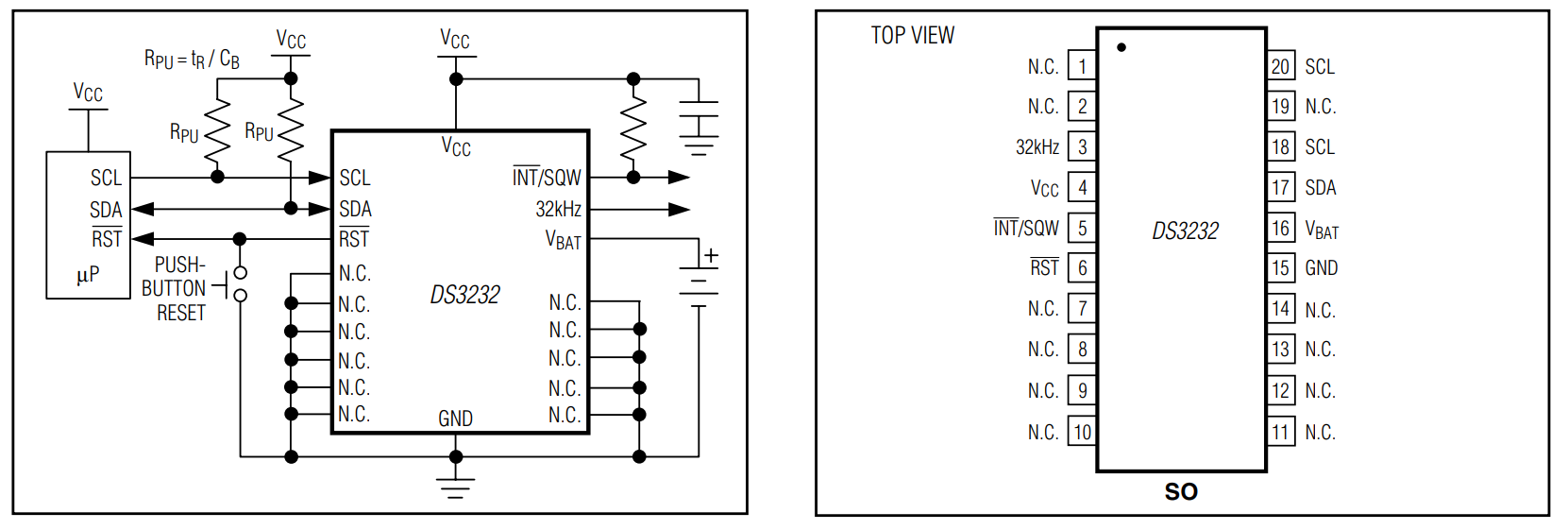

DS3232SN#T&R Typical application Circuitry

The DS3232SN#T&R is a temperature-compensated crystal oscillator (TCXO)-equipped high-precision I2C real-time clock (RTC). Its "T&R" suffix denotes its Tape and Reel packaging, designed for automated assembly processes. With added functionalities like dual alarms, temperature sensing, and 236 bytes of battery-backed SRAM, this RTC chip offers a comprehensive solution for time-sensitive applications.

Potential Applications for DS3232SN#T&R

The DS3232SN#T&R has a wide array of use-cases, such as:

1. Data Logging Systems

2. Industrial Controllers

3. Smart Agriculture

4. Payment Terminals

Distinguishing Features of DS3232SN#T&R

Feature-wise, the DS3232SN#T&R brings several offerings to the table:

- Exceptionally accurate timekeeping, even under temperature variations

- temperature sensor built-in

- Dual alarms with a square wave

- Battery backup support for SRAM and timekeeping

Sample Circuit: Data Logging System

Let's explore how the DS3232SN#T&R can be used in a data logging system that not only requires precise time stamps but also temperature logs.

Detailed Connection Guidelines:

1. Provisioning for Power

- VCC to Power Source: Wire the VCC pin directly to either a 3.3V or 5V power source, depending on your system requirements.

2. Battery-Backed Operation

- VBAT and a Lithium Battery: Secure a lithium battery to the VBAT pin to ensure the RTC and SRAM functions persist during power losses.

3. I²C Communication

- SDA and SCL Connections: These two pins should be connected to the SDA (Data) and SCL (Clock) pins of the microcontroller you're using.

4. Temperature Data Collection

- Built-in Sensor: The chip's built-in temperature sensor can be accessed via the I²C interface, meaning no additional pin connections are required for temperature data collection.

5. Alarm Setup and Interrupts

- SQW/INT Pin: This multi-function pin can output square waves or serve as an interrupt for alarm functions. Route it to an interrupt pin on your microcontroller to enable alarm-based logging.

Circuit Design Considerations

When incorporating the DS3232SN#T&R, you should consider the following:

- I²C Line Integrity: Pull-up resistors may be required on the SDA and SCL lines to ensure reliable data transfer.

- Battery Longevity: Choose a lithium battery of high quality to secure extended operation.

- EMI/EMC Considerations: When laying out the PCB, keep the DS3232SN#T&R and its associated circuitry away from high-frequency or noisy components to minimize electromagnetic interference.

- Component Proximity: Keep the TCXO away from heat-producing components to sustain its accuracy.

This thorough guideline ensures that you can maximize the DS3232SN#T&R's functionalities, particularly in applications like data logging systems that demand highly accurate timekeeping and data integrity.

DS3232SN#T&R information

DS3232SN#T&R Specifications

Package/Case:
20-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Clock/Calendar
Features:
Alarm, Leap Year, Square Wave Output, SRAM, TCXO/Crystal
MemorySize:
236B
TimeFormat:
HH:MM:SS (12/24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
I²C, 2-Wire Serial
Voltage-Supply:
2.3V ~ 5.5V
Voltage-SupplyBattery:
2.3V ~ 5.5V
Current-Timekeeping(Max):
120µA ~ 160µA @ 3.3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount
