Semtech Corporation RCLAMP0524PATCT

Part No.:: RCLAMP0524PATCT

Manufacturer:: Semtech Corporation

Package:: 10-UFDFN

Datasheet:: RCLAMP0524PATCT.pdf

Description:: TVS DIODE 5VWM 15VC SLP2510P8

In Stock:: 74193

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

RCLAMP0524PATCT Specifications

Package/Case:
10-UFDFN
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
RailClamp®
ProductStatus:
Active
Type:
Steering (Rail to Rail)
UnidirectionalChannels:
4
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
5V (Max)
Voltage-Breakdown(Min):
6V
Voltage-Clamping(Max)@Ipp:
15V
Current-PeakPulse(10/1000µs):
5A (8/20µs)
Power-PeakPulse:
150W
PowerLineProtection:
Yes
Applications:
HDMI
Capacitance@Frequency:
0.8pF @ 1MHz
OperatingTemperature:
-55°C ~ 125°C (TJ)
MountingType:
Surface Mount

RCLAMP0524PATCT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including RCLAMP0524PATCT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for RCLAMP0524PATCT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

RCLAMP0524PATCT information

Views：

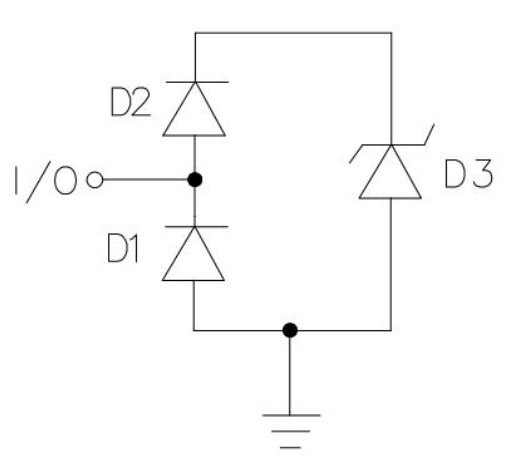

RCLAMP0524PATCT Typical application Circuitry

RCLAMP0524PATCT

The RCLAMP0524PATCT is a transient voltage suppression (TVS) diode array designed by Semtech. It's specifically tailored for protecting sensitive electronics from electrostatic discharge (ESD), cable discharge events (CDE), electrical fast transients (EFT), and lightning-induced voltage surges. This device is commonly used in high-speed data lines, USB interfaces, and other sensitive digital and communication applications.

Application Scenario: USB 3.0 Port Protection

A typical application for the RCLAMP0524PATCT is protecting USB 3.0 ports, where it can safeguard the data lines from ESD events that could potentially harm connected devices or the USB controller.

Key Features:

1. Low Clamping Voltage: Provides robust protection by clamping high transient voltages to a safe level quickly.

2. High ESD Protection: Efficiently protects against ESD strikes, safeguarding sensitive components.

3. Low Capacitance: Suitable for high-speed data lines due to minimal impact on signal transmission.

4. Multi-Line Protection: Designed to protect up to four data lines, enhancing efficiency in interface protection.

Circuit Connection: USB 3.0 ESD Protection

1. Data Line Connections: Connect each of the USB 3.0 data lines (D+ and D-) to the I/O pins of the RCLAMP0524PATCT. This involves connecting the data lines to the respective I/O ports of the TVS diode array.

2. Grounding: Attach the ground pin of the RCLAMP0524PATCT to the system ground. Effective grounding is crucial for transient voltage dissipation.

3. Placement: Ideally, place the RCLAMP0524PATCT as close as possible to the USB connector to ensure immediate suppression of any transient voltage.

4. Power Line Connection (If Applicable): Some designs might require connecting the Vcc pin to the positive power rail, based on the circuit requirements.

Design Considerations:

- Placement and Routing: Minimize trace lengths to the RCLAMP0524PATCT for effective ESD suppression.

- Signal Integrity: Ensure the diode array's low capacitance doesn't degrade the high-speed USB 3.0 signal quality.

- Transient Characteristics: Evaluate the transient response of the TVS array to match the specific protection requirements of the USB interface.

- Thermal Management: Consider the thermal aspects, as TVS diodes can generate heat during large or frequent transient events.

In conclusion, the RCLAMP0524PATCT TVS diode array is well-suited for protecting USB 3.0 ports, where its low clamping voltage, high ESD protection capability, low capacitance, and multi-line protection are key. When designing circuits with this device, it's crucial to focus on optimal placement and routing, maintaining signal integrity, understanding its transient response characteristics, and managing thermal aspects for effective protection and performance.
