Semtech Corporation RCLAMP0524P.TCT

Part No.:: RCLAMP0524P.TCT

Manufacturer:: Semtech Corporation

Package:: 10-UFDFN

Datasheet:: RCLAMP0524P.TCT.pdf

Description:: TVS DIODE 5VWM 15VC SLP2510P8

In Stock:: 31291

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

RCLAMP0524P.TCT Specifications

Package/Case:
10-UFDFN
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
RailClamp®
ProductStatus:
Last Time Buy
Type:
Steering (Rail to Rail)
UnidirectionalChannels:
4
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
5V (Max)
Voltage-Breakdown(Min):
6V
Voltage-Clamping(Max)@Ipp:
15V
Current-PeakPulse(10/1000µs):
5A (8/20µs)
Power-PeakPulse:
150W
PowerLineProtection:
Yes
Applications:
HDMI
Capacitance@Frequency:
0.8pF @ 1MHz
OperatingTemperature:
-55°C ~ 125°C (TJ)
MountingType:
Surface Mount

RCLAMP0524P.TCT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including RCLAMP0524P.TCT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for RCLAMP0524P.TCT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

RCLAMP0524P.TCT information

Views：

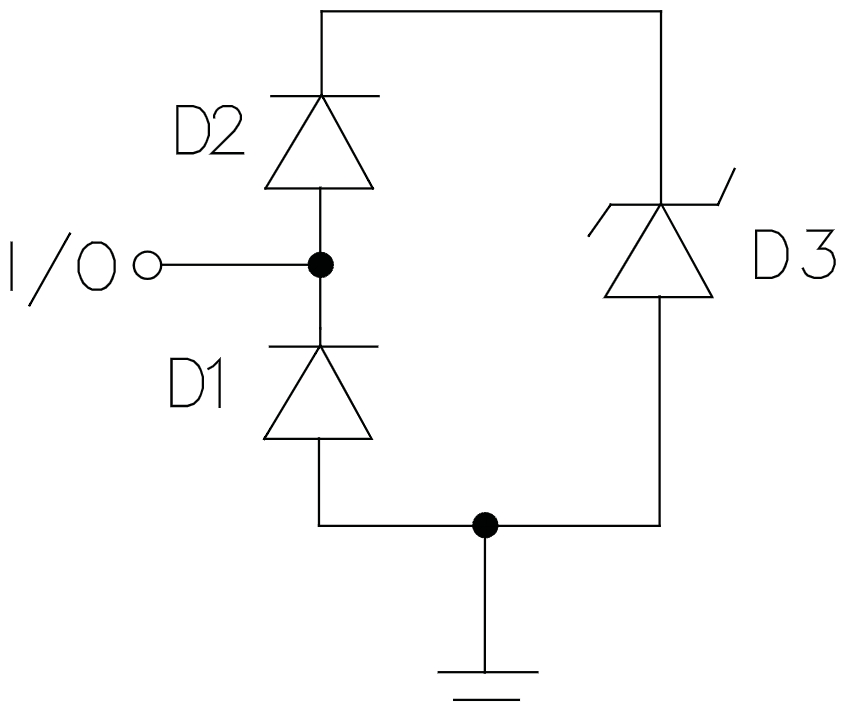

RCLAMP0524P.TCT Typical application Circuitry

RCLAMP0524P.TCT

The RCLAMP0524P.TCT is a transient voltage suppression (TVS) diode array designed by Semtech. Its main purpose is to safeguard delicate electronic circuits against lightning-induced voltage surges, electrical fast transients (EFT), and electrostatic discharge (ESD). This device is commonly employed in high-speed data interfaces like USB, Ethernet, and video lines, where signal integrity and protection against transient voltages are crucial.

Application Scenario: HDMI Interface Protection

A common application for RCLAMP0524P.TCT is in HDMI (High-Definition Multimedia Interface) port protection, safeguarding against ESD damage during the connection and disconnection of HDMI cables.

Key Features:

1. Low Clamping Voltage: Provides robust protection by clamping high transient voltages to a safe level.

2. High ESD Protection: Capable of withstanding ESD strikes, ensuring the safety of sensitive components.

3. Low Capacitance: Suitable for high-speed data lines due to minimal impact on signal transmission.

4. Multiple Line Protection: Designed to protect up to four data lines, making it efficient for interface protection.

Circuit Connection: HDMI ESD Protection

1. Data Line Connections: Connect each of the HDMI data lines (TMDS pairs) to the I/O pins of the RCLAMP0524P.TCT. This typically involves the TMDS data lines and clock line.

2. Grounding: Attach the ground pin of the RCLAMP0524P.TCT to the system ground. This is essential for effective transient dissipation.

3. Placement: Position the RCLAMP0524P.TCT as close as possible to the HDMI connector to ensure immediate transient voltage suppression.

4. Power Line Connection (If Applicable): Some designs may require connecting the Vcc pin to the positive power rail, depending on the circuit configuration.

Design Considerations:

- Signal Integrity: Evaluate the impact on high-speed signals to ensure the diode array does not degrade HDMI signal quality.

- ESD Protection Level: Match the ESD protection level of RCLAMP0524P.TCT with the requirements of the HDMI interface.

- PCB Layout: Optimize the PCB layout to minimize parasitic inductance and ensure quick response to transient events.

- Thermal Management: Account for heat dissipation, particularly in scenarios involving frequent or high-energy transients.

In summary, the RCLAMP0524P.TCT is well-suited for HDMI interface protection, where its low clamping voltage, high ESD protection capability, low capacitance, and multiple line protection are vital. When designing circuits with this TVS diode array, considerations such as signal integrity, ESD protection level, PCB layout optimization, and thermal management are critical for ensuring effective protection and maintaining signal quality.
