Mini-Circuits PMA3-83LN+

Part No.:: PMA3-83LN+

Manufacturer:: Mini-Circuits

Package:: 12-VQFN Exposed Pad

Datasheet:: PMA3-83LN+.pdf

Description:: SMT LOW NOISE AMPLIFIER, 500 - 8

In Stock:: 2278

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PMA3-83LN+ Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Frequency:
500MHz ~ 8GHz
P1dB:
20.7dBm
Gain:
19.2dB
NoiseFigure:
2.2dB
RFType:
LTE, Radar, SATCOM, UMTS, WiFi, WiMAX, WLAN
Voltage-Supply:
5V, 6V
Current-Supply:
77mA
TestFrequency:
2GHz
MountingType:
Surface Mount

PMA3-83LN+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PMA3-83LN+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PMA3-83LN+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PMA3-83LN+ information

Views：

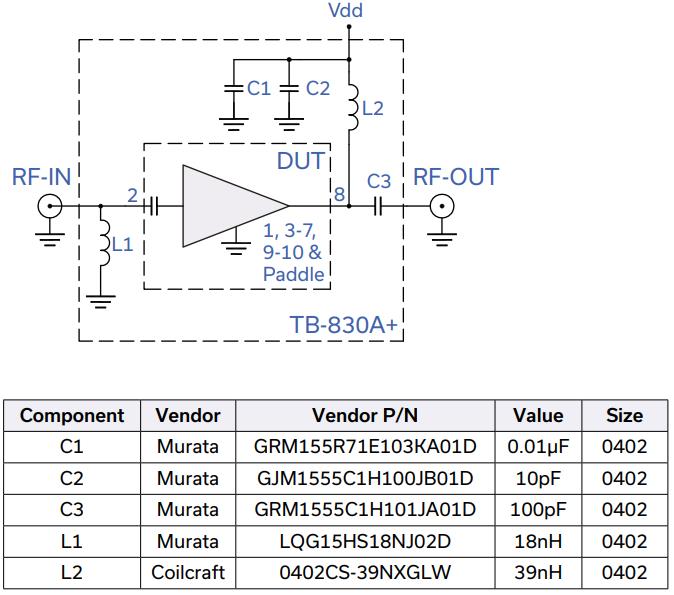

PMA3-83LN+ Typical application Circuitry

PMA3-83LN+

The PMA3-83LN+ is a low noise, high dynamic range monolithic amplifier designed and manufactured by Mini-Circuits. It's a type of MMIC (Monolithic Microwave Integrated Circuit) that primarily operates in the frequency range of 50 MHz to 8 GHz.

PMA3-83LN+ Characteristics:

1. Frequency Range: The PMA3-83LN+ operates effectively in the broad frequency range of 50 MHz to 8 GHz, making it useful in various high-frequency applications.

2. Noise Figure: It has a low noise figure of 1.3 dB at 2 GHz, which enables it to amplify signals with minimal added noise.

3. High Dynamic Range: The PMA3-83LN+ exhibits high dynamic range with a 1 dB compression point of 20.3 dBm at 2 GHz and an IP3 of 32.4 dBm at 2 GHz.

4. Unconditional Stability: The amplifier is unconditionally stable overall terminations, reducing the likelihood of oscillations under any load conditions.

PMA3-83LN+ Application Scenarios:

The PMA3-83LN+ is versatile and can be utilized in a wide array of applications, including cellular/PCS/3G, WiMAX, WiBro, fixed wireless, and other microwave radio applications.

Circuit Connection – Amplifier in RF Signal Chain:

Let's discuss an application of the PMA3-83LN+ in an RF signal chain. The amplifier can be used to boost signal strength while adding minimal noise.

1. RF Input (Pin 1): This is the input port for the RF signal to be amplified. Connect your signal source here.

2. RF Output (Pin 4): The amplified RF signal is provided at this output pin. This can be connected to the next stage in your signal chain, such as a mixer or another amplifier.

3. Ground (Pins 2, 3, 5, and 6): These are ground pins and must be connected to the system ground. A proper grounding strategy is crucial for optimal performance.

4. DC Supply (Pin 8): This pin is for the DC power supply input. The recommended voltage is 5V, and the current is typically 90 mA.

Design Considerations with PMA3-83LN+:

1. Power Supply Decoupling: It's essential to decouple the DC supply with a suitable capacitor to filter out any noise.

2. Heat Dissipation: Consider the thermal aspects in your design as the amplifier can generate heat during operation. A suitable heat sink or thermal via might be needed depending on your system's power levels.

3. Impedance Matching: The RF input and output are matched to 50 ohms. Therefore, your signal source and load should also be matched to 50 ohms to ensure maximum power transfer and reduce reflections.

4. Protection from Static Electricity: It's crucial to use appropriate ESD precautions while handling and deploying this MMIC.

The PMA3-83LN+ is a powerful amplifier that shines in high-frequency applications due to its high dynamic range and low noise figure. Good design practices regarding power supply decoupling, thermal management, impedance matching, and static electricity protection can maximize this chip's performance in your system.
