Mini-Circuits PHA-23HLN+

Part No.:: PHA-23HLN+

Manufacturer:: Mini-Circuits

Package:: TO-243AA

Datasheet:: PHA-23HLN+.pdf

Description:: IC RF AMP CATV 30MHZ-2GHZ SOT89

In Stock:: 2460

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PHA-23HLN+ Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Frequency:
30MHz ~ 2GHz
P1dB:
28.4dBm
Gain:
19.5dB
NoiseFigure:
1.9dB
RFType:
CATV, Cellular
Voltage-Supply:
8V
Current-Supply:
235mA
TestFrequency:
1GHz
MountingType:
Surface Mount

PHA-23HLN+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PHA-23HLN+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PHA-23HLN+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PHA-23HLN+ information

Views：

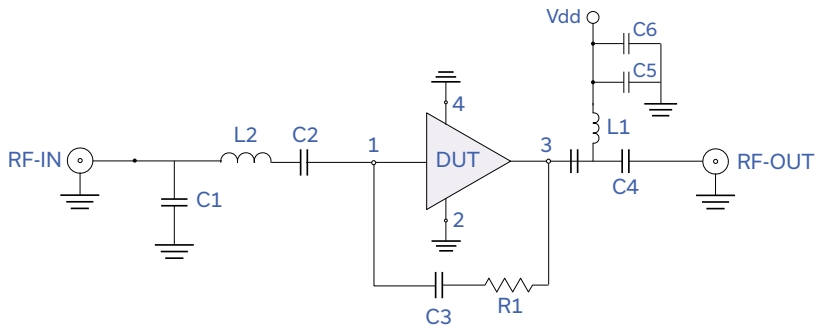

PHA-23HLN+ Typical application Circuitry

PHA-23HLN

The PHA-23HLN+ is an RF (Radio Frequency) amplifier, not a chip, designed by Mini-Circuits.It is designed for uses where RF signal amplification with strong linearity and low noise is necessary.

Application Scenario: RF Test Equipment

In the context of RF test equipment, the PHA-23HLN+ is employed to amplify signals being measured or tested, ensuring that they are within the optimal range for the test equipment's sensors or analyzers. This application leverages the amplifier's high gain and low noise figure to improve measurement accuracy and sensitivity, particularly for weak signal detection.

Key Parameters and Features:

- Broad Frequency Range: Capable of operating over a wide range of frequencies, accommodating various RF applications.

- High Gain: Significant signal amplification is provided, which is necessary to improve the detectability of weak signals.

- Low Noise Figure: Reduces extraneous noise, which is essential to preserving the integrity of the original signal.

- High Linearity: Assures that there is less distortion and the amplified signal stays faithful to its original form.

Circuit Connection Detail:

Incorporating the PHA-23HLN+ into RF test equipment necessitates careful attention to the following points and configurations:

- Power Supply Connection: The PHA-23HLN+ requires connection to a stable power source. The power supply pins must be properly connected, and it is essential to use decoupling capacitors near these pins to minimize supply noise.

- Impedance Matching: Optimal performance from the PHA-23HLN+ is achieved through proper impedance matching at both the input and output. This might involve designing matching networks that consist of capacitors and inductors to match the source and load impedance to the amplifier's specifications.

- Signal Path Considerations: To minimize potential loss and interference, the signal paths leading into and out of the PHA-23HLN+ should be as short as possible. Shielding these paths can also help preserve signal integrity.

- Grounding: Effective grounding is crucial for reducing noise and ensuring stable amplifier operation. The PHA-23HLN+'s ground connection should be made securely to the system's ground plane.

Design Considerations:

When designing a circuit with the PHA-23HLN+, several important factors need to be considered:

- Thermal Management: Although the PHA-23HLN+ is designed to be efficient, it is important to consider heat dissipation, especially when operating at high power levels or within enclosed spaces.

- Electromagnetic Interference (EMI): Adequate measures should be taken to shield the PHA-23HLN+ from EMI, which could otherwise impact its performance.

- Power Supply Quality: The power supply's quality has a direct impact on how well the amplifier performs. A clean, stable, and low-noise power source is vital for optimal operation.

- Component Layout and PCB Design: The placement of components and the layout of the PCB play significant roles in the performance of the PHA-23HLN+. Keeping signal paths short and using proper RF design techniques are key to minimizing loss and avoiding cross-talk.

By meticulously addressing these design considerations and effectively utilizing the PHA-23HLN+'s features, one can enhance the performance and accuracy of RF test equipment. The amplifier's ability to provide high gain while maintaining low noise and high linearity is crucial for improving the sensitivity and reliability of RF measurements and analyses.
