Name: PHA-13LN+
Brand: Mini-Circuits
SKU: PHA-13LN+
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Mini-Circuits PHA-13LN+

Part No.:: PHA-13LN+

Manufacturer:: Mini-Circuits

Package:: TO-243AA

Datasheet:: PHA-13LN+.pdf

Description:: IC RF AMP CATV 1MHZ-1GHZ SOT89

In Stock:: 2942

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PHA-13LN+ Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Frequency:
1MHz ~ 1GHz
P1dB:
24.5dBm
Gain:
20.1dB
NoiseFigure:
1.2dB
RFType:
CATV, Cellular
Voltage-Supply:
3V, 5V
Current-Supply:
138.9mA
TestFrequency:
500MHz
MountingType:
Surface Mount

PHA-13LN+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PHA-13LN+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PHA-13LN+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PHA-13LN+ information

Views：

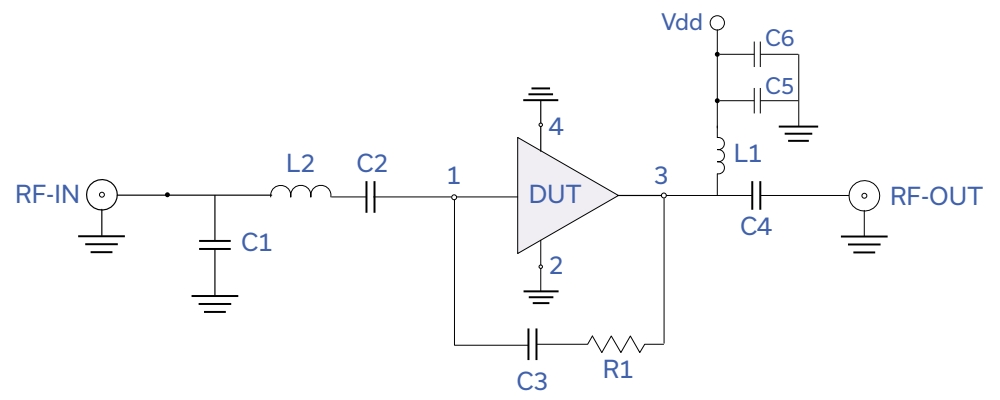

PHA-13LN+ Typical application Circuitry

PHA-13LN

The PHA-13LN+ is a low noise amplifier (LNA) designed for RF (Radio Frequency) applications, offering excellent noise performance across a wide frequency range. Manufactured by Mini-Circuits, this amplifier is tailored for scenarios where minimal signal degradation and low noise are paramount, such as in satellite communications, radio telescopes, and wireless communication receivers.

Application Scenario: Satellite Communication Receiver

In satellite communication systems, the PHA-13LN+ can be utilized as the first stage of amplification, directly after the antenna, to boost the very weak signals received from satellites. The amplifier's low noise figure significantly improves the system's signal-to-noise ratio (SNR), which is crucial for maintaining high-quality communication links over vast distances.

Key Parameters and Features:

- Low Noise Figure: Provides minimal additional noise to the received signal, crucial for sensitive applications.

- Wide Frequency Range: Capable of operating across a broad spectrum, making it versatile for various RF applications.

- High Gain: Amplifies weak signals to a level where they can be further processed by the receiver system.

- Robust Construction: Designed to perform reliably in diverse environmental conditions.

Circuit Connection Detail:

Incorporating the PHA-13LN+ into a satellite communication receiver requires meticulous attention to the following:

- Power Supply Connection: The Vdd pin of the PHA-13LN+ should be connected to a clean and stable power source, suitable for RF applications. Employing a bypass capacitor near this pin is essential to filter out power supply noise.

- Antenna Input Matching: The antenna's output should be impedance-matched to the PHA-13LN+'s input to ensure maximum signal transfer. This often involves using a network of inductors and capacitors to achieve the desired impedance at the operating frequency.

- Output Matching to the Receiver: Similar to the input, the output of the PHA-13LN+ must be matched to the next stage in the receiver chain, typically an RF filter or mixer, to optimize signal flow and minimize reflections.

- Grounding Strategy: Efficient grounding is critical for minimizing noise and interference. The PHA-13LN+ should be grounded properly, with special attention to creating a low-resistance path to ground for the best performance.

Design Considerations:

When designing a circuit with the PHA-13LN+, several factors should be carefully evaluated:

- Environmental Conditions: The circuit should be designed to withstand the environmental conditions it will be exposed to, especially if it's part of an outdoor satellite communication system.

- Signal Integrity: Keeping the signal paths as short as possible and using shielded cables where necessary helps preserve signal integrity and reduce losses.

- Thermal Management: Although the PHA-13LN+ is efficient, it's still crucial to consider thermal management in the design, particularly for high-gain or continuous operation settings.

- EMI/RFI Mitigation: Implementing strategies to shield the amplifier from electromagnetic and radio frequency interference is key, especially in a satellite communication environment where signal integrity is crucial.

By adhering to these guidelines and leveraging the PHA-13LN+'s exceptional performance characteristics, designers can effectively enhance the sensitivity and reliability of satellite communication receivers, ensuring high-quality signal amplification even in the most demanding scenarios.
