Name: PESD1CAN,215
Brand: Nexperia USA Inc.
SKU: PESD1CAN,215
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Nexperia USA Inc. PESD1CAN,215

Part No.:: PESD1CAN,215

Manufacturer:: Nexperia USA Inc.

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: PESD1CAN,215.pdf

Description:: TVS DIODE 24VWM 70VC TO236AB

In Stock:: 2078

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PESD1CAN,215 Specifications

Package/Case:
TO-236-3, SC-59, SOT-23-3
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
2
Voltage-ReverseStandoff(Typ):
24V (Max)
Voltage-Breakdown(Min):
25.4V
Voltage-Clamping(Max)@Ipp:
70V
Current-PeakPulse(10/1000µs):
3A (8/20µs)
Power-PeakPulse:
200W
PowerLineProtection:
No
Applications:
Automotive, CAN
Capacitance@Frequency:
11pF @ 1MHz
OperatingTemperature:
-65°C ~ 150°C (TA)
MountingType:
Surface Mount

PESD1CAN,215 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PESD1CAN,215 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PESD1CAN,215 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PESD1CAN,215 information

Views：

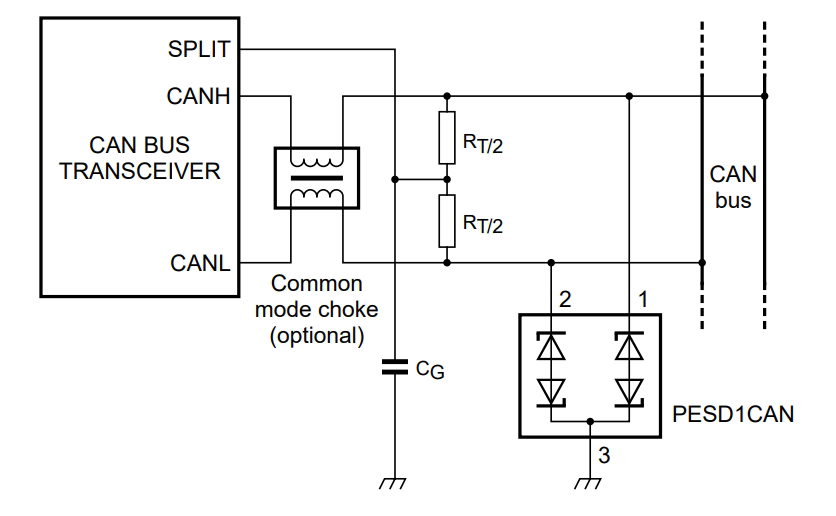

PESD1CAN,215 Typical application Circuitry

PESD1CAN,215

The PESD1CAN,215 is an ESD (Electrostatic Discharge) protection diode designed specifically for protecting CAN (Controller Area Network) bus systems from electrostatic damage. This component is commonly used in environments where CAN bus systems are exposed to the risk of ESD, such as in automotive, industrial, and communication applications.

Key Features:

- ESD Protection: Specifically tailored for CAN bus interfaces.

- Bidirectional Protection: Safeguards both lines of the CAN bus.

- Low Capacitance: Minimizes impact on signal quality.

- Robust Surge Handling: Can withstand substantial ESD events.

Application Scenario: Industrial CAN Bus System Protection

1. Application Purpose:

- In this scenario, the PESD1CAN,215 is employed to protect the CAN bus interface in industrial control systems.

2. Pin Connections:

- Bus Line Protection Pins (pin 1 and pin 2): Connected to the CANH (High) and CANL (Low) lines.

3. Specific Circuit Connection:

- Pin 1 is linked to the CANH line.

- Pin 2 is connected to the CANL line.

- Orientation matters due to the specific protection paths for the CANH and CANL lines.

4. Positioning in Relation to CAN Transceiver:

- The PESD1CAN,215 should be placed as close to the CAN transceiver as possible for immediate ESD response.

Design Considerations

1. Signal Clarity: Ensure that the diode's capacitance does not adversely affect the CAN bus signals.

2. Strategic Device Placement: Situate the ESD protection close to the interface to maximize protection efficiency.

3. PCB Trace Layout: Minimize trace lengths between the CAN transceiver and the ESD protection diode to reduce ESD susceptibility.

4. Grounding Protocol: Develop a solid grounding scheme to effectively disperse ESD currents.

5. System Compatibility: Verify that the PESD1CAN,215's electrical characteristics are compatible with the specific requirements of the industrial CAN bus system.

In summary, the PESD1CAN,215 is an essential component for ESD protection in CAN bus systems, especially in industrial settings. Effective circuit integration involves considerations like maintaining signal clarity, precise placement of the protection device, optimizing PCB trace layout, establishing a robust grounding, and ensuring compatibility with the CAN bus system. These factors are critical to safeguarding the CAN bus interface from ESD, thereby enhancing the reliability and longevity of industrial control systems.
