NXP USA Inc. PCF8583P/F5,112

Part No.:: PCF8583P/F5,112

Manufacturer:: NXP USA Inc.

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:: PCF8583P/F5,112.pdf

Description:: IC RTC CLK/CALENDAR I2C 8-DIP

In Stock:: 3431

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCF8583P/F5,112 Specifications

Package/Case:
8-DIP (0.300, 7.62mm)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
Type:
Clock/Calendar
Features:
Alarm, NVSRAM, Square Wave Output
MemorySize:
240B
TimeFormat:
HH:MM:SS:hh (12/24 hr)
DateFormat:
YY-MM-DD
Interface:
I²C, 2-Wire Serial
Voltage-Supply:
2.5V ~ 6V
Voltage-SupplyBattery:
-
Current-Timekeeping(Max):
10µA ~ 50µA @ 1V ~ 5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

PCF8583P/F5,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCF8583P/F5,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCF8583P/F5,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCF8583P/F5,112 information

Views：

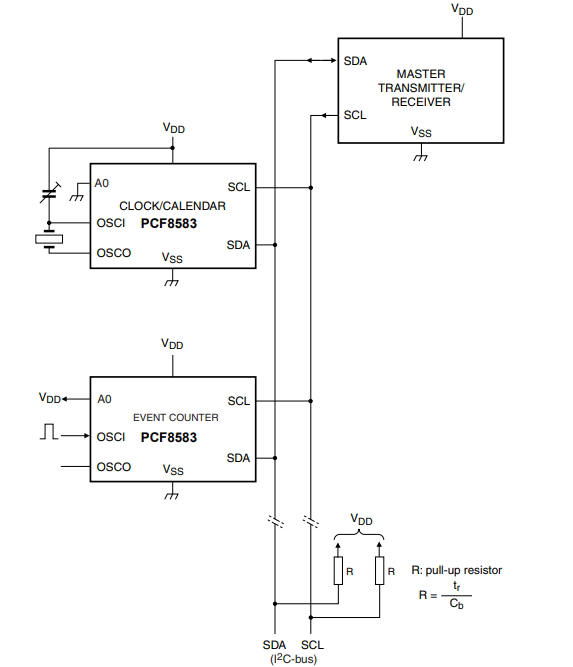

PCF8583P/F5,112 Typical application Circuitry

PCF8583P F5,112

The PCF8583P/F5,112 is an integrated circuit (IC) known for its functionality as a Real-Time Clock (RTC) and calendar. It is designed to provide precise time and date information, typically used in applications requiring timekeeping and scheduling features. This overview will detail the functionality of the PCF8583P/F5,112, its application scenarios, parameter features, and a specific circuit connection guide.

Functionality: The PCF8583P/F5,112 operates primarily as an RTC, offering accurate time and date tracking, which is essential in various electronic applications.

Application Scenarios: The PCF8583P/F5,112 is often utilized in consumer electronics, data logging systems, and embedded systems, particularly where time-based event recording or scheduling is crucial, such as in smart home devices.

Parameter Features:

1. Accurate Timekeeping: The PCF8583P/F5,112 maintains highly precise time and date information.

2. Low electricity Consumption: It is designed to use as little electricity as possible, which makes it appropriate for devices that run on batteries.

3. I2C Interface: Includes an I2C-bus interface for communication, ensuring easy integration with microcontrollers.

4. Alarm Function: Equipped with an alarm function for event scheduling and reminders.

Circuit Connection - Smart Home Device:

1. Power Supply Connection: Connect the PCF8583P/F5,112's VDD pin (pin 8, for example) to a reliable power supply.

2. Grounding the IC: Attach pin 5, or any other VSS pin, to the ground of the system.

3. Setting up I2C communication: Connect the PCF8583P/F5,112's SDA (Serial Data, pin 1) and SCL (Serial Clock, pin 2) pins to the microcontroller's I2C bus.

4. Alarm Configuration: Connect the INT (Interrupt, pin 7) pin to a microcontroller I/O for alarm signal handling.

Design Considerations:

- Stable Power Source: Ensuring a consistent power supply is crucial for the accurate operation of the PCF8583P/F5,112.

- I2C Bus Configuration: Proper setup of the I2C bus, including pull-up resistors and address setting, is essential for effective communication.

- Clock Accuracy: Implementing an external 32.768 kHz quartz crystal (connected to pins 3 and 4) is necessary for maintaining the timekeeping accuracy.

In conclusion, the PCF8583P/F5,112 is vital in applications like smart home devices where precise time and date tracking is required. Designing circuits for the PCF8583P/F5,112 involves careful consideration of power stability, I2C bus setup, and ensuring accurate clock functionality.
