NXP USA Inc. PCF8563T/5,518

Part No.:: PCF8563T/5,518

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: PCF8563T/5,518.pdf

Description:: IC RTC CLK/CALENDAR I2C 8-SOIC

In Stock:: 2795

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCF8563T/5,518 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
Clock/Calendar
Features:
Alarm, Leap Year, Watchdog Timer
MemorySize:
-
TimeFormat:
HH:MM:SS (24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
I²C, 2-Wire Serial
Voltage-Supply:
1.8V ~ 5.5V
Voltage-SupplyBattery:
-
Current-Timekeeping(Max):
0.6µA ~ 0.75µA @ 2V ~ 5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCF8563T/5,518 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCF8563T/5,518 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCF8563T/5,518 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCF8563T/5,518 information

Views：

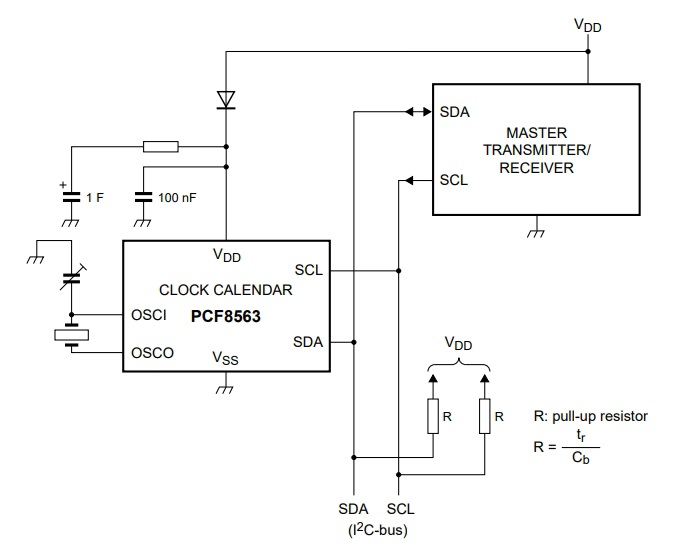

PCF8563T/5,518 Typical application Circuitry

PCF8563T 5,518

The PCF8563T/5,518 is an integrated circuit (IC) known for its functionality as a Real-Time Clock (RTC). It is widely used in applications that require accurate timekeeping and date information. This overview will explore the functionality of the PCF8563T/5,518, its application scenarios, and parameter features, and detail a circuit connection for a specific use case.

Functionality: The PCF8563T/5,518 serves as an RTC IC, providing precise time and calendar information, essential for various electronic applications.

Application Scenarios: The PCF8563T/5,518 is typically used in consumer electronics, like digital watches, alarm systems, and embedded systems that require time-based operations or logging.

Parameter Features:

1. Timekeeping Accuracy: The PCF8563T/5,518 is designed to maintain highly accurate timekeeping.

2. Low Power Consumption: Because of its low power needs, it can be used with battery-operated devices.

3. Calendar Functionality: Includes an integrated calendar for date-related functions.

4. Communication Protocol: The PCF8563T/5,518 utilizes an I2C-bus interface for communication.

Circuit Connection - Digital Watch:

1. Power Supply Connection: Connect the PCF8563T/5,518's VDD pin (similar to pin 8) to a reliable power supply.

2. Grounding: Connect the VSS pin (e.g., pin 4) to the common ground of the device.

3. I2C Communication: Interface the SDA (Serial Data Line, pin 5) and SCL (Serial Clock Line, pin 6) of the PCF8563T/5,518 with the microcontroller for data transfer.

4. Oscillator Circuit: Link a 32.768 kHz crystal to the XTAL1 (pin 1) and XTAL2 (pin 2) pins for accurate timekeeping.

Design Considerations:

- Stable Power Source: Ensuring a continuous and stable power supply to the PCF8563T/5,518 is vital for accurate timekeeping.

- Interference Reduction: Minimizing electronic noise, particularly in the oscillator circuit, is crucial for maintaining time accuracy.

- I2C Interface Compatibility: Verify that the I2C interface of the PCF8563T/5,518 is compatible with the rest of the system, especially the microcontroller.

In conclusion, the PCF8563T/5,518 is an essential component in devices like digital watches, where precise time and date tracking is crucial. Designing circuits for the PCF8563T/5,518 involves careful consideration of power supply stability, noise reduction, and ensuring compatibility with the I2C interface.
