Name: PCF8523T/1,118
Brand: NXP USA Inc.
SKU: PCF8523T/1,118
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. PCF8523T/1,118

Part No.:: PCF8523T/1,118

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: PCF8523T/1,118.pdf

Description:: IC RTC CLK/CALENDAR I2C 8-SOIC

In Stock:: 3964

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCF8523T/1,118 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Clock/Calendar
Features:
Alarm, Leap Year, Watchdog Timer
MemorySize:
-
TimeFormat:
HH:MM:SS (12/24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
I²C, 2-Wire Serial
Voltage-Supply:
1.6V ~ 5.5V
Voltage-SupplyBattery:
1.8V ~ 5.5V
Current-Timekeeping(Max):
0.5µA @ 2V ~ 5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCF8523T/1,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCF8523T/1,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCF8523T/1,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCF8523T/1,118 information

Views：

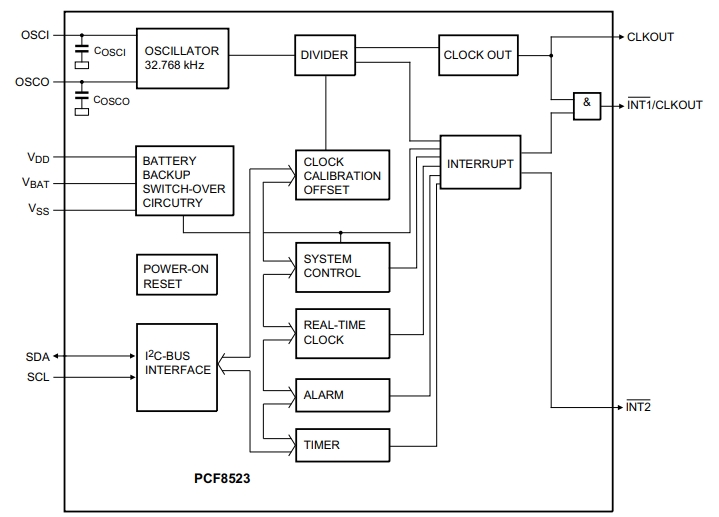

PCF8523T/1,118 Typical application Circuitry

PCF8523T 1,118

The PCF8523T/1,118 is a low-power consumption real-time clock (RTC) and calendar chip that offers complete binary-coded decimal (BCD) clock and calendar functionality. It's typically used in applications where accurate timekeeping is crucial.

Features of PCF8523T/1,118

1. Clock and Calendar: The PCF8523T/1,118 maintains seconds, minutes, hours, days, weekdays, months, and years with leap year compensation.

2. Alarm Function: It provides alarm capabilities allowing the user to set a daily or a single alarm.

3. Timing Precision: It includes a built-in oscillator circuit and is designed for high accuracy and low power consumption.

4. Communication Interface: It has an I²C-bus interface for straightforward integration into various systems.

Application Scenario: Data Logging System

In a data logging system, the PCF8523T/1,118 can be used to provide precise time stamps for each data entry. Here's a detailed guide for connecting this in a data logging system:

Circuit Connection Details

1. Power Supply (VCC - Pin 8, GND - Pin 4):

- Device Powering: Connect a stable power source to VCC (Pin 8) to power the PCF8523T/1,118. Connect GND (Pin 4) to the ground to complete the power circuit.

2. I²C Communication (SDA - Pin 6, SCL - Pin 5):

- Microcontroller Communication: Attach SDA (Pin 6) and SCL (Pin 5) to the corresponding I²C data and clock lines on the microcontroller. This enables communication between the PCF8523T/1,118 and the microcontroller for time data synchronization.

3. Interrupt (INT - Pin 7):

- Alarm and Timer Notification: Connect INT (Pin 7) to an interrupt pin on the microcontroller. This allows the PCF8523T/1,118 to notify the microcontroller when an alarm or a timer event occurs.

4. Backup Battery (Vbat - Pin 3):

- Maintaining Timekeeping: Connect a backup battery to Vbat (Pin 3) to ensure continuous timekeeping in the event of a main power failure.

5. Clock Output (CLKOUT - Pin 1):

- Frequency Output: (Optional) Connect CLKOUT (Pin 1) if a clock signal output is required for other parts of the system.

Design Considerations

When designing a circuit with the PCF8523T/1,118, consider the following:

1. Power Supply Integrity: Ensure that the power supply is stable and clean to maintain accurate timekeeping.

2. Backup Battery: Install a backup battery correctly to ensure continuous operation during power outages.

3. I²C Bus Integrity: Ensure that the I²C bus lines are correctly pulled up and that the bus is not overly loaded to maintain reliable communication.

4. Interrupt Handling: Effectively manage the interrupt signal to ensure that the microcontroller can appropriately respond to alarm or timer events.

By meticulously incorporating these considerations and understanding the functionalities and pin configurations of the PCF8523T/1,118, one can effectively integrate this RTC into sophisticated applications like a data logging system. The PCF8523T/1,118, with its precise timekeeping and alarm features, is an excellent choice for systems where accurate time stamps are critical.
