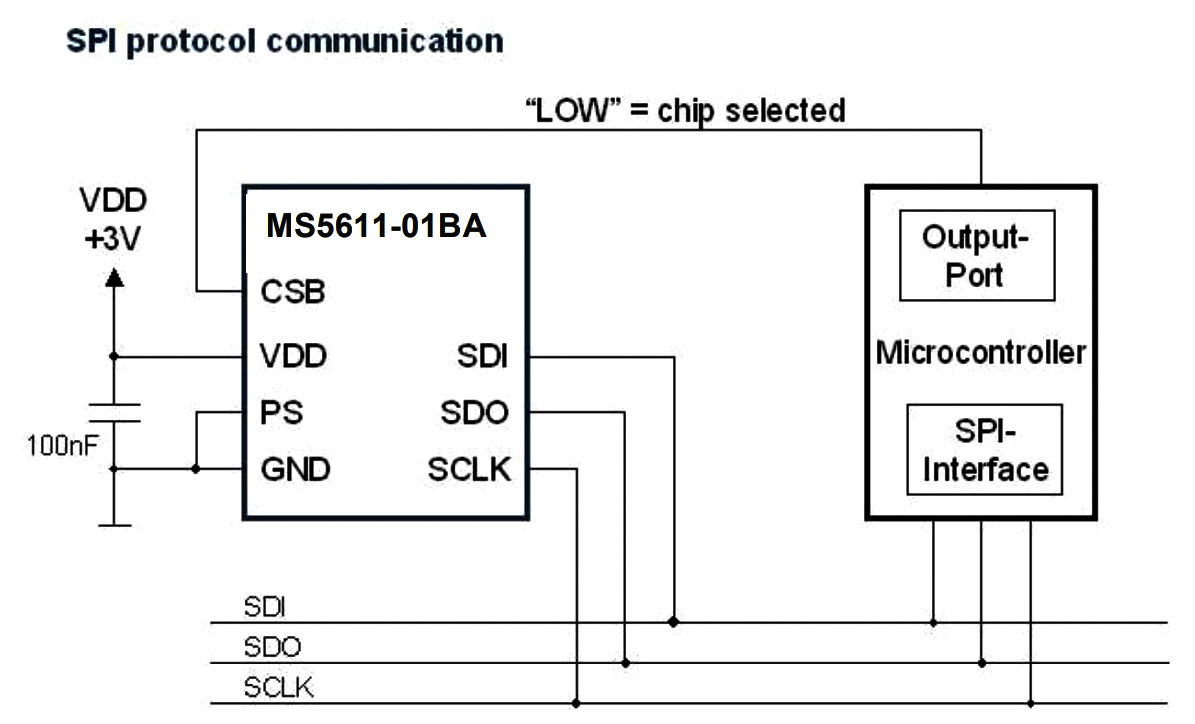

MS561101BA03-50 Typical application Circuitry

MS561101BA03-50

The MS561101BA03-50 is a high-precision atmospheric pressure sensor chip with applications in various fields requiring accurate and energy-efficient barometric pressure measurements.

Capabilities: It's renowned for its precision in measuring both atmospheric pressure and temperature, making it an asset in mobile and stationary meteorological applications, among others.

Utilization: One prominent application is within weather stations, where MS561101BA03-50 aids in providing precise and real-time atmospheric pressure data to enhance weather forecasting accuracy.

Features: This chip supports I2C and SPI communication protocols, operates within a temperature range of -40 to +85 °C, and requires a supply voltage ranging from 1.8V to 3.6V.

Circuit Connection for Weather Station

1. Power Supply Connection

- VDD: Connect the VDD pin directly to a 3.3V power source to energize the MS561101BA03-50. Ensure stable and uninterrupted power to guarantee optimal performance.

2. Grounding Mechanism

- GND: Establish a connection of the GND pin to the system's ground to form a complete and stable circuit.

3. Communication Protocol Selection

- CSB: The CSB pin should be tied to VDD or GND to activate the I2C or SPI communication protocol respectively, catering for flexibility in communication with microcontrollers.

4. Data Transmission Lines

- SDA/SCL or SDI/SCK: Depending on the chosen protocol, connect these pins to the corresponding pins on the microcontroller to facilitate accurate data transfer.

Considerations in Design

1. Decoupling Capacitors Installation

- Importance: Place decoupling capacitors close to the VDD and GND pins of the MS561101BA03-50 to mitigate power noise and ensure stable operation.

2. Environmental Protections

- Necessity: Given the outdoor placement of weather stations, incorporate protective measures like waterproof and dustproof casings to shield the chip from environmental elements.

3. Implementation of Communication Protocols

- Approach: Align the choice of communication protocol with the system's requirements, ensuring seamless integration and operation with other components.

In this setup, paying heed to power management, environmental protection, and the appropriate implementation of communication protocols is paramount. These factors influence the MS561101BA03-50's efficacy in capturing and relaying accurate atmospheric pressure data in real time.

MS561101BA03-50 information

MS561101BA03-50 Specifications

Package/Case:
8-SMD
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Applications:
Board Mount
PressureType:
Absolute
OperatingPressure:
0.15PSI ~ 17.4PSI (1kPa ~ 120kPa)
OutputType:
I²C, SPI
Output:
24 b
Accuracy:
±0.022PSI (±0.15kPa)
Voltage-Supply:
1.8V ~ 3.6V
PortSize:
-
PortStyle:
No Port
Features:
-
TerminationStyle:
SMD (SMT) Tab
MaximumPressure:
87.02PSI (600kPa)
OperatingTemperature:
-40°C ~ 85°C
