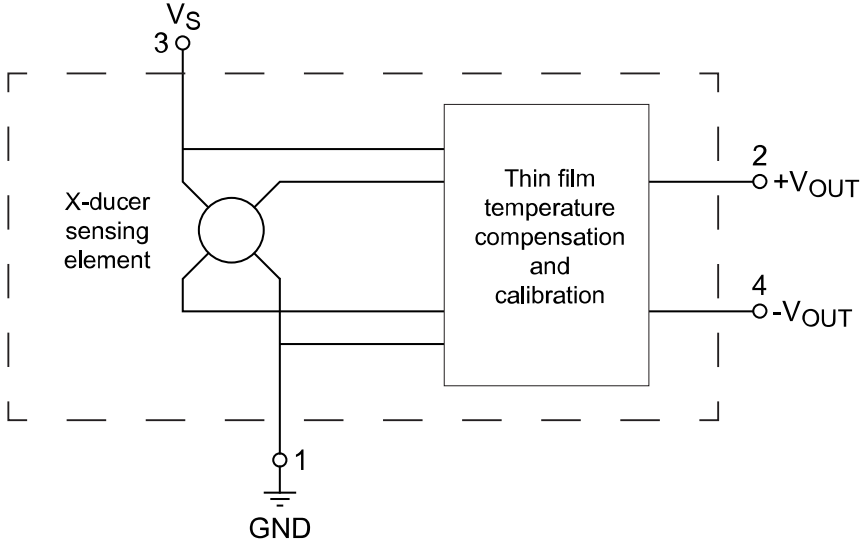

MPXM2010GST1 Typical application Circuitry

MPXM2010GST1

The MPXM2010GST1 is a high-precision pressure sensor from the renowned MPX series by NXP Semiconductors, designed to measure pressure differentials with exceptional accuracy. This series is celebrated for its integration of advanced piezoresistive transducer technology, making the MPXM2010GST1 an exemplary choice for a wide array of applications, from medical devices to HVAC systems and various types of industrial instrumentation.

1. Power Supply Considerations: The MPXM2010GST1 uses a power supply within the 10V range to function well. It is crucial to connect the power supply to the designated V+ pin while ensuring that the supply voltage does not exceed the recommended maximum to avoid damaging the sensor.

2. Grounding Strategy (V-): For optimal sensor performance and noise reduction, it's imperative to establish a reliable connection from the ground pin, labeled V-, to the system's ground plane. This ensures the sensor's operational stability and accuracy.

3. Pressure Input Ports: The MPXM2010GST1 features two ports for differential pressure input. Port P1 is designated for the positive pressure input, while Port P2 is connected to the reference pressure. This configuration is essential for the accurate measurement of pressure differentials across the sensor.

4. Output Voltage (Vout): The core functionality of the MPXM2010GST1 revolves around its ability to convert pressure variations into a corresponding analog voltage output, available at the Vout pin. This analog signal is proportional to the pressure differential applied between Ports P1 and P2, making it vital for interfacing with analog-to-digital converters in digital systems or direct monitoring in analog setups.

5. Temperature Compensation and Calibration: The MPXM2010GST1 is internally temperature compensated and calibrated for pressure sensitivity and offset, ensuring reliable performance across a specified temperature range. This inherent feature simplifies the integration process, as external temperature compensation is not required.

6. Bypass Capacitor for Noise Reduction: To enhance the MPXM2010GST1's performance in noisy environments, it is advisable to connect a bypass capacitor between the V+ and V- pins. This capacitor acts as a filter, reducing the impact of voltage spikes and electromagnetic interference on the sensor's accuracy.

Incorporating the MPXM2010GST1 into a design necessitates careful planning of the connections to each pin, tailored to the specific requirements of the application at hand. The differential pressure inputs, coupled with the precise voltage output, enable the MPXM2010GST1 to deliver accurate and reliable pressure measurements. The MPX series, with its advanced sensor technology, positions the MPXM2010GST1 as an ideal solution for applications demanding high accuracy and stability in pressure measurement.

MPXM2010GST1 information

MPXM2010GST1 Specifications

Package/Case:
5-SMD Module, Top Port
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
MPX2010
ProductStatus:
Active
Applications:
Board Mount
PressureType:
Vented Gauge
OperatingPressure:
1.45PSI (10kPa)
OutputType:
Wheatstone Bridge
Output:
0 mV ~ 25 mV (10V)
Accuracy:
±1%
Voltage-Supply:
10V ~ 16V
PortSize:
Male - 0.12 (2.97mm) Tube
PortStyle:
Barbless
Features:
Temperature Compensated
TerminationStyle:
Gull Wing
MaximumPressure:
10.88PSI (75kPa)
OperatingTemperature:
-40°C ~ 125°C
