NXP USA Inc. MPXM2202AS

Part No.:: MPXM2202AS

Manufacturer:: NXP USA Inc.

Package:: 5-SMD Module, Top Port

Datasheet:: MPXM2202AS.pdf

Description:: SENS PRESSURE 29 PSI MAX MPAK

In Stock:: 2008

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MPXM2202AS this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MPXM2202AS price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MPXM2202AS to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

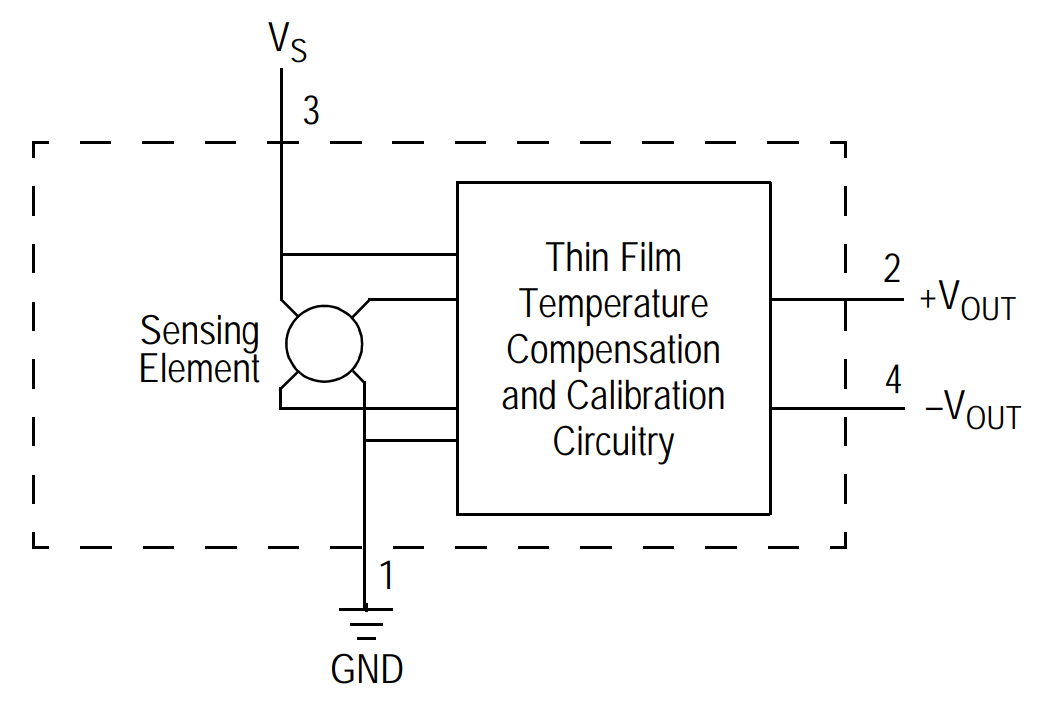

MPXM2202AS Typical application Circuitry

The MPXM2202AS is a silicon pressure sensor, designed by NXP Semiconductors. Its primary functionality is to provide precise and reliable pressure measurements.

Speaking about the usage contexts, the MPXM2202AS is widely utilized across different industries. From automotive systems for detecting manifold air pressure to medical applications such as patient monitoring systems, and even in household appliances to control water levels, this sensor proves to be versatile.

As for the distinctive features of the MPXM2202AS, it includes a pressure range of 0 to 200 kPa, an excellent temperature range (-40°C to +125°C), and a typical full-scale span of 40 mV. Additionally, it provides high overpressure capabilities, temperature compensation, and calibration for offset and sensitivity.

Considering an example of a water level control system in a household appliance, here's a brief guide on how to incorporate the MPXM2202AS:

1. Power Supply: Pin 1 (Vcc) is for the supply voltage, typically connected to a stable 5V source. The ground pin, pin 2, should be connected to the system's ground.

2. Pressure Input: The pressure port of the MPXM2202AS is connected to a tube that leads to the water tank, thus enabling the sensor to measure the water pressure which corresponds to the water level.

3. Analog Output: The output voltage, proportional to the applied pressure, is available on Pin 3 (Vout). For data interpretation, this can be fed into a microcontroller's analog-to-digital converter (ADC).

When designing a circuit with MPXM2202AS, it's essential to be aware of certain factors:

- Power Supply Stability: Supply voltage to the MPXM2202AS should be noise-free and stable to prevent inaccurate readings. - Overpressure Conditions: Overpressure situations could lead to sensor damage or false readings. Hence, it's crucial to have safeguards in place to prevent such situations.

- Temperature Considerations: Changes in temperature may influence the MPXM2202AS's performance. Therefore, the design should incorporate temperature compensation strategies for accurate pressure readings.

- Signal Conditioning: Depending on the use case, additional signal conditioning components, such as filters and amplifiers, may be required to handle the sensor's output.

In conclusion, the MPXM2202AS is an integral component for precise pressure measurement in various applications. This sensor can improve your system's accuracy and reliability with appropriate design considerations.

MPXM2202AS information

MPXM2202AS Specifications

Package/Case:
5-SMD Module, Top Port
Packaging:
Tube
Series:
MPX2202
ProductStatus:
Active
Applications:
Board Mount
PressureType:
Absolute
OperatingPressure:
29.01PSI (200kPa)
OutputType:
Wheatstone Bridge
Output:
0 mV ~ 40 mV (10V)
Accuracy:
-
Voltage-Supply:
10V ~ 16V
PortSize:
Male - 0.12 (2.97mm) Tube
PortStyle:
Barbless
Features:
Temperature Compensated
TerminationStyle:
Gull Wing
MaximumPressure:
58.02PSI (400kPa)
OperatingTemperature:
-40°C ~ 125°C
