Freescale Semiconductor MPX5100DP

Part No.:: MPX5100DP

Manufacturer:: Freescale Semiconductor

Package:: 6-SIP Module

Datasheet:

Description:: PEIZORESISTIVE SENSOR, DIFFERENT

In Stock:: 2792

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MPX5100DP Specifications

Package/Case:
6-SIP Module
Packaging:
Bulk
Series:
MPX5100
ProductStatus:
Active
Applications:
Board Mount
PressureType:
Differential
OperatingPressure:
14.5PSI (100kPa)
OutputType:
Analog Voltage
Output:
0.2 V ~ 4.7 V
Accuracy:
±2.5%
Voltage-Supply:
4.75V ~ 5.25V
PortSize:
Male - 0.19 (4.93mm) Tube, Dual
PortStyle:
Barbed
Features:
Temperature Compensated
TerminationStyle:
PC Pin
MaximumPressure:
58.02PSI (400kPa)
OperatingTemperature:
-40°C ~ 125°C

MPX5100DP this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MPX5100DP price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MPX5100DP to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MPX5100DP information

Views：

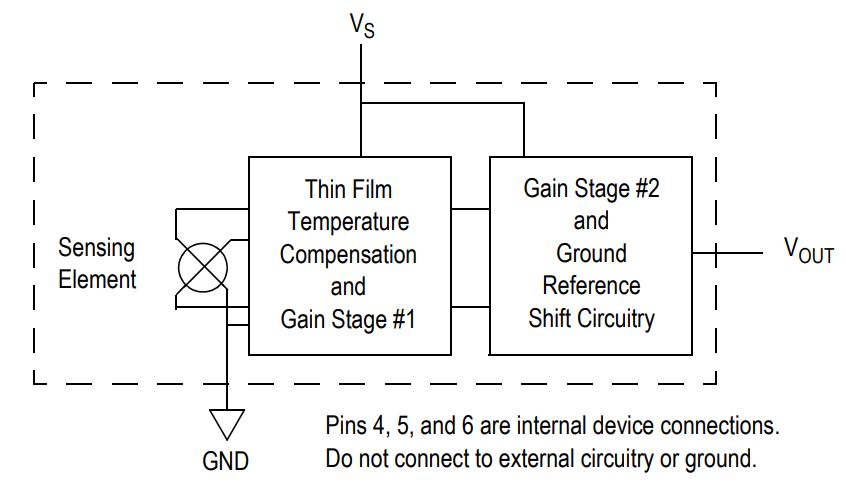

MPX5100DP Typical application Circuitry

MPX5100DP

An integrated silicon pressure sensor is the MPX5100DP. This device transforms a pressure input into an analog voltage output, functioning as a transducer.

Application Scenarios:

The MPX5100DP finds its use in a broad spectrum of applications, ranging from weather instrumentation to system controls. Typical uses include industrial controllers, household appliances, water level detection, and barometric pressure readings.

Main Parameters:

Boasting an impressive operating range, the MPX5100DP measures pressures from 0 to 100 kPa. It provides a voltage output that is directly proportional to the applied pressure. The device operates on a 5V supply, presenting an output voltage that spans from 0.2V to 4.7V corresponding to the pressure range. Further, the sensor exhibits a sensitivity of about 45 mV/kPa, and its robust design ensures minimal susceptibility to shock and vibration.

Circuit Connection:

For the sake of illustrating a practical application, let's explore how to set up the MPX5100DP in a water level detection system:

1. Power Supply Connection: The MPX5100DP requires a stable 5V supply for optimal operation. Connect pin 3 (V+) to a +5V source, and ground pin 2 (V-).

2. Output Reading: Pin 4 provides the analog voltage output corresponding to the sensed pressure. Connect this to the analog input of a microcontroller or an analog-to-digital converter to process and interpret the signal.

3. Pressure Input: The sensor's pressure ports, denoted by P1 and P2, must be correctly interfaced. For a water level detection scenario, connect P1 to the water source while leaving P2 open to the atmosphere. With this setup, the sensor is able to calculate the pressure difference between the water column and the surrounding atmosphere.

4. Decoupling Capacitor: Introduce a capacitor (around 0.1 µF) between V+ and V- (pins 3 and 2) to filter out potential noise from the power supply. The placement of this capacitor should be close to the MPX5100DP.

Design Considerations:

When deploying the MPX5100DP in a circuit, several factors warrant attention:

1. Protection from Overpressure: Ensure the pressure applied to the MPX5100DP does not exceed its maximum rating. Overpressurizing can permanently damage the sensor.

2. Electrical Noise: To glean accurate readings, minimize electrical noise in the circuit. Use shielded cables and proper grounding techniques.

3. Temperature Effects: Pressure readings can drift with temperature changes. Depending on the precision required, one might need to account for temperature effects in the software or use temperature compensation mechanisms.

4. Mechanical Mounting: The MPX5100DP should be suitably mounted to prevent any mechanical stress. It's essential to follow datasheet recommendations for mounting orientation, especially in liquid measurement scenarios, to avoid trapping air bubbles in the sensor.

In summation, the MPX5100DP stands as a reliable choice for pressure sensing needs across various domains. Its ease of interfacing, coupled with a broad operating range, makes it a go-to choice for designers. Keeping in mind some essential design considerations will ensure longevity and accurate performance from this nifty sensor.
