NXP USA Inc. MPX2100ASX

Part No.:: MPX2100ASX

Manufacturer:: NXP USA Inc.

Package:: 4-SIP Module

Datasheet:: MPX2100ASX.pdf

Description:: PRESSURE SENSOR GAUGE 4-SIP

In Stock:: 2819

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MPX2100ASX Specifications

Package/Case:
4-SIP Module
Packaging:
Tray
Series:
MPX2100
ProductStatus:
Obsolete
Applications:
Board Mount
PressureType:
Absolute
OperatingPressure:
14.5PSI (100kPa)
OutputType:
Wheatstone Bridge
Output:
0 mV ~ 40 mV (10V)
Accuracy:
-
Voltage-Supply:
10V ~ 16V
PortSize:
Male - 0.19 (4.92mm) Tube
PortStyle:
Barbed
Features:
Temperature Compensated
TerminationStyle:
PC Pin
MaximumPressure:
58.02PSI (400kPa)
OperatingTemperature:
-40°C ~ 125°C

MPX2100ASX this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MPX2100ASX price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MPX2100ASX to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MPX2100ASX information

Views：

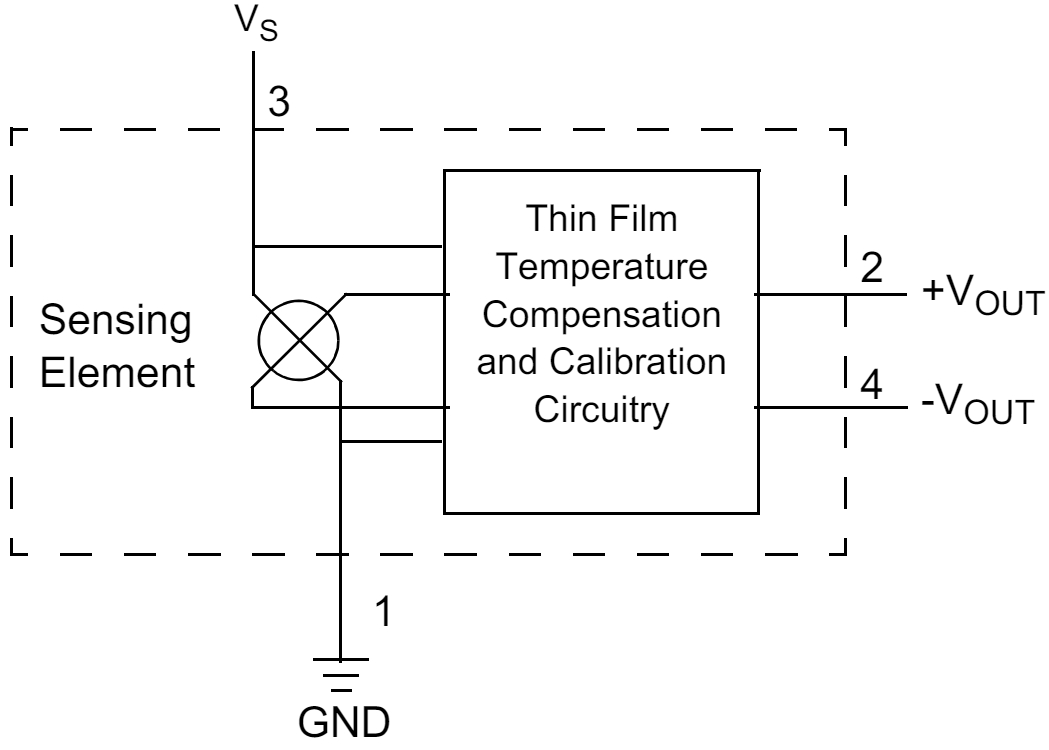

MPX2100ASX Typical application Circuitry
