Name: HMC659LC5
Brand: Analog Devices Inc.
SKU: HMC659LC5
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. HMC659LC5

Part No.:: HMC659LC5

Manufacturer:: Analog Devices Inc.

Package:: 32-TFCQFN Exposed Pad

Datasheet:: HMC659LC5.pdf

Description:: IC RF AMP GP 0HZ-15GHZ 32CSMT

In Stock:: 2294

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HMC659LC5 Specifications

Packaging:
Strip
Series:
-
ProductStatus:
Active
Frequency:
0Hz ~ 15GHz
P1dB:
27.5dBm
Gain:
19dB
NoiseFigure:
2.5dB
RFType:
General Purpose
Voltage-Supply:
8V
Current-Supply:
300mA
TestFrequency:
-
MountingType:
Surface Mount

HMC659LC5 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HMC659LC5 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HMC659LC5 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HMC659LC5 information

Views：

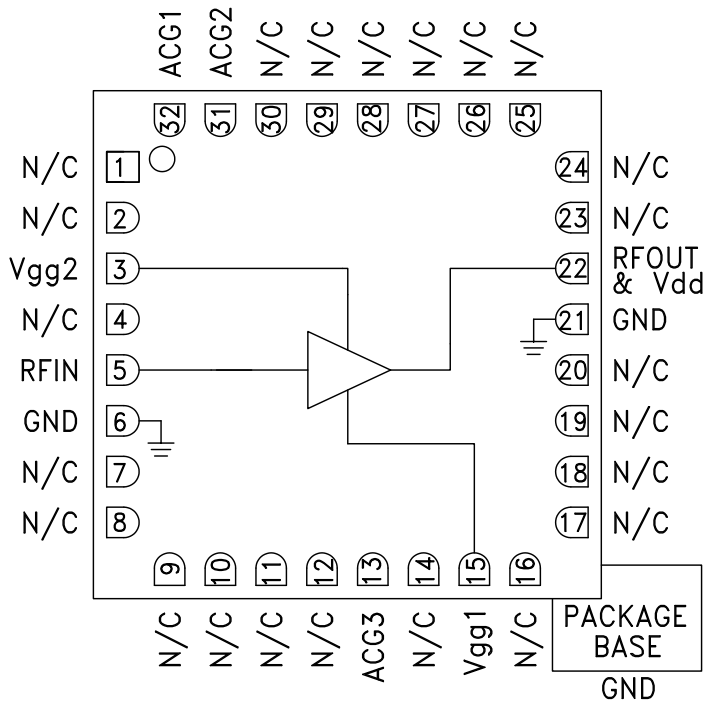

HMC659LC5 Typical application Circuitry

HMC659LC5

The HMC659LC5 is a distinguished member of the HMC series, specifically designed as a high-performance GaAs pHEMT MMIC Low Noise Amplifier (LNA). This device is engineered to provide exceptional noise figure performance and high gain, making it an ideal choice for demanding applications such as high-frequency telecommunications, radar systems, electronic warfare, and test and measurement equipment, where signal integrity and amplification are crucial.

1. Advanced LNA Characteristics: The essence of the HMC659LC5 lies in its ability to amplify weak RF signals with minimal added noise, thereby enhancing the signal-to-noise ratio of the system. Utilizing GaAs pHEMT technology, the HMC659LC5 achieves a balance between low noise figure and high gain across a broad frequency range, which is vital for maintaining the quality and integrity of the received signals in high-performance RF systems.

2. Pin Configuration and Integration Strategy: The HMC659LC5 is meticulously crafted with a set of pins, each allocated to specific functionalities essential for the LNA's operation. Among these are the RF input and output pins, which are critical for signal routing. The device also features a bias voltage pin (Vdd) that must be supplied with a stable voltage to power the LNA, and a ground (GND) pin that provides a stable reference point for the circuit.

3. Power Supply and Biasing Protocol: Proper biasing and power supply management are pivotal for the optimal performance of the HMC659LC5. This involves applying a stable and precise bias voltage to ensure the LNA operates within its specified performance range. The implementation of a clean and stable power supply, along with appropriate filtering, is crucial to prevent noise from degrading the LNA's performance.

4. Optimization of RF Connections: To maximize the performance of the HMC659LC5, special attention must be paid to the RF connections. This includes ensuring proper impedance matching at the RF input and output to minimize reflection losses and optimize signal transfer. High-quality RF connectors and transmission lines, along with a carefully designed PCB layout, are essential to maintain signal integrity and minimize losses.

5. Thermal Management for Operational Stability: Given the HMC659LC5's high-performance characteristics, effective thermal management is essential to ensure device reliability and longevity. The implementation of thermal management solutions, such as heat sinks or thermal pads, may be necessary to effectively dissipate heat generated by the device and maintain its performance within the specified temperature range.

6. Application-Specific Configurations: The versatility of the HMC659LC5 allows it to be adapted for various applications, from sensitive receivers in telecommunications systems to signal amplification in radar and electronic warfare systems. Depending on the specific application requirements, additional circuit elements such as DC blocking capacitors, bias tees, or matching networks might be integrated to customize the LNA's performance to the desired specifications.

In summary, the HMC659LC5 is a high-performance GaAs pHEMT MMIC Low Noise Amplifier within the HMC series, designed to meet the stringent requirements of advanced RF systems. Implementing this LNA requires a comprehensive understanding of its pin functions, precise biasing and power supply considerations, careful RF path design, and thoughtful thermal management. By adhering to these guidelines, engineers can effectively leverage the advanced capabilities of the HMC659LC5 to enhance the performance and reliability of a wide range of high-frequency applications.
