Analog Devices Inc. HMC609LC4TR-R5

The HMC609LC4TR-R5 is a distinguished member of the gallium arsenide (GaAs) pseudomorphic high-electron-mobility transistor (pHEMT) monolithic microwave integrated circuit (MMIC) amplifiers, designed for a wide array of RF and microwave applications. This particular model is packaged in a leadless QFN 4x4 mm package, optimized for signal amplification across various frequencies. It is part of a series that emphasizes high efficiency, broad bandwidth, and excellent gain performance, catering to demands in sectors such as telecommunications, space, and military. The HMC609LC4TR-R5 stands out for its ability to provide consistent, high-quality amplification, making it a critical component in enhancing the performance of sophisticated electronic systems.

1. Power Supply Configuration and Voltage Requirements: The HMC609LC4TR-R5 operates with a power supply voltage typically ranging from +5V to +6V, demonstrating its compatibility with standard electronic systems while ensuring efficient power usage. The device's design includes specific pins for the power supply connection, marked as Vdd, alongside multiple ground (GND) pins to ensure a robust and reliable ground return path. This arrangement highlights the importance of a stable power supply in maintaining the amplifier's optimal operational integrity and performance.

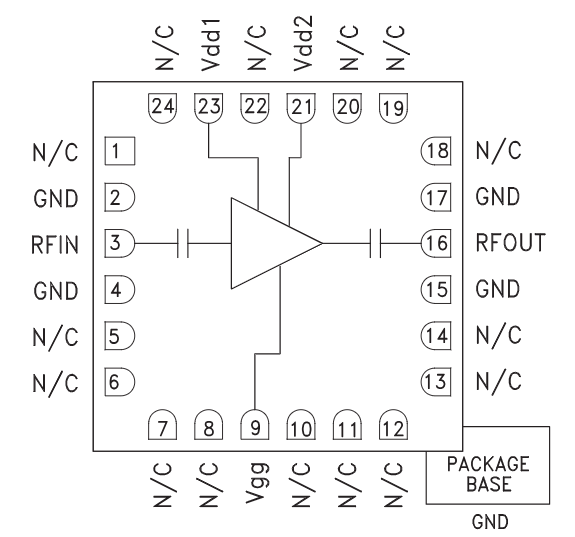

2. Pin-by-Pin Circuit Integration Detailing: Integration of the HMC609LC4TR-R5 into electronic circuits is facilitated by its well-defined pin configuration, which supports straightforward connections for power, signal input, and output. The device features RF input and output pins, designated for the transmission and reception of RF signals, respectively. Vdd pins are provided for connection to the power supply, and several GND pins are strategically positioned around the perimeter of the package to enhance signal integrity and minimize noise. This precise pin arrangement aids in the seamless embedding of the HMC609LC4TR-R5 into a wide range of electronic applications, ensuring high performance and reliability.

3. Innovative Approaches to Thermal Management: Given the HMC609LC4TR-R5's high-frequency operation and power amplification, it generates heat that must be effectively managed to preserve device performance and longevity. Implementing advanced thermal management techniques, such as the use of conductive heat sinks or thermal interface materials directly connected to the device's package, ensures efficient heat dissipation. Proper PCB design, incorporating thermal vias beneath the package, can further enhance thermal conductivity away from the device, maintaining it within its specified temperature range for reliable operation.

4. Comprehensive Strategy for System-Wide Integration: The incorporation of the HMC609LC4TR-R5 into larger system designs requires careful consideration of both its electrical and mechanical characteristics. This includes ensuring compatibility with other system components, particularly with respect to impedance matching and minimizing reflection at the RF input and output ports. Additionally, careful planning of the device's placement within the system to mitigate potential interference from other components is crucial. This level of consideration ensures the HMC609LC4TR-R5's capabilities are fully harnessed, contributing to the system's overall performance and effectiveness.

5. Optimization of Signal Transmission Paths: Optimizing the signal path for the HMC609LC4TR-R5 is essential for preserving signal quality and maximizing amplifier performance. This involves minimizing the length of RF signal paths to reduce potential signal degradation, employing high-quality transmission lines, and ensuring that the PCB layout is designed to support optimal signal integrity. Attention to these aspects is critical in preventing signal loss and ensuring that the HMC609LC4TR-R5 operates at its highest capacity, delivering amplified signals with minimal distortion or degradation.

6. Purity of the Power Supply as a Cornerstone for Performance: The functionality and performance of the HMC609LC4TR-R5 are profoundly influenced by the quality of its power supply. Implementing stringent power supply management practices, including the application of filtering techniques and the strategic use of bypass capacitors near the Vdd pins, is imperative. These measures effectively minimize power supply noise, ensuring that the HMC609LC4TR-R5 receives a clean and stable voltage, which is paramount for achieving optimal amplification results in demanding RF and microwave applications.

The HMC609LC4TR-R5 is an exemplary showcase of cutting-edge GaAs pHEMT MMIC amplifier technology, designed with precision to meet the high standards required in today's advanced RF and microwave systems. Through diligent attention to power supply requirements, detailed pin configuration, thermal management, system integration strategies, signal path optimization, and power supply purity, the HMC609LC4TR-R5 sets a benchmark for high-performance amplification, underscoring its vital role in pushing the boundaries of electronic system capabilities.
