What is the Additional Feature ?

Name: HMC3653LP3BE
Brand: Analog Devices Inc.
SKU: HMC3653LP3BE
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. HMC3653LP3BE

Part No.:: HMC3653LP3BE

Manufacturer:: Analog Devices Inc.

Package:: 12-VFQFN Exposed Pad

Datasheet:: HMC3653LP3BE.pdf

Description:: IC RF AMP GP 7GHZ-15GHZ 12QFN

In Stock:: 2603

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HMC3653LP3BE Specifications

Packaging:
Strip
Series:
-
ProductStatus:
Active
Frequency:
7GHz ~ 15GHz
P1dB:
15dBm
Gain:
15dB
NoiseFigure:
4dB
RFType:
General Purpose
Voltage-Supply:
5V
Current-Supply:
40mA
TestFrequency:
-
MountingType:
Surface Mount

HMC3653LP3BE this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HMC3653LP3BE price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HMC3653LP3BE to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HMC3653LP3BE information

Views：

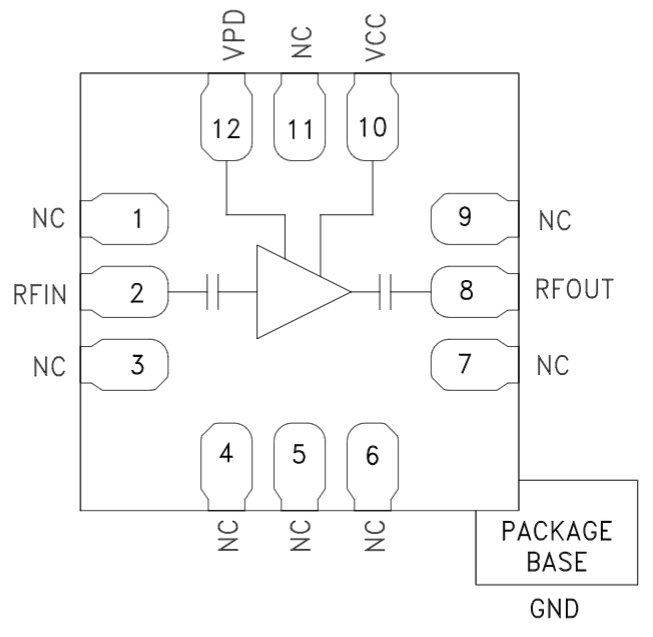

HMC3653LP3BE Typical application Circuitry

HMC3653LP3BE

HMC3653LP3BE is a GaAs pHEMT MMIC Low Noise Amplifier (LNA) developed by Analog Devices. It is designed for high-frequency applications, offering excellent noise figure and gain performance over a broad frequency range. This makes it particularly suitable for applications such as radar systems, satellite communications, RF test equipment, and telecommunications infrastructure where high linearity and low noise amplification of RF signals are critical.

Application Scenario: Satellite Communications Receiver

In satellite communications, the HMC3653LP3BE can be used as a front-end LNA in the receiver section to amplify weak signals received from the satellite with minimal noise addition, thereby improving the signal-to-noise ratio (SNR) and overall system sensitivity.

Low Noise Figure

- One of the most important parameter features of the HMC3653LP3BE is its low noise figure, which is essential for preserving the integrity of the received signal.

- High Gain: Provides significant signal amplification, essential for enhancing weak signals in receiver applications.

- Broad Frequency Range: It can function across a wide range of frequencies, which makes it adaptable to different communication bands.

- High Linearity: Ensures minimal distortion in the amplified signal, which is vital for maintaining signal fidelity in communication systems.

Satellite Communications Receiver Circuit Design

Integrating the HMC3653LP3BE into a satellite communications receiver involves detailed attention to several critical design aspects:

1. Power Supply Connection: To guarantee ideal LNA performance, connect the HMC3653LP3BE's Vdd pin to a reliable power source and make sure the voltage requirements are met.

2. Input Signal Coupling: Couple the incoming satellite RF signal to the RF input pin of the HMC3653LP3BE through a DC blocking capacitor to prevent any DC bias from affecting the LNA.

3. Output Signal Coupling: Similarly, couple the amplified RF signal from the RF output pin to the subsequent mixer or demodulator stage using a DC blocking capacitor, ensuring clean signal transmission.

4. Biasing Configuration: Properly configure the biasing network for the HMC3653LP3BE, using bias tees and RF chokes to supply the necessary DC bias without impacting the RF performance.

5. Decoupling and Filtering: Implement decoupling capacitors close to the power supply pins and introduce filtering on the supply lines to minimize noise and ensure stable operation of the HMC3653LP3BE.

Design Considerations

When designing a circuit with the HMC3653LP3BE, several critical factors must be considered:

- Thermal Management: Implement effective heat dissipation strategies for the HMC3653LP3BE to ensure reliable operation and longevity, especially in high-power applications.

- Impedance Matching: By designing impedance matching networks at both the input and output, you may maximize power transfer and minimize echoes while also enhancing overall system performance.

- Signal Integrity: Maintain signal integrity by optimizing the PCB layout, minimizing trace lengths for high-frequency paths, and employing proper grounding techniques to reduce noise and interference.

- Component Selection: Choose high-quality, compatible passive components for the DC blocking capacitors, biasing network, and decoupling capacitors to ensure the HMC3653LP3BE operates within its optimal performance range.

By carefully addressing these design principles, the HMC3653LP3BE can be effectively utilized in satellite communications receivers, providing the necessary low-noise amplification of weak signals to improve the receiver's sensitivity and overall system performance.
