ON Semiconductor HCPL2631SDM

Part No.:: HCPL2631SDM

Manufacturer:: ON Semiconductor

Package:: 8-SMD, Gull Wing

Datasheet:: HCPL2631SDM.pdf

Description:: OPTOISO 5KV 2CH OPEN COLL 8SMD

In Stock:: 3702

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL2631SDM Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
NumberofChannels:
2
Inputs-Side1/Side2:
2/0
Voltage-Isolation:
5000Vrms
CommonModeTransientImmunity(Min):
5kV/µs
InputType:
DC
OutputType:
Open Collector
Current-Output/Channel:
25 mA
DataRate:
10Mbps
PropagationDelaytpLH/tpHL(Max):
75ns, 75ns
Rise/FallTime(Typ):
30ns, 10ns
Voltage-Forward(Vf)(Typ):
1.45V
Current-DCForward(If)(Max):
30mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 110°C
MountingType:
Surface Mount

HCPL2631SDM this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL2631SDM price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL2631SDM to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HCPL2631SDM information

Views：

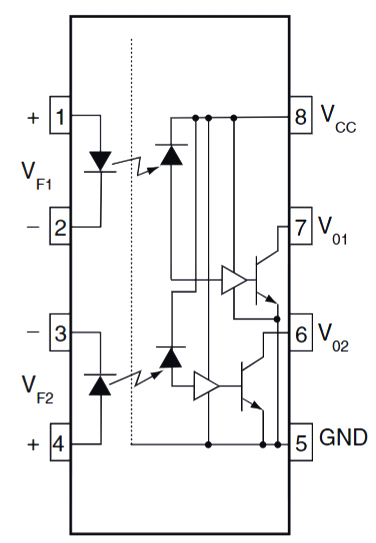

HCPL2631SDM Typical application Circuitry

HCPL2631SDM

HCPL2631SDM is a high-speed digital isolator widely used in electrical equipment to achieve signal isolation and electrical insulation, protecting sensitive circuits from high voltage or electrical noise. It is particularly suitable for digital communication interfaces requiring electrical isolation, such as industrial control systems, data communication equipment, and power systems.

Application Scenarios

HCPL2631SDM is highly useful in various application scenarios, for instance, as an isolator between input and output sides in DC-DC converters, or in communication interfaces like RS232, RS485, etc., to isolate data and control lines.

Parameter Features

HCPL2631SDM possesses several key parameter features, including:

- High-Speed Data Transmission: Capable of supporting data rates up to 10Mbps.

- High Isolation Voltage: Offers a one-minute isolation voltage up to 3750Vrms, suitable for high-voltage applications.

- Bidirectional Communication: Provides 2 channels, supporting bidirectional data communication.

- Low Power Consumption: Maintains low power consumption while sustaining high performance.

Specific Circuit Connection - RS485 Communication Interface

In an RS485 communication interface application, HCPL2631SDM can be used to isolate data lines, protecting the MCU (Microcontroller Unit) from electrical noise interference. Here is the specific connection method:

- Connection from MCU to HCPL2631SDM: The MCU's TX (transmit) pin is connected to the input side of HCPL2631SDM, and the output side of HCPL2631SDM is connected to the MCU's RX (receive) pin.

- Power Connection: HCPL2631SDM requires an independent power supply, typically 5V. Ensure that the power supplies for the isolated and non-isolated sides are completely independent.

- Ground Isolation: Ensure that the ground lines for the isolated and non-isolated sides are also isolated to guarantee complete electrical isolation.

- Termination Resistors: Add termination resistors (typically 120 ohms) at both ends of the RS485 communication line to reduce reflections and improve signal quality.

Considerations When Designing Circuits

When designing circuits using HCPL2631SDM, the following issues should be considered:

- Isolation Level: Choose the appropriate isolation voltage level according to application requirements to ensure safety.

- Data Rate: Considering the maximum data rate supported by HCPL2631SDM, ensure it meets your communication needs.

- Power Management: Ensure the power supplies for the isolated and non-isolated sides are stable and independent to avoid power noise affecting signal quality.

- Wiring and Grounding Design: Layout the circuit board properly, ensuring that the design of signal and ground lines reduces interference and improves signal integrity.

Through the detailed explanation above, we can see that when designing circuits using HCPL2631SDM, multiple aspects need to be comprehensively considered to ensure the reliability and performance of the circuit.
