Broadcom Limited HCPL-060L-500E

Part No.:: HCPL-060L-500E

Manufacturer:: Broadcom Limited

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: HCPL-060L-500E.pdf

Description:: OPTOISO 3.75KV OPN COLLECTOR 8SO

In Stock:: 3403

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL-060L-500E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL-060L-500E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL-060L-500E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

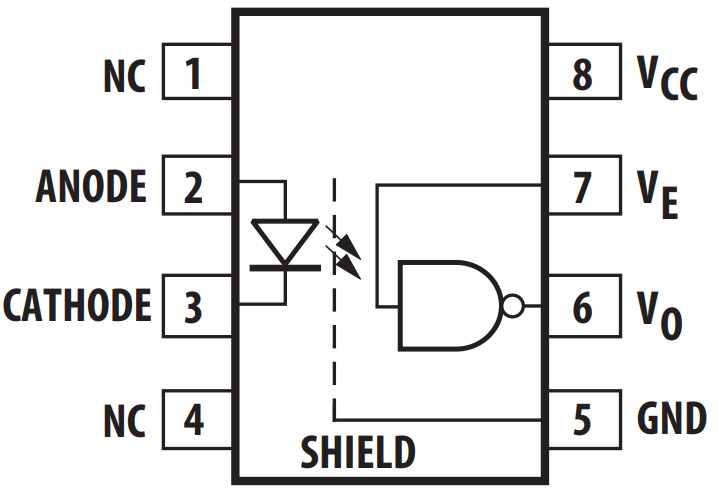

HCPL-060L-500E Typical application Circuitry

HCPL-060L-500E

The HCPL-060L-500E is a component of the HCPL series, known for its low-power, high-speed optocouplers. These devices are specifically designed to provide electrical isolation between input and output circuits while enabling fast data transmission, making them ideal for a variety of applications including digital communication systems, signal isolation in power systems, and microprocessor interfacing where power efficiency and high-speed operation are critical.

1. Low-Power, High-Speed Optocoupler Characteristics: The essence of the HCPL-060L-500E lies in its ability to transmit signals between two isolated circuits at high speeds with minimal power consumption. This is achieved through an LED on the input side that converts electrical signals into light, which is then transmitted across an isolation barrier and detected by a photodetector on the output side, converting it back into an electrical signal.

2. Pin Configuration and Connectivity Details: The HCPL-060L-500E is meticulously designed with a series of pins dedicated to its optocoupler functionality. Typically, these include Anode (A) and Cathode (C) pins for the input LED, pins for the power supply (Vcc) and ground (GND) on the output side to power the photodetector circuit, and output pins that deliver the isolated electrical signal. Correctly connecting these pins is essential for the device's operation and the integrity of signal transmission.

3. Power Supply and Input Signal Connection: Optimal performance of the HCPL-060L-500E requires a stable power supply to the Vcc pin, ensuring the photodetector circuit operates within its specified voltage range. The input signal should be connected to the Anode and Cathode, properly biasing the internal LED. The GND pin should be connected to the system ground to provide a reference point and complete the circuit.

4. Output Signal Management: The output side of the HCPL-060L-500E is responsible for converting the received light signal back into an electrical signal, suitable for further processing by subsequent stages in the circuit. Proper interfacing with the output, potentially including pull-up resistors or connection to input stages of the next circuit, is crucial for maintaining signal fidelity.

5. Thermal Management for Device Stability: Despite the low-power design of the HCPL-060L-500E, managing thermal conditions is important for ensuring the device's stability and longevity. Effective thermal contact with the PCB and consideration of additional heat dissipation methods can help maintain the optocoupler within its operational temperature range, especially in high-speed or continuous-operation applications.

6. Integration into Electronic Systems: The HCPL-060L-500E's low power consumption and high-speed capabilities make it suitable for various electronic systems requiring signal isolation. Depending on the specific application, additional components such as bypass capacitors for noise reduction, protective diodes for input voltage protection, or impedance matching elements might be integrated to ensure seamless operation within the system and optimal performance.

In summary, the HCPL-060L-500E is a low-power, high-speed optocoupler from the HCPL series, designed to facilitate efficient electrical isolation and signal transmission in electronic systems. Implementing this optocoupler involves a deep understanding of its pin functions, ensuring a stable power supply and correct input signal biasing, careful handling of the output signal, strategic thermal management, and customization for specific system requirements. By adhering to these guidelines, engineers can effectively utilize the HCPL-060L-500E to enhance the safety, reliability, and performance of systems requiring high-speed data isolation with minimal power consumption.

HCPL-060L-500E information

HCPL-060L-500E Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
NumberofChannels:
1
Inputs-Side1/Side2:
1/0
Voltage-Isolation:
3750Vrms
CommonModeTransientImmunity(Min):
10kV/µs
InputType:
DC
OutputType:
Open Collector, Schottky Clamped
Current-Output/Channel:
50 mA
DataRate:
15MBd
PropagationDelaytpLH/tpHL(Max):
75ns, 75ns
Rise/FallTime(Typ):
24ns, 10ns
Voltage-Forward(Vf)(Typ):
1.5V
Current-DCForward(If)(Max):
20mA
Voltage-Supply:
2.7V ~ 3.6V, 4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount
