Broadcom Limited HCPL-0630-000E

Part No.:: HCPL-0630-000E

Manufacturer:: Broadcom Limited

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: HCPL-0630-000E.pdf

Description:: OPTOISO 3.75KV 2CH OPEN COLL 8SO

In Stock:: 2192

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL-0630-000E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL-0630-000E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL-0630-000E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

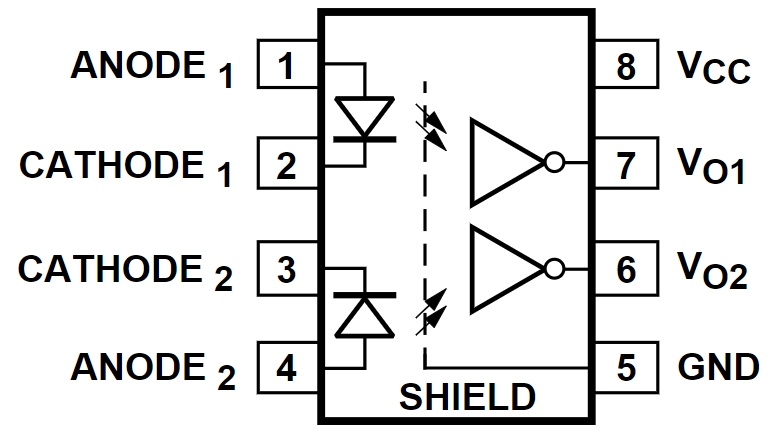

HCPL-0630-000E Typical application Circuitry

HCPL-0630-000E

HCPL-0630-000E is a high-speed optocoupler designed to facilitate electrical isolation in digital communication systems while enabling high-speed data transfer. This device is particularly suitable for applications where signal integrity and isolation from high voltage transients and noise are crucial.

Application Scenarios

The HCPL-0630-000E is widely used in digital isolation for ADCs and DACs, isolated SPI/I2C communication, motor control interfaces, and in systems where interfacing between different voltage domains is required, such as in industrial automation, data communication systems, and medical equipment.

Parameter Features

Key features of the HCPL-0630-000E include:

- High Data Rate: Supports data transmission speeds up to 10 Mbps, suitable for high-speed digital communication.

- Robust Isolation Voltage: Offers 3750 Vrms of isolation, providing significant protection against electrical transients.

- Low Power Consumption: Optimized for low power operation, making it ideal for power-sensitive applications.

- CMOS/TTL Compatibility: Designed to interface directly with CMOS and TTL logic levels, allowing for easy integration with a wide range of digital systems.

Specific Circuit Connection - Isolated Digital Communication Interface

In an application involving isolated digital communication between a microcontroller and a peripheral device, the HCPL-0630-000E can be used to isolate the data lines, ensuring protection against noise and voltage transients.

- Microcontroller to HCPL-0630-000E Connection: Connect the microcontroller's TX (transmit) data line to pin 1 (Anode) of the HCPL-0630-000E, and connect pin 2 (Cathode) to the microcontroller's ground. This configuration isolates the TX signal from the microcontroller to the peripheral.

- Power Supply Configuration: Supply the HCPL-0630-000E with a stable 5V power source connected to pin 8 (Vcc), and ground pin 5 (GND). Ensuring a clean and stable power supply is crucial to avoid signal distortion and maintain isolation integrity.

- HCPL-0630-000E to Peripheral Device Connection: Link pin 6 (VO) of the HCPL-0630-000E to the RX (receive) input of the peripheral device, transmitting the isolated TX signal from the microcontroller to the peripheral.

- Isolation and Grounding Strategy: Implement separate ground planes for the input (microcontroller side) and output (peripheral side) to enhance electrical isolation. It's essential to ensure that the input and output grounds are not electrically connected to maintain signal integrity and isolation effectiveness.

Circuit Design Considerations

When incorporating the HCPL-0630-000E into a circuit, several important factors must be considered:

- Isolation Efficiency: Verify that the HCPL-0630-000E's isolation voltage rating meets the application's requirements, especially in environments with high electrical noise or potential voltage spikes.

- Data Rate Compatibility: Ensure the HCPL-0630-000E can support the required data rate for digital communication without introducing significant latency or signal distortion.

- Power Supply Quality: The HCPL-0630-000E requires a clean, stable power source to perform optimally, emphasizing the need for a noise-free power supply.

- Thermal Management: Consider the thermal performance of the HCPL-0630-000E, especially in applications with high data rates or ambient temperatures, to prevent overheating and ensure reliable operation.

Designing with the HCPL-0630-000E demands a thorough understanding of the device's specifications and the specific demands of the application, ensuring a robust and effective implementation that provides the necessary isolation and signal integrity.
