Application Scenario: Digital Signal Isolation in a Microcontroller-Based System
A notable application for the HCPL-0600-000E involves isolating digital signals between a microcontroller (MCU) and external devices or circuits that operate at different voltage levels, ensuring both signal integrity and electrical safety.
Circuit Connection Details

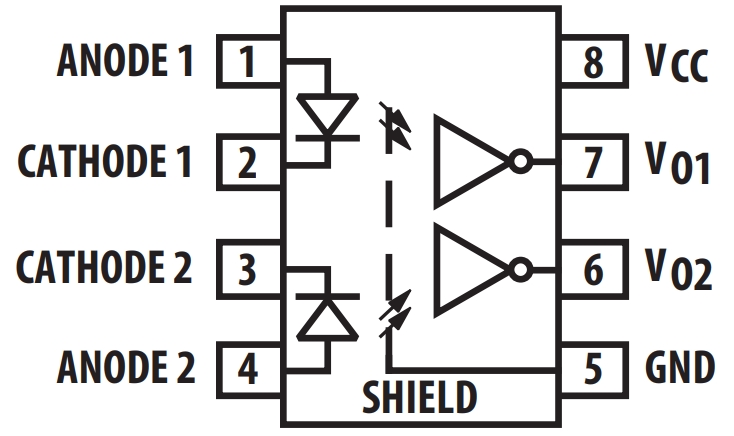

- Digital Input Signal Isolation: Interface the digital output signal from the MCU to the input of the HCPL-0600-000E. This involves connecting the digital output pin of the MCU to pin 1 (Anode) of the HCPL-0600-000E, and pin 2 (Cathode) to the MCU ground through a current-limiting resistor, activating the HCPL-0600-000E's internal LED.
- Independent Power Supplies: The HCPL-0600-000E requires distinct power supplies for its input (pin 8, Vcc1) and output (pin 5, Vcc2) sides to maintain proper electrical isolation. Ensure these power supplies are stable and filtered to mitigate noise.
- Output Connection to External Devices: Connect the output of the HCPL-0600-000E (pin 6, VO) to the input of the external device or circuit, conveying the isolated digital signal while maintaining electrical safety.
- Isolation and Grounding Considerations: Maintain a clear separation between the ground of the input side (pin 2 of HCPL-0600-000E) and the ground of the output side (pin 5 of HCPL-0600-000E) to ensure the effectiveness of the isolation barrier and to prevent ground loop issues.
Design Considerations
- Isolation Voltage Suitability: Confirm that the isolation voltage rating of the HCPL-0600-000E meets the application's requirements, safeguarding the system against high voltage differentials across the isolation barrier.
- Data Transmission Speed: Check that the HCPL-0600-000E supports the required data transmission speed without introducing unacceptable propagation delay, which could impact system performance.
- Operating Conditions: Factor in the operating temperature range and environmental conditions to ensure the HCPL-0600-000E functions reliably over its intended operational life.
- Noise Immunity: In designing the circuit and PCB layout, prioritize strategies to minimize noise, especially in the signal path through the HCPL-0600-000E, utilizing proper grounding, shielding, and filtering techniques to enhance system robustness.
Integrating the HCPL-0600-000E for digital signal isolation in a microcontroller-based system effectively shields the MCU from potential electrical hazards, while ensuring reliable communication with external high-voltage devices or circuits.
