Broadcom Limited HCPL-0630

Part No.:: HCPL-0630

Manufacturer:: Broadcom Limited

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: HCPL-0630.pdf

Description:: OPTOISO 3.75KV 2CH OPEN COLL 8SO

In Stock:: 226

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL-0630 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL-0630 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL-0630 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

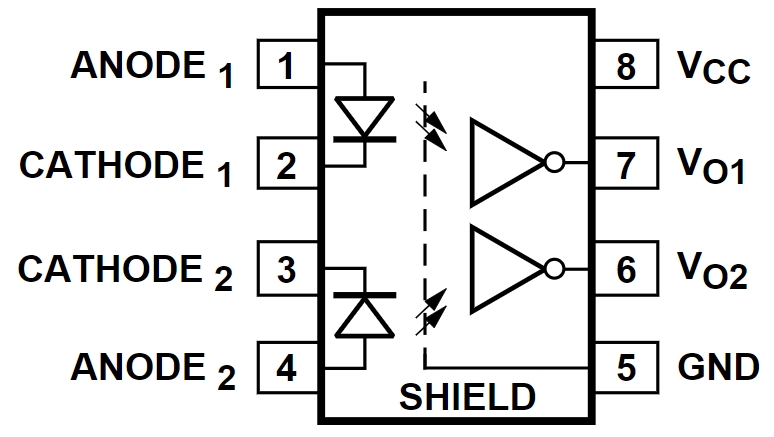

HCPL-0630 Typical application Circuitry

HCPL-0630

HCPL-0630 is a high-speed optocoupler that integrates a photodiode, a high-speed amplifier, and a photodetector within a single package. It is designed to provide electrical isolation while allowing high-speed data transmission, making it an ideal choice for digital signal isolation, especially in environments where electrical noise and interference are concerns.

Application Scenarios

The HCPL-0630 is commonly used in various applications such as digital isolation for ADCs and DACs, isolated communication links, isolated bus drivers, and in systems that require the transmission of high-speed signals across an electrical isolation barrier, such as in industrial automation, data communication, and power supply systems.

Features of Parameters

The HCPL-0630 has several noteworthy features, such as:

- High Data Rate: Data can be transmitted at up to 10 Mbps.

- High Isolation Voltage: Offers an isolation voltage of 3750 Vrms, providing significant protection against voltage spikes and surges.

- Low Power Consumption: Designed with low power consumption in mind, this device is appropriate for applications that are power-sensitive.

- CMOS/TTL Compatibility: Designed to interface directly with CMOS and TTL logic levels, facilitating easy integration with digital systems.

Specific Circuit Connection - Isolated SPI Communication Interface

In an application involving the isolation of an SPI (Serial Peripheral Interface) bus, the HCPL-0630 can be used to isolate the communication between an SPI master (e.g., microcontroller) and SPI slave devices, ensuring electrical isolation and signal integrity.

- Microcontroller to HCPL-0630 Connection: Connect the SPI master's MOSI (Master Out Slave In) signal to pin 1 (Anode) of the HCPL-0630, and connect pin 2 (Cathode) to ground. This setup isolates the MOSI signal from the master to the slave.

- Power Supply Configuration: Connect a stable 5V power supply to pin 8 (Vcc) of the HCPL-0630, and ground pin 5 (GND). To prevent signal distortion, it is crucial to make sure the power supply is stable and clean.

- HCPL-0630 to SPI Slave Connection: Connect pin 6 (VO) of the HCPL-0630 to the MOSI input of the SPI slave device. This configuration transmits the isolated signal from the master to the slave.

- Isolation and Grounding Strategy: Implement separate ground planes for the input (microcontroller side) and output (SPI slave side) to maximize electrical isolation. To preserve signal integrity, it is essential to make sure that the input and output grounds are not electrically linked.

Circuit Design Considerations

When designing circuits with the HCPL-0630, several important factors must be considered:

- Isolation Requirement: Verify that the isolation voltage of the HCPL-0630 meets the application's needs, especially in environments with high electrical noise or potential voltage spikes.

- Data Rate Compatibility: Ensure the HCPL-0630 can support the required data rate for the SPI communication without introducing unacceptable latency or signal distortion.

- Power Supply Quality: The HCPL-0630 requires a clean and stable power source to perform optimally, highlighting the importance of a noise-free power supply.

- Thermal Management: Consider the thermal performance of the HCPL-0630, especially in applications involving high data rates or high ambient temperatures, to prevent overheating and ensure reliable operation.

Incorporating the HCPL-0630 into a design demands a comprehensive understanding of the device's capabilities and the application's specific requirements, ensuring a reliable and effective implementation that provides the necessary isolation and signal integrity.

HCPL-0630 information

HCPL-0630 Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofChannels:
2
Inputs-Side1/Side2:
2/0
Voltage-Isolation:
3750Vrms
CommonModeTransientImmunity(Min):
5kV/µs
InputType:
DC
OutputType:
Open Collector, Schottky Clamped
Current-Output/Channel:
50 mA
DataRate:
10MBd
PropagationDelaytpLH/tpHL(Max):
100ns, 100ns
Rise/FallTime(Typ):
24ns, 10ns
Voltage-Forward(Vf)(Typ):
1.5V
Current-DCForward(If)(Max):
15mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount
