onsemi HCPL2630WV

Part No.:: HCPL2630WV

Manufacturer:: onsemi

Package:: 8-DIP (0.400, 10.16mm)

Datasheet:: HCPL2630WV.pdf

Description:: OPTOISO 2.5KV 2CH OPEN COLL 8DIP

In Stock:: 2322

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL2630WV Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
NumberofChannels:
2
Inputs-Side1/Side2:
2/0
Voltage-Isolation:
2500Vrms
CommonModeTransientImmunity(Min):
10kV/µs (Typ)
InputType:
DC
OutputType:
Open Collector
Current-Output/Channel:
50 mA
DataRate:
10Mbps
PropagationDelaytpLH/tpHL(Max):
75ns, 75ns
Rise/FallTime(Typ):
50ns, 12ns
Voltage-Forward(Vf)(Typ):
1.4V
Current-DCForward(If)(Max):
30mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

HCPL2630WV this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL2630WV price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL2630WV to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HCPL2630WV information

Views：

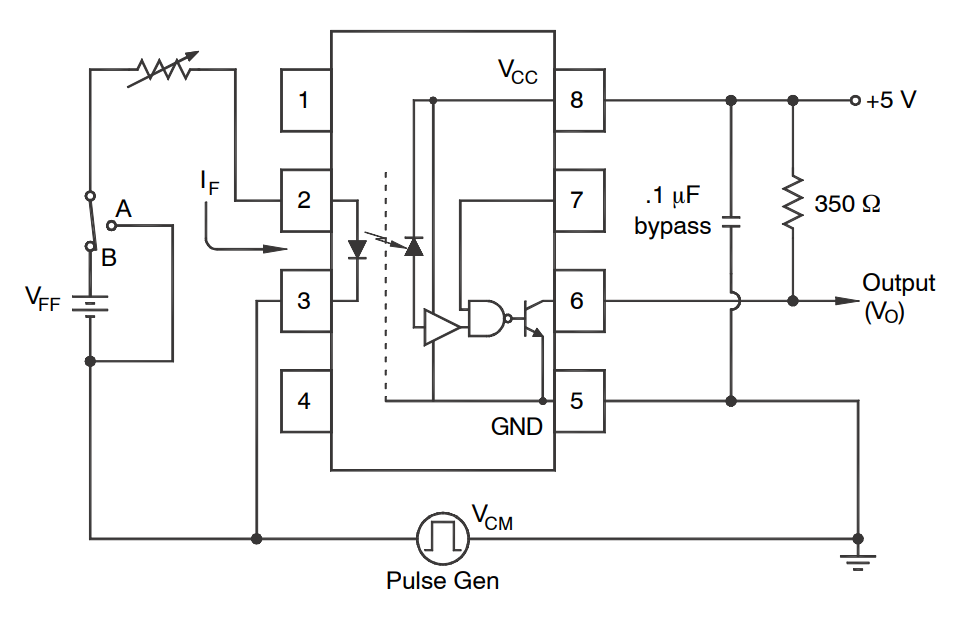

HCPL2630WV Typical application Circuitry

HCPL2630WV

The HCPL2630WV stands out as a dual-channel high-speed optocoupler, renowned for its capacity to transfer digital signals while offering electrical isolation between input and output stages. Here's a systematic guide to connecting the HCPL2630WV, highlighting the precise pin assignments:

1. Input Diodes: For the HCPL2630WV, both input channels possess dedicated diodes. Channel 1's Anode and Cathode are found on Pin 1 and Pin 2, respectively, while Channel 2's Anode and Cathode are on Pin 5 and Pin 6. Your digital signal sources are interfaced with these pins, typically accompanied by current-limiting resistors to safeguard the input diodes.

2. Power Supply for the Output Stage: The HCPL2630WV's Vcc (Pin 8) is pivotal for powering the output side and must be connected to your positive voltage supply. To mitigate potential noise and ensure stability, a bypass capacitor situated close to the Vcc pin is advisable.

3. Ground Connections: The common ground (Pin 4) of the HCPL2630WV needs to be firmly anchored to the system's ground, ensuring reliable signal transmission and isolation.

4. Optocoupler Outputs: The HCPL2630WV yields its outputs from Pins 7 and 8, corresponding to Channel 1 and Channel 2, respectively. These outputs can be interfaced with your subsequent circuit components, such as digital gates, microcontrollers, or other ICs.

5. No Connect Pins: HCPL2630WV's Pins 3 and 5 aren't internally tied and therefore can remain unconnected in your design. However, always refer to the latest datasheet to verify any no connect pins.

In essence, the HCPL2630WV serves as a linchpin in circuit designs where high-speed digital signal isolation is paramount. Proper adherence to pin connectivity is crucial to leverage the robust features of this optocoupler. Delve into the HCPL2630WV datasheet for a deep dive into its characteristics, recommended practices, and potential applications.
