What is the Additional Feature ?

Name: HCPL-2631#520
Brand: Broadcom Limited
SKU: HCPL-2631#520
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Broadcom Limited HCPL-2631#520

Part No.:: HCPL-2631#520

Manufacturer:: Broadcom Limited

Package:: 8-SMD, Gull Wing

Datasheet:: HCPL-2631#520.pdf

Description:: OPTOISO 5KV 2CH OPEN COL 8DIP GW

In Stock:: 3989

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL-2631#520 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
NumberofChannels:
2
Inputs-Side1/Side2:
2/0
Voltage-Isolation:
5000Vrms
CommonModeTransientImmunity(Min):
10kV/µs
InputType:
DC
OutputType:
Open Collector, Schottky Clamped
Current-Output/Channel:
50 mA
DataRate:
10MBd
PropagationDelaytpLH/tpHL(Max):
100ns, 100ns
Rise/FallTime(Typ):
24ns, 10ns
Voltage-Forward(Vf)(Typ):
1.5V
Current-DCForward(If)(Max):
15mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

HCPL-2631#520 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL-2631#520 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL-2631#520 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HCPL-2631#520 information

Views：

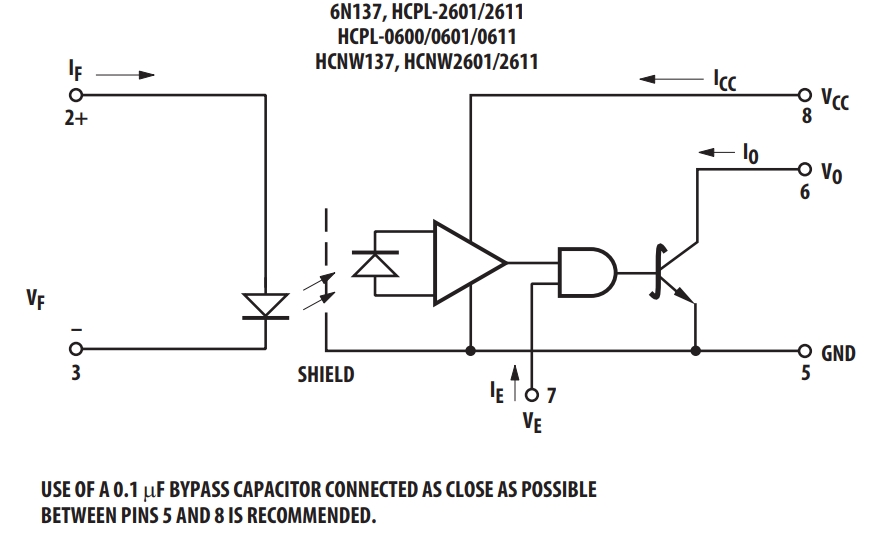

HCPL-2631#520 Typical application Circuitry

HCPL-2631 520

A variation of the HCPL-2631 optocoupler, the HCPL-2631#520 is intended for high-speed digital isolation in a range of applications. It offers electrical isolation between the input and output circuits, protecting sensitive components from voltage spikes and surges.

Principal Purposes:

- Electrical Isolation: By providing isolation between input and output, the HCPL-2631#520 protects low-voltage circuits from disruptions caused by high voltage.

- Very Fast Data Transmission: Up to 10 Mbps of data rates are supported, making it ideal for quick digital communication.

- Logic Compatibility: The optocoupler can interface between different logic levels, such as TTL and CMOS.

Applications:

- Communication Interfaces: In serial communication protocols like RS-232 or RS-485, the HCPL-2631#520 isolates the data lines, preventing ground loops and ensuring signal integrity.

- Motor Control: In motor drive circuits, it isolates control signals, protecting microcontrollers from high-voltage spikes generated by the motor.

- Medical Devices: It is used in medical equipment to isolate patient monitoring signals from the rest of the system, ensuring patient safety.

Parameters:

- Isolation Voltage: 3750 Vrms, providing strong isolation.

- Propagation Delay: Typically 100 ns, allowing for quick signal transmission.

- Common-Mode Rejection: Minimum of 10 kV/µs, offering excellent noise immunity.

Circuit Design (Motor Control Application):

1. Connection for the input signal: Connect a microcontroller's PWM control signal to the HCPL-2631#520's anode (pin 1) and cathode (pin 2). The motor speed is controlled by this signal.

2. Power Supply: Apply a 5V supply to pin 8 (Vcc) on the output side to power the internal circuitry. Connect pin 5 (GND) to the ground for a common reference.

3. Output Signal: Connect pins 6 (VO1) and 7 (VO2) to the input of the motor driver circuit. The HCPL-2631#520 transfers the PWM signal across the isolation barrier, controlling the motor.

4. Resistors for Pull-up: Add resistors to the output pins when the output transistor is in the off state to ensure proper logic levels.

Design Considerations:

- Input Current Regulation: Use a resistor in series with the input LED to limit the current and prolong the life of the optocoupler.

- Power Supply Filtering: Place capacitors near the Vcc and GND pins to reduce supply noise and ensure stable operation.

- Trace Optimization: Keep the traces connecting to the input and output pins short to minimize parasitic effects and maintain signal integrity.

- Isolation Requirements: Ensure that the layout adheres to the required isolation voltage specifications, maintaining adequate clearance and creepage distances between the input and output sides.

In summary, the HCPL-2631#520 is a high-speed optocoupler suitable for a wide range of applications that require fast data transfer and robust electrical isolation. Its ability to interface between different logic levels and protect sensitive circuits from high-voltage transients makes it a valuable component in electronic systems.
