Broadcom Limited HCPL-2630-520

Part No.:: HCPL-2630-520

Manufacturer:: Broadcom Limited

Package:: 8-SMD, Gull Wing

Datasheet:: HCPL-2630-520.pdf

Description:: OPTOCOUPLER 10MBD UL+T/R

In Stock:: 3042

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL-2630-520 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
NumberofChannels:
2
Inputs-Side1/Side2:
2/0
Voltage-Isolation:
5000Vrms
CommonModeTransientImmunity(Min):
5kV/µs
InputType:
DC
OutputType:
Open Collector, Schottky Clamped
Current-Output/Channel:
50 mA
DataRate:
10MBd
PropagationDelaytpLH/tpHL(Max):
75ns, 75ns
Rise/FallTime(Typ):
24ns, 10ns
Voltage-Forward(Vf)(Typ):
1.5V
Current-DCForward(If)(Max):
15mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

HCPL-2630-520 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL-2630-520 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL-2630-520 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HCPL-2630-520 information

Views：

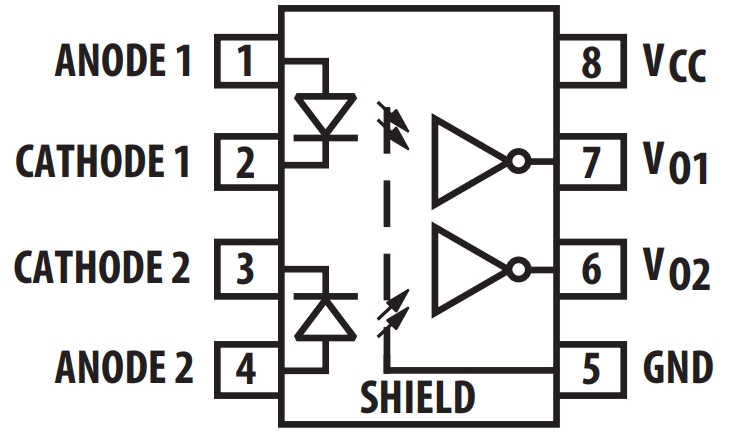

HCPL-2630-520 Typical application Circuitry

HCPL-2630-520

HCPL-2630-520 is a variant of the HCPL-2630 high-speed optocoupler, designed for applications requiring high-speed digital isolation. This device is especially useful in situations where electrical isolation is necessary to protect sensitive electronics from high voltage transients, noise, and ground loops.

Application Scenarios

The HCPL-2630-520 finds its use in various scenarios, including but not limited to, industrial controls, PC communications, digital isolation for A/D, D/A conversion, and signal transmission between systems of different potentials and impedances.

Parameter Features

Key features of the HCPL-2630-520 include:

- High-Speed Operation: Capable of operation at data rates up to 10 Mbit/s.

- High Isolation Voltage: Offers an isolation voltage of 5000 Vrms, providing excellent protection against electrical transients.

- TTL Compatible: Suitable for interfacing with TTL logic levels, simplifying integration with digital systems.

- Dual Channel Configuration: Provides two independent isolation channels, allowing for bidirectional communication.

Specific Circuit Connection - Digital Isolation in a PLC System

In a Programmable Logic Controller (PLC) system, the HCPL-2630-520 can be used to isolate digital I/O modules from the CPU, ensuring that noise and voltage transients do not affect the core system.

- Connection to the CPU: Connect the CPU output signals to pins 1 (Anode) and 2 (Cathode) of the HCPL-2630-520 for the first channel, which will transmit signals to the I/O module.

- Power Supply Configuration: Power the HCPL-2630-520 by connecting 5V to pin 8 (Vcc) and grounding pin 5. Ensure the power supply is stable and has adequate filtering to minimize noise.

- I/O Module Connection: Connect pins 6 (VO1) and 7 (VO2) to the input of the digital I/O module. These pins output the isolated signals received from the CPU.

- Ground Isolation: Maintain separate ground planes for the input (CPU side) and output (I/O module side) to enhance isolation. Ensure there is no direct electrical connection between the two grounds.

Circuit Design Considerations

When integrating the HCPL-2630-520 into a circuit, consider the following:

- Isolation Barrier Strength: Ensure the isolation voltage rating meets the requirements for your specific application, considering potential voltage transients that may occur.

- Data Rate Requirements: Confirm that the HCPL-2630-520 can handle the required data rate for your communication needs without introducing significant latency or distortion.

- Power Supply Quality: Provide a clean, stable power supply to the HCPL-2630-520 to ensure optimal performance and minimize signal integrity issues.

- Thermal Management: Pay attention to the thermal characteristics of the HCPL-2630-520, especially in high-speed or high ambient temperature applications, to prevent overheating and ensure reliable operation.

Designing with the HCPL-2630-520 requires careful consideration of both the device's specifications and the application's requirements, ensuring that the final implementation is both reliable and effective in providing the necessary isolation and signal integrity.
