Broadcom Limited HCPL-2630#500

Part No.:: HCPL-2630#500

Manufacturer:: Broadcom Limited

Package:: 8-SMD, Gull Wing

Datasheet:: HCPL-2630#500.pdf

Description:: OPTOISO 3.75KV OPEN COLL 8DIP GW

In Stock:: 3798

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL-2630#500 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
NumberofChannels:
2
Inputs-Side1/Side2:
2/0
Voltage-Isolation:
3750Vrms
CommonModeTransientImmunity(Min):
5kV/µs
InputType:
DC
OutputType:
Open Collector, Schottky Clamped
Current-Output/Channel:
50 mA
DataRate:
10MBd
PropagationDelaytpLH/tpHL(Max):
100ns, 100ns
Rise/FallTime(Typ):
24ns, 10ns
Voltage-Forward(Vf)(Typ):
1.5V
Current-DCForward(If)(Max):
15mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

HCPL-2630#500 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL-2630#500 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL-2630#500 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HCPL-2630#500 information

Views：

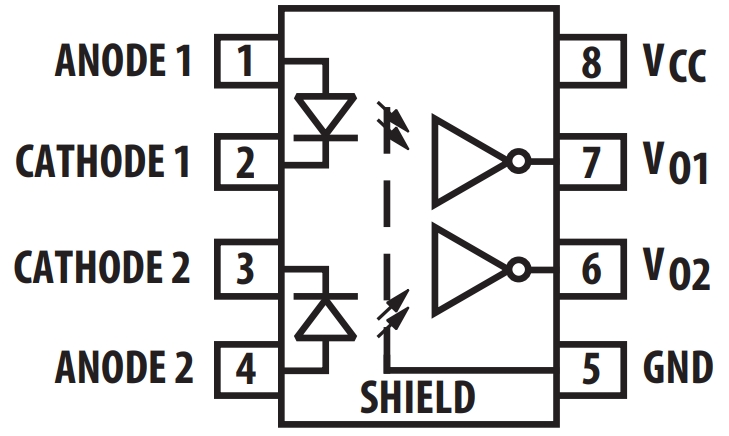

HCPL-2630#500 Typical application Circuitry

HCPL-2630 500

HCPL-2630#500 is a high-speed, dual-channel digital optocoupler, part of the broader HCPL-2630 family, designed to facilitate efficient signal isolation in digital communication systems. This device is adept at providing electrical isolation, thereby protecting sensitive components from high voltage spikes and noise interference in complex electronic environments.

Application Scenarios

The HCPL-2630#500 is instrumental in various fields, such as in the isolation of digital signals in industrial controls, communication systems, power supplies, and in the interfacing of computer peripherals where electrical noise and isolation are concerns.

Parameter Features

Key attributes of the HCPL-2630#500 encompass:

- High-Speed Data Transmission: Supports data rates up to 10 Mbps, making it suitable for fast digital communications.

- Robust Electrical Isolation: Offers a high isolation voltage, typically 5000 Vrms, providing a strong barrier against transient voltages and noise.

- Dual-Channel Design: Features two independent channels for bidirectional communication, enhancing its utility in complex circuits.

- Logic Level Compatibility: Designed to interface seamlessly with TTL and CMOS logic levels, simplifying its integration into digital systems.

Specific Circuit Connection - Isolated RS-232 Communication

In an RS-232 communication setup within a data acquisition system, the HCPL-2630#500 can be used to isolate the data transmission line, protecting the data logger or computer from harmful electrical transients.

- Connecting to the RS-232 Transceiver: Connect the transmit data line (TXD) of the RS-232 transceiver to pin 1 (Anode) and pin 2 (Cathode) of the HCPL-2630#500 on the input side for the first channel, facilitating signal isolation from the transceiver to the data logger.

- Power Supply Arrangement: Power the HCPL-2630#500 with a regulated 5V supply, connecting it to pin 8 (Vcc) while grounding pin 5 (GND). It's imperative to ensure the power supply is free from noise for optimal performance.

- Data Logger Connection: Link pin 6 (VO1) of the HCPL-2630#500 to the receive data input (RXD) of the data logger. This configuration transmits the isolated signal to the data logger, ensuring its protection.

- Isolation and Ground Considerations: Implement distinct ground planes for the input (RS-232 side) and the output (data logger side) to maintain effective isolation. Ensure that the input and output grounds are not electrically connected to preserve signal integrity.

Circuit Design Considerations

Designing with the HCPL-2630#500 necessitates attention to several critical factors:

- Isolation Strength: Confirm that the isolation voltage rating of the HCPL-2630#500 is adequate for the application, particularly in environments prone to high voltage transients.

- Data Rate Compatibility: Ensure that the HCPL-2630#500 can handle the data rate required by the RS-232 communication protocol without introducing unacceptable latency or distortion.

- Power Supply Quality: The HCPL-2630#500 should be supplied with a stable and clean power source to ensure the fidelity of signal transmission and isolation.

- Thermal Management: Be mindful of the thermal requirements of the HCPL-2630#500, especially in high-speed applications or in environments with elevated ambient temperatures, to prevent device overheating and ensure reliable operation.

Incorporating the HCPL-2630#500 into a design requires a comprehensive understanding of both the device's capabilities and the specific demands of the application, ensuring a robust and effective solution that provides the necessary isolation and signal integrity.
