Broadcom Limited HCPL-2630#320

Part No.:: HCPL-2630#320

Manufacturer:: Broadcom Limited

Package:: 8-SMD, Gull Wing

Datasheet:: HCPL-2630#320.pdf

Description:: OPTOISO 5KV 2CH OPEN COL 8DIP GW

In Stock:: 2181

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL-2630#320 Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Discontinued at Mosen
NumberofChannels:
2
Inputs-Side1/Side2:
2/0
Voltage-Isolation:
5000Vrms
CommonModeTransientImmunity(Min):
5kV/µs
InputType:
DC
OutputType:
Open Collector, Schottky Clamped
Current-Output/Channel:
50 mA
DataRate:
10MBd
PropagationDelaytpLH/tpHL(Max):
100ns, 100ns
Rise/FallTime(Typ):
24ns, 10ns
Voltage-Forward(Vf)(Typ):
1.5V
Current-DCForward(If)(Max):
15mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

HCPL-2630#320 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL-2630#320 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL-2630#320 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HCPL-2630#320 information

Views：

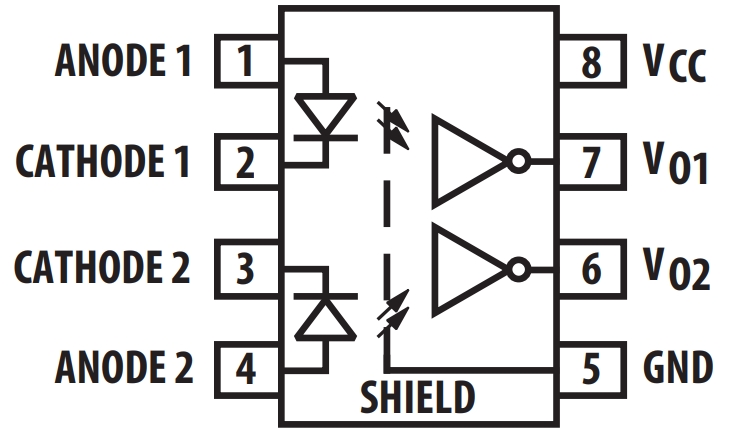

HCPL-2630#320 Typical application Circuitry

HCPL-2630 320

HCPL-2630#320 is a specific configuration of the HCPL-2630 family of optocouplers, designed to offer high-speed signal isolation in digital communication systems. This device is particularly useful for electrically isolating signals between different circuit sections, ensuring that high voltage transients and noise do not compromise signal integrity or damage sensitive components.

Application Scenarios

The HCPL-2630#320 is commonly used in applications such as signal isolation for industrial control systems, isolated bus driver systems, computer-peripheral interfaces, and analog-to-digital converters.

Parameter Features

Notable features of the HCPL-2630#320 include:

- High Data Rate: Supports data transmission rates up to 10 Mbit/s, suitable for high-speed digital communication.

- Robust Isolation Voltage: Provides an isolation voltage of 3750 Vrms, offering a strong barrier against electrical noise and transients.

- Dual-Channel Configuration: Having two channels enables bidirectional communication to occur simultaneously.

- TTL Compatibility: Makes integration with a variety of digital systems easier by easily interacting with TTL logic.

Specific Circuit Connection - Isolated SPI Bus Interface

In an application involving an SPI (Serial Peripheral Interface) bus in a microcontroller system, the HCPL-2630#320 can be utilized to isolate the SPI bus, safeguarding the microcontroller from potential electrical hazards.

- Microcontroller to HCPL-2630#320 Connection: Connect the microcontroller's SPI output (MOSI) to pin 1 (Anode) and pin 2 (Cathode) of the HCPL-2630#320 input side for channel one. This setup will handle the forward communication from the microcontroller to the peripheral.

- Power Supply Setup: Ensure the HCPL-2630#320 is powered by a clean and stable 5V supply, connected to pin 8 (Vcc), with pin 5 (Ground) connected to the system ground. It's crucial to filter the power supply to minimize noise.

- Peripheral Connection: Link pin 6 (VO1) of the HCPL-2630#320 to the SPI input (MISO) of the peripheral device.The isolated signals from the microcontroller will be sent to the peripheral using this connection.

- Isolation and Grounding: Implement separate ground planes for the input (microcontroller side) and output (peripheral side) to enhance isolation. To preserve signal integrity, there shouldn't be a direct electrical connection made between the input and output grounds.

Circuit Design Considerations

When designing with the HCPL-2630#320, several factors should be taken into account:

- Isolation Capability: Verify that the isolation voltage of the HCPL-2630#320 meets the requirements of your application, especially in environments with high electrical noise or potential voltage transients.

- Compatibility with Data Rates: Ensure that the HCPL-2630#320 can support the SPI bus's data rate, avoiding any bottleneck that might introduce latency or signal distortion.

- Power Supply Integrity: Provide a high-quality power supply to the HCPL-2630#320 to maintain optimal performance, using filters to reduce supply noise.

- Thermal Considerations: Monitor the thermal performance of the HCPL-2630#320, particularly in applications with high data rates or ambient temperatures, to prevent overheating and ensure reliable operation.

Incorporating the HCPL-2630#320 into a circuit demands a thorough understanding of the device's specifications and the application's specific needs, ensuring a reliable and efficient implementation that provides the necessary isolation and signal integrity.
