Name: HCPL-2630-300E
Brand: Broadcom Limited
SKU: HCPL-2630-300E
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Broadcom Limited HCPL-2630-300E

Part No.:: HCPL-2630-300E

Manufacturer:: Broadcom Limited

Package:: 8-SMD, Gull Wing

Datasheet:: HCPL-2630-300E.pdf

Description:: OPTOISO 3.75KV OPEN COLL 8DIP GW

In Stock:: 2902

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL-2630-300E Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofChannels:
2
Inputs-Side1/Side2:
2/0
Voltage-Isolation:
3750Vrms
CommonModeTransientImmunity(Min):
5kV/µs
InputType:
DC
OutputType:
Open Collector, Schottky Clamped
Current-Output/Channel:
50 mA
DataRate:
10MBd
PropagationDelaytpLH/tpHL(Max):
100ns, 100ns
Rise/FallTime(Typ):
24ns, 10ns
Voltage-Forward(Vf)(Typ):
1.5V
Current-DCForward(If)(Max):
15mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

HCPL-2630-300E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL-2630-300E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL-2630-300E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HCPL-2630-300E information

Views：

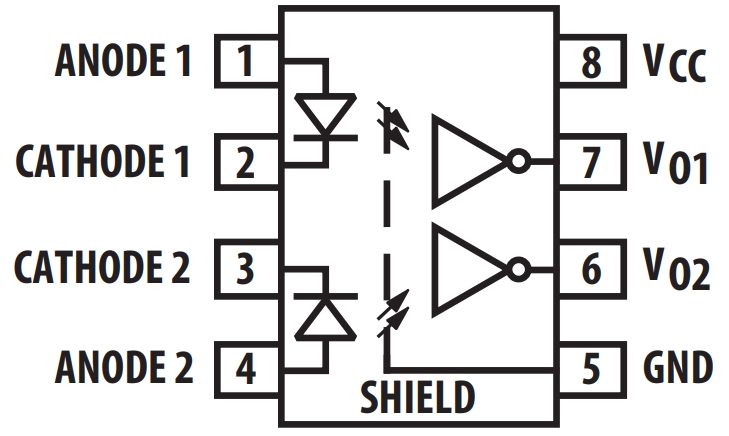

HCPL-2630-300E Typical application Circuitry

HCPL-2630-300E

HCPL-2630-300E is a high-speed, dual-channel optocoupler designed for efficient electrical isolation in digital communication systems. This component is crucial for safeguarding sensitive electronics from high voltage spikes and electromagnetic interference, making it an essential element in a wide array of applications.

Application Scenarios

The HCPL-2630-300E is particularly suited for use in environments where electrical isolation is critical, such as in industrial automation systems, motor control circuits, data communication between different voltage domains, and interfacing microcontrollers with high-voltage equipment.

Parameter Features

Notable features of the HCPL-2630-300E include:

- High Data Rate: Supports data transmission speeds up to 10 Mbps, catering to high-speed digital communication requirements.

- Robust Isolation Voltage: Offers an isolation voltage of 3750 Vrms, providing a significant barrier against electrical transients.

- Dual-Channel Configuration: Features two independent channels, allowing for bidirectional communication or complex signal isolation tasks.

- Logic Level Compatibility: Can interface with both TTL and CMOS logic levels, facilitating easy integration into a variety of digital systems.

Specific Circuit Connection - Motor Control System Interface

In a motor control system, the HCPL-2630-300E can be employed to isolate control signals from a low-voltage microcontroller to the high-voltage motor driver circuit, ensuring the microcontroller's protection against high-voltage transients.

- Microcontroller to HCPL-2630-300E Connection: Connect the microcontroller's output control signals to pins 1 (Anode) and 2 (Cathode) of the HCPL-2630-300E for one channel, enabling the transmission of control signals to the motor driver while maintaining electrical isolation.

- Power Supply Arrangement: Power the HCPL-2630-300E with a regulated 5V supply, connecting it to pin 8 (Vcc) and grounding pin 5 (GND). It's vital to ensure the power supply is clean and stable to minimize signal distortion.

- Motor Driver Connection: Link pin 6 (VO1) of the HCPL-2630-300E to the input of the motor driver circuit. This setup facilitates the transfer of isolated control signals to the motor driver, thereby controlling the motor's operation.

- Isolation and Grounding Considerations: Maintain separate ground planes for the input (microcontroller side) and output (motor driver side) to optimize electrical isolation. It's crucial to ensure that the input and output grounds are not electrically connected to preserve signal integrity.

Circuit Design Considerations

When incorporating the HCPL-2630-300E into a circuit, several critical factors must be considered:

- Isolation Efficacy: Confirm that the HCPL-2630-300E's isolation voltage rating is adequate for the application, especially in environments susceptible to high voltage transients.

- Compatibility with Communication Speeds: Verify that the HCPL-2630-300E can accommodate the necessary data rate for the application without introducing significant latency or signal degradation.

- Power Supply Quality: Ensure that the HCPL-2630-300E is powered by a noise-free and stable power source to maintain optimal performance and signal quality.

- Thermal Management: Pay attention to the thermal characteristics of the HCPL-2630-300E, particularly in high data rate applications or environments with elevated ambient temperatures, to prevent overheating and ensure reliable operation.

Integrating the HCPL-2630-300E into a design requires a deep understanding of the device's capabilities and the specific demands of the application, guaranteeing a robust and effective solution that provides the necessary isolation and signal integrity.
