Broadcom Limited HCPL-2630-020E

Part No.:: HCPL-2630-020E

Manufacturer:: Broadcom Limited

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:: HCPL-2630-020E.pdf

Description:: OPTOISO 5KV 2CH OPEN COLL 8DIP

In Stock:: 3964

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL-2630-020E Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofChannels:
2
Inputs-Side1/Side2:
2/0
Voltage-Isolation:
5000Vrms
CommonModeTransientImmunity(Min):
5kV/µs
InputType:
DC
OutputType:
Open Collector, Schottky Clamped
Current-Output/Channel:
50 mA
DataRate:
10MBd
PropagationDelaytpLH/tpHL(Max):
100ns, 100ns
Rise/FallTime(Typ):
24ns, 10ns
Voltage-Forward(Vf)(Typ):
1.5V
Current-DCForward(If)(Max):
15mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

HCPL-2630-020E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL-2630-020E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL-2630-020E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HCPL-2630-020E information

Views：

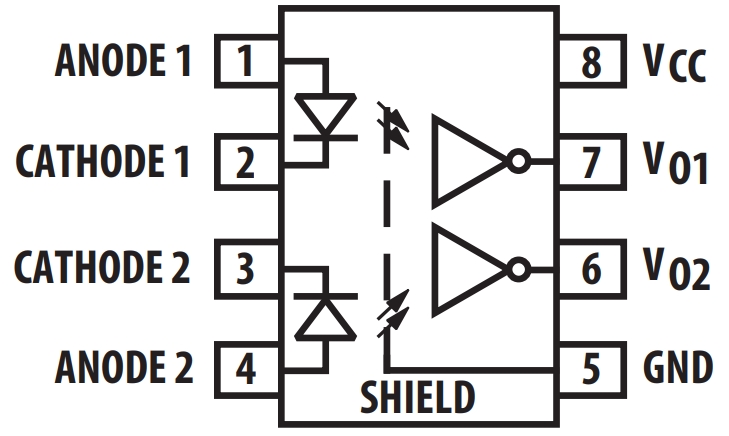

HCPL-2630-020E Typical application Circuitry

HCPL-2630-020E

HCPL-2630-020E is a high-speed optocoupler featuring dual channels, designed to facilitate signal isolation while maintaining high data integrity in digital communication systems. This component is particularly adept at protecting sensitive electronic circuits from high voltage transients and noise, making it a vital element in various applications requiring robust electrical isolation.

Application Scenarios

The HCPL-2630-020E is extensively utilized in environments where electrical isolation is crucial, such as in industrial controls, data communication between systems with different ground potentials, interfacing microcontrollers with high-voltage systems, and in digital signal isolation for ADCs and DACs.

Parameter Features

Characteristic features of the HCPL-2630-020E include:

- High-Speed Data Transmission: Capable of up to 10 Mbps, making it suitable for high-speed digital communication.

- Significant Isolation Voltage: Provides 5000 Vrms of isolation, ensuring excellent protection against voltage spikes.

- Dual-Channel Design: Facilitates bidirectional communication or complex signal isolation needs with its two independent channels.

- Compatibility with Digital Logic: Interfaces seamlessly with TTL and CMOS logic levels, easing integration into digital systems.

Specific Circuit Connection - Microcontroller to High-Voltage System Interface

In a scenario where a microcontroller needs to communicate with a high-voltage system, the HCPL-2630-020E can be employed to isolate the control signals, safeguarding the microcontroller from high voltage and noise.

- Microcontroller Connection: Connect the control signal output from the microcontroller to pins 1 (Anode) and 2 (Cathode) of the HCPL-2630-020E input side for the first channel, ensuring signal transmission to the high-voltage system is isolated.

- Power Supply Arrangement: Power the HCPL-2630-020E with a stable 5V supply, connecting it to pin 8 (Vcc) and pin 5 (Ground). It's essential to filter the power supply to minimize noise for optimal performance.

- High-Voltage System Interface: Link pin 6 (VO1) of the HCPL-2630-020E to the input of the high-voltage system. This setup transmits the isolated control signal from the microcontroller to the high-voltage system.

- Isolation and Grounding Practices: Maintain distinct ground planes for the input (microcontroller side) and output (high-voltage system side) to enhance electrical isolation. The input and output grounds should not be electrically connected to preserve signal integrity.

Circuit Design Considerations

When incorporating the HCPL-2630-020E into a circuit, it's crucial to consider:

- Isolation Requirements: Ensure the HCPL-2630-020E's isolation voltage is sufficient for the application, especially in environments prone to high voltage transients.

- Data Rate Compatibility: Confirm that the HCPL-2630-020E can support the required data rate for communication without introducing significant latency or distortion.

- Power Supply Quality: The HCPL-2630-020E should be provided with a clean and stable power source to ensure the fidelity of signal transmission and isolation.

- Thermal Management: Pay attention to the thermal requirements of the HCPL-2630-020E, especially in high-speed or high ambient temperature environments, to prevent device overheating and ensure reliable operation.

Designing with the HCPL-2630-020E demands a comprehensive understanding of the device's capabilities and the specific needs of the application to ensure a reliable and efficient implementation that provides the necessary isolation and signal integrity.
