Broadcom Limited HCPL-0600#060

Part No.:: HCPL-0600#060

Manufacturer:: Broadcom Limited

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: HCPL-0600#060.pdf

Description:: OPTOISO 3.75KV OPN COLLECTOR 8SO

In Stock:: 2919

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL-0600#060 Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofChannels:
1
Inputs-Side1/Side2:
1/0
Voltage-Isolation:
3750Vrms
CommonModeTransientImmunity(Min):
5kV/µs
InputType:
DC
OutputType:
Open Collector, Schottky Clamped
Current-Output/Channel:
50 mA
DataRate:
10MBd
PropagationDelaytpLH/tpHL(Max):
100ns, 100ns
Rise/FallTime(Typ):
24ns, 10ns
Voltage-Forward(Vf)(Typ):
1.5V
Current-DCForward(If)(Max):
20mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

HCPL-0600#060 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL-0600#060 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL-0600#060 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HCPL-0600#060 information

Views：

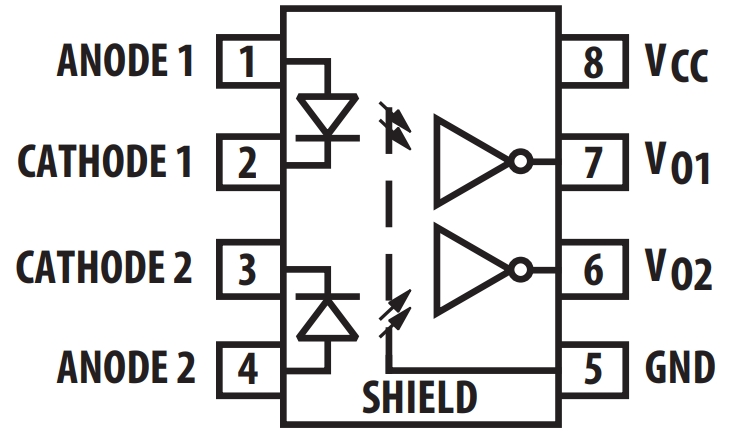

HCPL-0600#060 Typical application Circuitry

HCPL-0600 060

The HCPL-0600#060 is a specific variant of the HCPL-0600 high-speed digital optocoupler, designed for applications requiring electrical isolation to protect sensitive components from high voltage spikes and to eliminate ground loop issues. This component is particularly useful in digital communication for isolating signals between different voltage domains, thus ensuring signal integrity and system reliability.

Application Scenario: SPI Communication Interface Isolation

One common application of the HCPL-0600#060 is in isolating the Serial Peripheral Interface (SPI) communication lines between a microcontroller and peripheral devices that may operate at different voltage levels or are sensitive to electrical noise.

Circuit Connection Details

- Pin Configuration: Start by connecting the input side of the HCPL-0600#060 to the SPI master device, such as a microcontroller. Specifically, the input pin of the HCPL-0600#060 (pin 1 for the LED anode and pin 2 for the cathode) should be connected to the SPI master's MOSI (Master Out Slave In) line. Ensure a current-limiting resistor is in series with the LED to protect it from excessive current.

- Power Supply Considerations: The HCPL-0600#060 requires a separate power supply for its input and output stages. The Vcc1 (pin 8) should be connected to the microcontroller's power supply, and Vcc2 (pin 5) to the peripheral's power domain. This setup ensures proper electrical isolation between the two domains.

- Output Connection: The output side of the HCPL-0600#060 (pin 6 for VO and pin 5 for ground) should be connected to the peripheral device's SPI slave input, ensuring that the signal transmitted from the microcontroller is accurately received by the peripheral device, free from any electrical interference.

- Ground Isolation: Ensure that the ground of the input side (pin 2 of HCPL-0600#060) and the ground of the output side (pin 5 of HCPL-0600#060) are isolated from each other. This is crucial for maintaining the integrity of the isolation barrier.

Design Considerations

- Isolation Voltage: Verify that the isolation voltage rating of the HCPL-0600#060 meets the requirements of your application, ensuring that the device can handle the maximum potential voltage difference across its isolation barrier.

- Data Rate: Confirm that the HCPL-0600#060 supports the SPI communication speed. The component should be capable of transmitting data at the required speed without introducing significant delays or distortion.

- Propagation Delay: Take into account the propagation delay through the HCPL-0600#060. This delay should be minimized to ensure synchronous data transmission and reception in time-sensitive applications.

- Temperature and Environmental Conditions: Ensure that the operating temperature range and environmental conditions are within the specified limits for the HCPL-0600#060 to prevent degradation of its performance and reliability over time.

By meticulously incorporating these aspects into your design, the HCPL-0600#060 can be effectively utilized to achieve robust electrical isolation in SPI communication interfaces, enhancing the overall performance and reliability of electronic systems.
