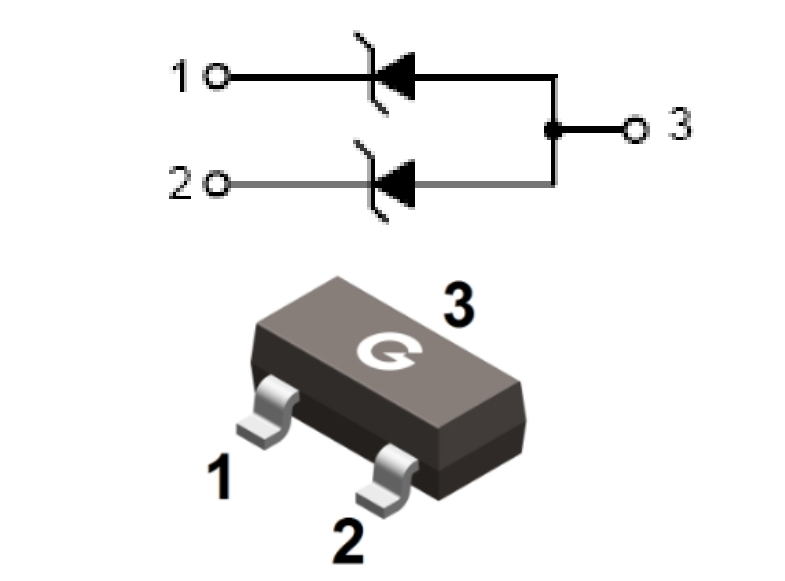

lmages are for reference only See Product Specifications

STMicroelectronics ESDA6V1LY

Part No.:: ESDA6V1LY

Manufacturer:: STMicroelectronics

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: ESDA6V1LY.pdf

Description:: TVS DIODE 5.2VWM 16VC SOT23-3

In Stock:: 263450

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ESDA6V1LY Specifications

Package/Case:
TO-236-3, SC-59, SOT-23-3
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, ESDAY, TRANSIL™
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
2
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
5.2V
Voltage-Breakdown(Min):
6.1V
Voltage-Clamping(Max)@Ipp:
16V
Current-PeakPulse(10/1000µs):
18A (8/20µs)
Power-PeakPulse:
300W
PowerLineProtection:
No
Applications:
Automotive
Capacitance@Frequency:
-
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

ESDA6V1LY this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ESDA6V1LY price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ESDA6V1LY to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ESDA6V1LY information

Views：

ESDA6V1LY Typical application Circuitry

ESDA6V1LY

The ESDA6V1LY is a semiconductor device primarily designed for providing protection against Electrostatic Discharge (ESD). This chip is tailored for safeguarding sensitive electronic circuits from the abrupt and potentially damaging effects of ESD, a common issue in many electronic applications.

Application Scenario: Protection of Smartphone Audio Jacks

A common use of the ESDA6V1LY is in protecting the audio jack circuitry in smartphones. Below is a detailed method for integrating this chip into such a circuit:

1. Integration with Audio Jack Lines: Connect the ESDA6V1LY directly across the audio jack's signal lines. This means connecting one terminal of the ESDA6V1LY to the signal line and the other terminal to the ground.

2. Effective Grounding: Ensure the ground terminal of the ESDA6V1LY is connected to the smartphone's main ground. This connection provides a path for ESD dissipation.

3. Proximity to Audio Jack: Position the ESDA6V1LY as close as possible to the audio jack connectors. This proximity ensures immediate response to any ESD event, offering more effective protection.

4. Parallel Configuration: The ESDA6V1LY is typically connected in parallel with the audio jack's signal line it is protecting. This setup ensures minimal interference with the audio signal.

Parameter Features

- Clamping Voltage: The ESDA6V1LY has a specific clamping voltage, which is critical for defining the threshold for ESD suppression.

- Low Capacitance: This feature is important for maintaining the fidelity of the audio signal, especially in high-frequency applications.

- Fast Response Time: The ESDA6V1LY reacts quickly to ESD, providing immediate protection to the sensitive electronics.

Design Considerations

- Layout Optimization: The PCB layout should be optimized to minimize the path length between the ESDA6V1LY and the protected circuitry, thereby enhancing the effectiveness of ESD protection.

- Thermal Performance: Consider the chip's thermal performance, ensuring that the ESDA6V1LY can handle the heat generated during an ESD event.

- Signal Integrity: Ensure that the incorporation of the ESDA6V1LY does not adversely affect the audio signal's quality and integrity.

In conclusion, the integration of the ESDA6V1LY into smartphone audio circuits is essential for protecting these sensitive components from ESD. Understanding its characteristics and the challenges in the application environment is key to ensuring effective protection while maintaining audio performance.
