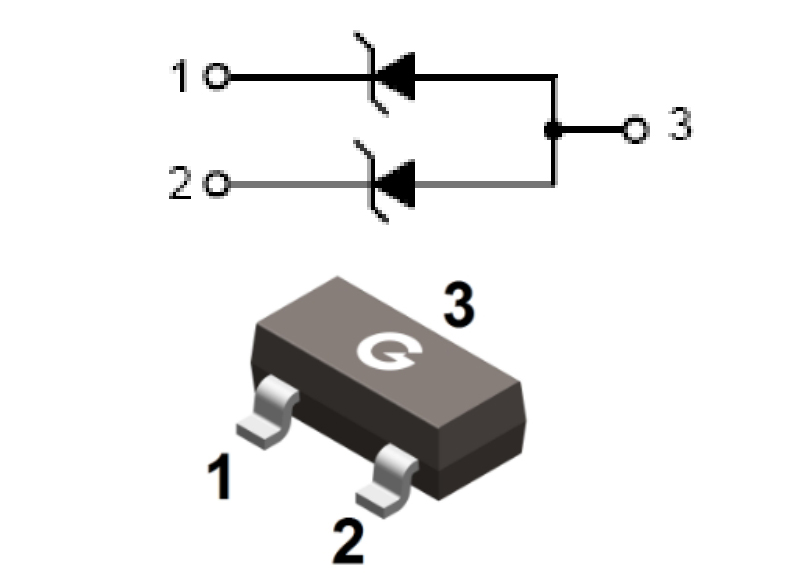

STMicroelectronics ESDA6V1L

Part No.:: ESDA6V1L

Manufacturer:: STMicroelectronics

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: ESDA6V1L.pdf

Description:: TVS DIODE 5.25VWM SOT23-3

In Stock:: 47302

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ESDA6V1L this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ESDA6V1L price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ESDA6V1L to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

ESDA6V1L Typical application Circuitry

ESDA6V1L

The ESDA6V1L is a chip designed for transient voltage suppression, specifically aimed at protecting sensitive electronic circuits from Electrostatic Discharge (ESD) and other voltage-induced damages. This type of chip is widely used in modern electronics due to its efficiency in safeguarding components from sudden electrical surges.

Application Scenario: Consumer Electronics - Smartphone Camera Protection

In the realm of consumer electronics, a common application of the ESDA6V1L is in protecting the camera circuits of a smartphone. Here's a thorough connecting technique designed for this particular use:

1. Signal Line Integration: Integrate the ESDA6V1L directly with the camera module's signal lines. The ESDA6V1L has to have one terminal connected to the signal line and the other terminal to ground in order to accomplish this.

2. Effective Grounding: Ensure the ground terminal of the ESDA6V1L is adequately connected to the smartphone's main ground to provide an effective discharge path for ESD events.

3. Proximity to Camera Module: Position the ESDA6V1L as close as possible to the camera module to minimize the path length for ESD suppression and enhance protection efficiency.

4. Parallel Configuration: The ESDA6V1L should be connected in parallel with the signal line it is protecting, ensuring minimal interference with the normal operation of the camera module.

Parameter Features

- Breakdown Voltage: The ESDA6V1L typically has a specific breakdown voltage, ensuring it activates only during ESD events.

- Low Capacitance: This feature is essential to maintain the integrity of high-speed signals, especially in camera modules.

- Rapid Response Time: Quick activation is crucial for effective protection against fast ESD events. Design Considerations

- PCB Layout Optimization: The layout should be optimized to reduce the trace lengths between the ESDA6V1L and the camera module.

- Thermal Management: Consider the thermal effects under surge conditions to ensure the ESDA6V1L operates within its temperature range.

- Signal Integrity Maintenance: Ensure that the addition of the ESDA6V1L does not degrade the camera's signal quality.

Incorporating the ESDA6V1L into smartphone camera circuits demands an understanding of its protective capabilities and the specific requirements of high-speed digital camera interfaces. Proper implementation ensures robust ESD protection while maintaining the camera's performance.

ESDA6V1L information

ESDA6V1L Specifications

Package/Case:
TO-236-3, SC-59, SOT-23-3
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
ESDA, TRANSIL™
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
2
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
5.25V
Voltage-Breakdown(Min):
6.1V
Voltage-Clamping(Max)@Ipp:
-
Current-PeakPulse(10/1000µs):
-
Power-PeakPulse:
300W
PowerLineProtection:
No
Applications:
General Purpose
Capacitance@Frequency:
-
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount
