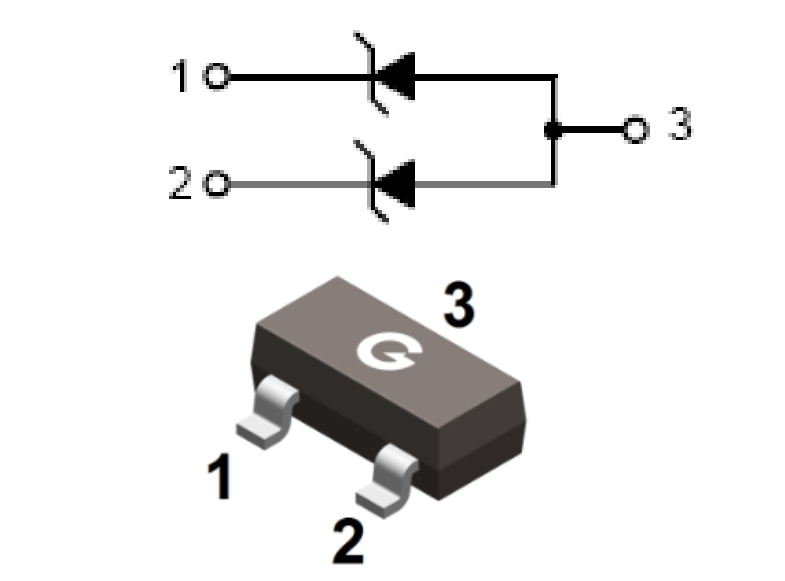

STMicroelectronics ESDA14V2LY

Part No.:: ESDA14V2LY

Manufacturer:: STMicroelectronics

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: ESDA14V2LY.pdf

Description:: TVS DIODE 12VWM 21VC SOT23-3

In Stock:: 26061

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ESDA14V2LY Specifications

Package/Case:
TO-236-3, SC-59, SOT-23-3
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, ESDAY, TRANSIL™
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
2
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
12V
Voltage-Breakdown(Min):
14.2V
Voltage-Clamping(Max)@Ipp:
21V
Current-PeakPulse(10/1000µs):
14A (8/20µs)
Power-PeakPulse:
300W
PowerLineProtection:
No
Applications:
Automotive
Capacitance@Frequency:
-
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount
