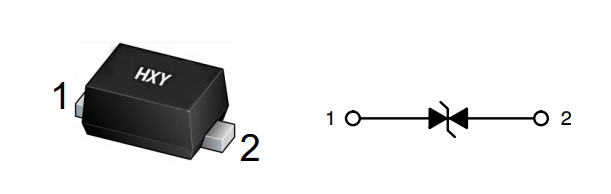

ON Semiconductor ESD9L5.0ST5G

Part No.:: ESD9L5.0ST5G

Manufacturer:: ON Semiconductor

Package:: SOD-923

Datasheet:: ESD9L5.0ST5G.pdf

Description:: TVS DIODE 5VWM 9.8VC SOD923

In Stock:: 4505766

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ESD9L5.0ST5G Specifications

Package/Case:
SOD-923
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
1
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
5V (Max)
Voltage-Breakdown(Min):
5.4V
Voltage-Clamping(Max)@Ipp:
9.8V
Current-PeakPulse(10/1000µs):
1A (8/20µs)
Power-PeakPulse:
-
PowerLineProtection:
No
Applications:
General Purpose
Capacitance@Frequency:
0.5pF @ 1MHz
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
