What is the Additional Feature ?

Name: DS3232MZ/V+
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS3232MZ/V+
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc./Maxim Integrated DS3232MZ/V+

Part No.:: DS3232MZ/V+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: DS3232MZ/V+.pdf

Description:: IC RTC CLK/CALENDAR I2C 8-SOIC

In Stock:: 2010

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS3232MZ/V+ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
Automotive, AEC-Q100
ProductStatus:
Not For New Designs
Type:
Clock/Calendar
Features:
Alarm, Leap Year, Square Wave Output, SRAM
MemorySize:
236B
TimeFormat:
HH:MM:SS (12/24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
I²C, 2-Wire Serial
Voltage-Supply:
2.3V ~ 4.5V
Voltage-SupplyBattery:
2.3V ~ 4.5V
Current-Timekeeping(Max):
175µA @ 2.3V ~ 4.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

DS3232MZ/V+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS3232MZ/V+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS3232MZ/V+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS3232MZ/V+ information

Views：

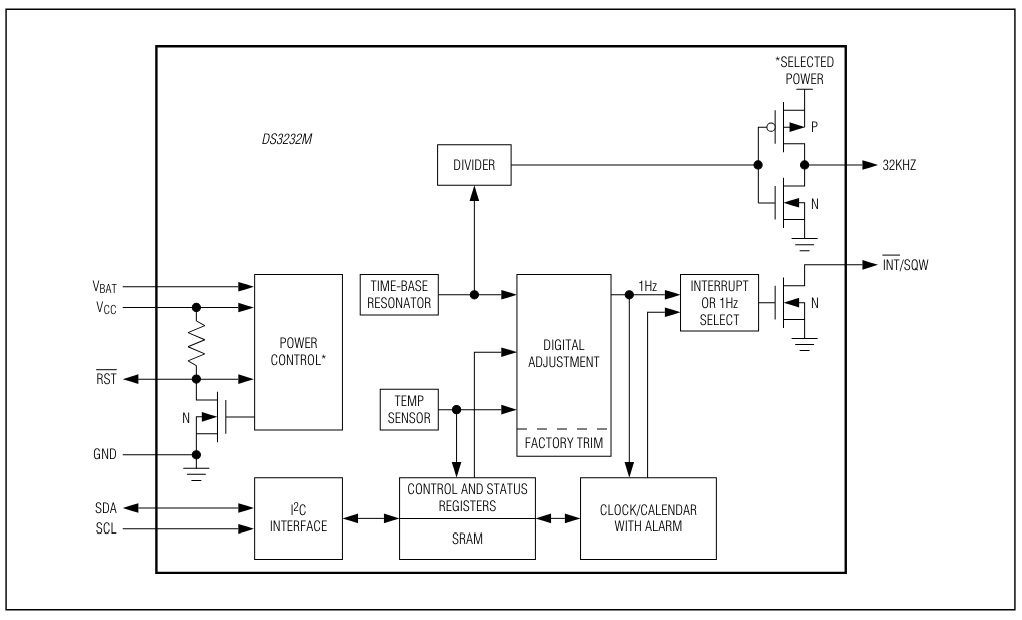

DS3232MZ/V+ Typical application Circuitry

DS3232MZ V-

The DS3232MZ/V+ is a high-precision real-time clock (RTC) module, featuring an integrated temperature-compensated crystal oscillator (TCXO) and a crystal. Manufactured by Maxim Integrated, this chip is known for its exceptional accuracy and stability over a wide temperature range, making it an ideal solution for applications requiring precise timekeeping. It includes a serial I²C interface, allowing for easy integration with microcontrollers and other digital systems.

Key Features and Specifications:

- Outstanding Time Accuracy: Ensures highly accurate timekeeping, crucial for applications where precise timing is necessary.

- Temperature Compensation: Incorporates a built-in mechanism to adjust for temperature variations, maintaining time accuracy.

- Integrated Memory: Comes with additional memory for data storage, useful for logging or storing configuration settings.

- I²C Interface: Facilitates a straightforward connection to most microcontrollers, utilizing a widely supported protocol.

- Alarm Function: Features programmable alarms, enabling the device to trigger events at specific times.

Application Scenario: Secure Access Control System

In a secure access control system, the DS3232MZ/V+ is utilized to manage access logs and ensure that entries and exits are recorded with precise timestamps, enhancing security and providing a reliable audit trail.

Circuit Design Methodology:

1. I²C Communication (SDA, Pin 2; SCL, Pin 1): These pins connect to the corresponding SDA and SCL pins on the microcontroller. To maintain signal integrity and proper communication over the I²C bus, pull-up resistors (typically 4.7kΩ) are connected to both lines.

2. Power Supply (VCC, Pin 8; GND, Pin 4): The DS3232MZ/V+ operates with a supply voltage (VCC) that can range from 2.3V to 5.5V. Connecting VCC to a regulated power source and GND to the common ground point powers the device.

3. Battery Backup (V_BAT, Pin 3): A battery, such as a CR2032 coin cell, is connected to this pin to ensure continuous timekeeping during periods when the primary power source is unavailable. This feature is crucial for maintaining accurate access logs even in the event of a power failure.

4. Square Wave/Interrupt Output (INT/SQW, Pin 5): This output pin can be programmed to function as an interrupt or to generate a square wave. In an access control system, it can be used to trigger events based on specific time criteria, such as activating locks or alarms at predetermined times.

5. 32kHz Output (32K, Pin 6): This pin outputs a 32.768kHz signal that can be used to drive other peripherals or for timekeeping in external devices. Although not always utilized, it offers additional functionality for complex systems.

Design Considerations:

- I²C Bus Layout: Care should be taken to minimize noise and interference on the I²C lines, as these can impact communication reliability. Shielding and proper routing can mitigate these issues.

- Battery Life and Selection: The choice of battery for the backup function should consider its lifespan and performance, especially in environments with extreme temperatures.

- Decoupling Capacitors: Placing decoupling capacitors close to the power supply pins of the DS3232MZ/V+ is essential for stabilizing the supply voltage and reducing noise.

- Firmware Handling of Alarms: Software implementation must robustly handle alarm interrupts, ensuring that the access control system responds appropriately to time-based events.

- Data Integrity: Ensuring the integrity of time and date information, especially during power transitions, is crucial for maintaining accurate access logs.

Incorporating the DS3232MZ/V+ into a secure access control system demonstrates its capability to provide precise time stamps for access events, facilitating a secure and reliable method of monitoring and controlling entry into sensitive areas. This application underscores the DS3232MZ/V+'s role in enhancing security measures through accurate timekeeping.
