Analog Devices Inc./Maxim Integrated DS3231MZ/V+T

Part No.:: DS3231MZ/V+T

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: DS3231MZ/V+T.pdf

Description:: IC RTC CLK/CALENDAR I2C 8-SOIC

In Stock:: 3269

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS3231MZ/V+T Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q100
ProductStatus:
Not For New Designs
Type:
Clock/Calendar
Features:
Alarm, Leap Year, Square Wave Output
MemorySize:
-
TimeFormat:
HH:MM:SS (12/24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
I²C, 2-Wire Serial
Voltage-Supply:
2.3V ~ 5.5V
Voltage-SupplyBattery:
2.3V ~ 5.5V
Current-Timekeeping(Max):
130µA ~ 200µA @ 3.63V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

DS3231MZ/V+T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS3231MZ/V+T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS3231MZ/V+T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS3231MZ/V+T information

Views：

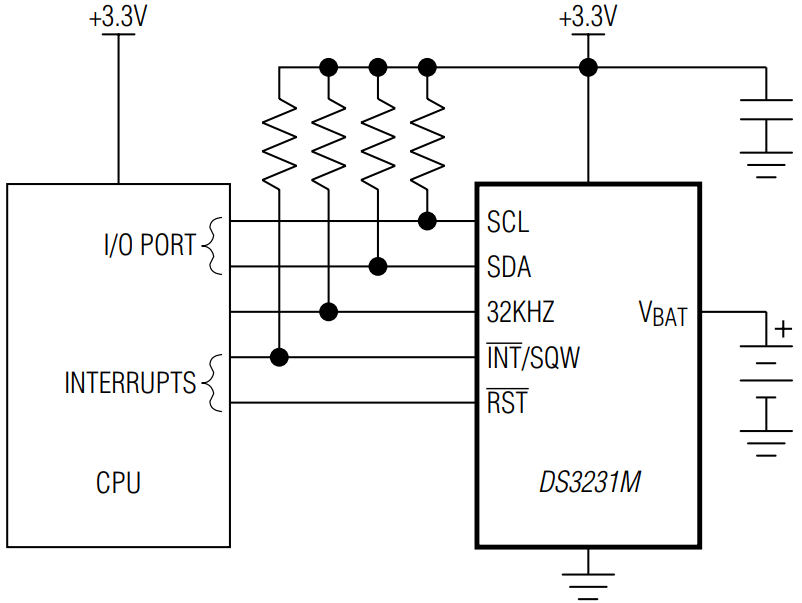

DS3231MZ/V+T Typical application Circuitry

DS3231MZ V+T

The DS3231MZ/V+T is a notable component in the DS3231 series, crafted by Maxim Integrated. It stands out as a highly accurate, temperature-compensated real-time clock (RTC). This device ensures precision in timekeeping, making it an ideal choice for applications where accurate timekeeping is critical, such as in data logging, telecommunications, and various consumer electronics.

1. Power Supply Considerations: The DS3231MZ/V+T operates effectively with a supply voltage typically ranging from 2.3V to 5.5V. Connect the VCC pin to a power source within this range. The selection of the supply voltage should align with the operating requirements of your specific application and the compatibility with other circuit components.

2. Establishing Ground Connectivity: Connect the GND pin of the DS3231MZ/V+T to your circuit's ground. This ground connection is vital for the stability and accuracy of the RTC, as it helps in minimizing potential noise and interference in the circuit.

3. I2C Communication Interface Setup: This device utilizes an I2C interface for communication, involving two crucial connections: SDA (Serial Data Line) and SCL (Serial Clock Line). These should be linked to the corresponding SDA and SCL pins on your microcontroller or I2C bus. Including pull-up resistors on both the SDA and SCL lines is essential for the I2C protocol to function correctly.

4. Backup Power Input: The DS3231MZ/V+T includes a feature for connecting a backup power source, like a coin cell battery. This backup ensures that the RTC maintains accurate timekeeping even when the primary power supply is disconnected.

5. 32kHz Output Utilization: The chip offers a 32kHz output pin, which can be used as a stable frequency reference for other elements in your system. This output is particularly useful for applications that require an additional timing signal.

6. Signal Integrity and Trace Routing: When integrating the DS3231MZ/V+T into your system, it's important to carefully route the I2C lines and consider the placement of the chip to reduce noise and maintain signal integrity.

7. Environmental Placement: Given the precision of the DS3231MZ/V+T, it's advisable to position it in an environment that minimizes exposure to extreme temperature changes, thus ensuring the highest accuracy in timekeeping.

In conclusion, the DS3231MZ/V+T from Maxim Integrated is a precision RTC, ideal for applications requiring exact time tracking. Effective implementation involves appropriate power supply connection, stable grounding, proper setup of the I2C interface with pull-up resistors, ensuring backup power, utilizing the 32kHz output, careful planning of signal routing, and strategic environmental placement. These steps are crucial for leveraging the DS3231MZ/V+T's capabilities in maintaining accurate time in various applications.
