Analog Devices Inc./Maxim Integrated DS3231MZ/V+

Part No.:: DS3231MZ/V+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: DS3231MZ/V+.pdf

Description:: IC RTC CLK/CALENDAR I2C 8-SOIC

In Stock:: 2525

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS3231MZ/V+ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
Automotive, AEC-Q100
ProductStatus:
Not For New Designs
Type:
Clock/Calendar
Features:
Alarm, Leap Year, Square Wave Output
MemorySize:
-
TimeFormat:
HH:MM:SS (12/24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
I²C, 2-Wire Serial
Voltage-Supply:
2.3V ~ 5.5V
Voltage-SupplyBattery:
2.3V ~ 5.5V
Current-Timekeeping(Max):
130µA ~ 200µA @ 3.63V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

DS3231MZ/V+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS3231MZ/V+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS3231MZ/V+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS3231MZ/V+ information

Views：

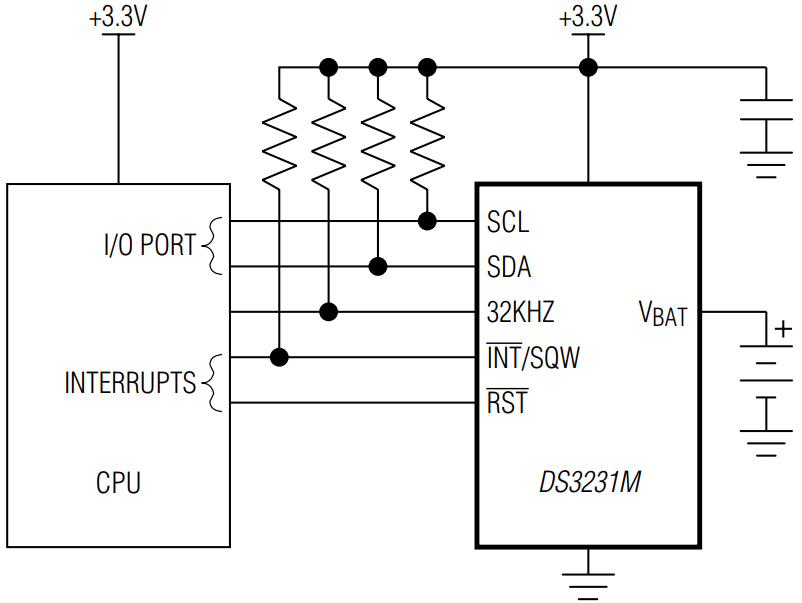

DS3231MZ/V+ Typical application Circuitry

DS3231MZ V+

The DS3231MZ/V+ is a model within the DS3231 series of real-time clocks (RTCs) produced by Maxim Integrated. This device is highly acclaimed for its precision and accuracy in timekeeping, featuring integrated temperature compensation. It's particularly suited for applications where time tracking is crucial, such as in embedded systems, data loggers, and other consumer electronics that require precise time and date information.

1. Power Supply Connection: The DS3231MZ/V+ operates within a voltage range typically from 2.3V to 5.5V. Connect the VCC pin to a power source that can provide a stable voltage within this range. The choice of supply voltage should be made in accordance with the overall requirements of your system and the compatibility with other connected components.

2. Grounding the Device: The GND pin of the DS3231MZ/V+ should be connected to the ground of your circuit. A secure ground connection is essential for the device's stability and to minimize the noise that could potentially affect the accuracy of the RTC.

3. I2C Communication Interface: For communication, this device utilizes the I2C interface. The SCL (Serial Clock Line) and SDA (Serial Data Line) pins on your microcontroller or motherboard should be linked to their corresponding equivalents. Incorporating pull-up resistors on these lines is necessary for the I2C protocol to operate effectively.

4. Backup Power Setup: The DS3231MZ/V+ includes a provision for backup power, typically through a coin cell battery, ensuring continuous timekeeping even when the primary power source is unavailable. This is crucial for maintaining accurate timekeeping in applications where consistent operation is required.

5. 32kHz Output Feature: The device offers a 32kHz output, available via a dedicated pin. This output can be used as a reference clock in your system, providing a stable frequency output that can be useful in various timing-related applications.

6. Considerations for Signal Integrity: When integrating the DS3231MZ/V+ into your design, attention should be paid to the routing of the I2C communication lines. Proper routing helps in maintaining signal integrity and reducing potential interference.

7. Placement for Environmental Stability: Given that the DS3231MZ/V+ is sensitive to environmental conditions, placing it in a location that is shielded from extreme temperature variations is advisable. This ensures the highest level of accuracy in timekeeping.

In summary, the DS3231MZ/V+ from Maxim Integrated is a high-precision RTC, ideal for use in systems where accurate time and date information are essential. Effective use of this device involves proper power supply connections, grounding, setting up the I2C communication with necessary pull-up resistors, ensuring backup power, utilizing the 32kHz output, careful signal routing, and considering the placement for environmental stability. These considerations are key to fully exploiting the DS3231MZ/V+'s capabilities in any time-sensitive application.
