Analog Devices Inc./Maxim Integrated DS3231MZ+TRL

Part No.:: DS3231MZ+TRL

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: DS3231MZ+TRL.pdf

Description:: IC RTC CLK/CALENDAR I2C 8-SOIC

In Stock:: 3750

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS3231MZ+TRL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Clock/Calendar
Features:
Alarm, Leap Year, Square Wave Output
MemorySize:
-
TimeFormat:
HH:MM:SS (12/24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
I²C, 2-Wire Serial
Voltage-Supply:
2.3V ~ 5.5V
Voltage-SupplyBattery:
2.3V ~ 5.5V
Current-Timekeeping(Max):
130µA ~ 200µA @ 3.63V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

DS3231MZ+TRL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS3231MZ+TRL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS3231MZ+TRL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS3231MZ+TRL information

Views：

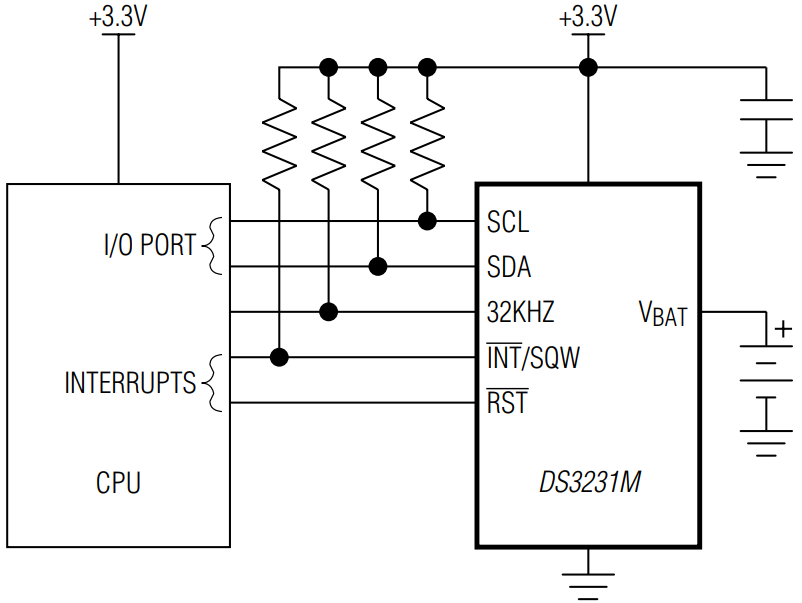

DS3231MZ+TRL Typical application Circuitry

DS3231MZ+TRL

The DS3231MZ+TRL is a variant in the DS3231 series of real-time clocks (RTCs) from Maxim Integrated. It is distinguished for its high precision and integrated temperature compensation, making it exceptionally accurate in timekeeping. The DS3231MZ+TRL is widely used in applications where maintaining an accurate time base is essential, such as in data logging, industrial control systems, and other time-sensitive electronics.

1. Power Supply Configuration: The DS3231MZ+TRL operates within a voltage range of 2.3V to 5.5V. To connect it, the VCC pin should be attached to a power source that falls within this specified range. Selecting an appropriate supply voltage is important for ensuring the RTC functions correctly and is compatible with other components in your system.

2. Ground Connection: For stable operation, the GND pin of the DS3231MZ+TRL needs to be connected to the ground in your circuit. A proper ground connection is crucial for reducing noise and enhancing the accuracy of the RTC.

3. I2C Communication Lines: Communication with the DS3231MZ+TRL is facilitated through an I2C interface. This requires connecting the SDA (Serial Data Line) and SCL (Serial Clock Line) pins to the corresponding I2C lines on your microcontroller or I2C bus. It is also essential to use pull-up resistors on both the SDA and SCL lines for the I2C protocol to function effectively.

4. Backup Power Input: The DS3231MZ+TRL includes a feature for backup power (typically through a coin cell battery), ensuring the RTC continues to keep time accurately even when the primary power source is removed. This is particularly valuable in applications where uninterrupted timekeeping is necessary.

5. 32kHz Output Pin: The DS3231MZ+TRL offers a 32kHz output, which can be used as a reliable frequency reference in various applications, especially where additional timing signals are required.

6. Ensuring Signal Integrity: In integrating the DS3231MZ+TRL into your design, careful planning of the I2C communication line routing is important. Proper routing helps maintain signal integrity and minimize potential interference.

7. Considerations for Environmental Factors: The placement of the DS3231MZ+TRL should be in an environment that avoids extreme temperature fluctuations, as significant temperature changes can impact the precision of the RTC.

In summary, the DS3231MZ+TRL is a highly precise RTC, suitable for a wide array of applications that require accurate timekeeping. Effective use of this device involves proper power supply connection, secure grounding, setting up I2C communication with pull-up resistors, ensuring a backup power source, utilizing the 32kHz output, careful signal routing, and consideration of environmental factors. These steps are essential for maximizing the performance of the DS3231MZ+TRL in maintaining accurate time in various electronic applications.
