Analog Devices Inc./Maxim Integrated DS1687-5IND+

Part No.:: DS1687-5IND+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 24-DIP Module (0.600, 15.24mm)

Datasheet:: DS1687-5IND+.pdf

Description:: IC RTC CLK/CALENDAR PAR 24-EDIP

In Stock:: 3921

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS1687-5IND+ Specifications

Package/Case:
24-DIP Module (0.600, 15.24mm)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
Clock/Calendar
Features:
Alarm, NVSRAM, Square Wave Output, Y2K
MemorySize:
242B
TimeFormat:
HH:MM:SS (12/24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
Parallel
Voltage-Supply:
4.5V ~ 5.5V
Voltage-SupplyBattery:
2.5V ~ 3.7V
Current-Timekeeping(Max):
3mA @ 5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

DS1687-5IND+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS1687-5IND+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS1687-5IND+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS1687-5IND+ information

Views：

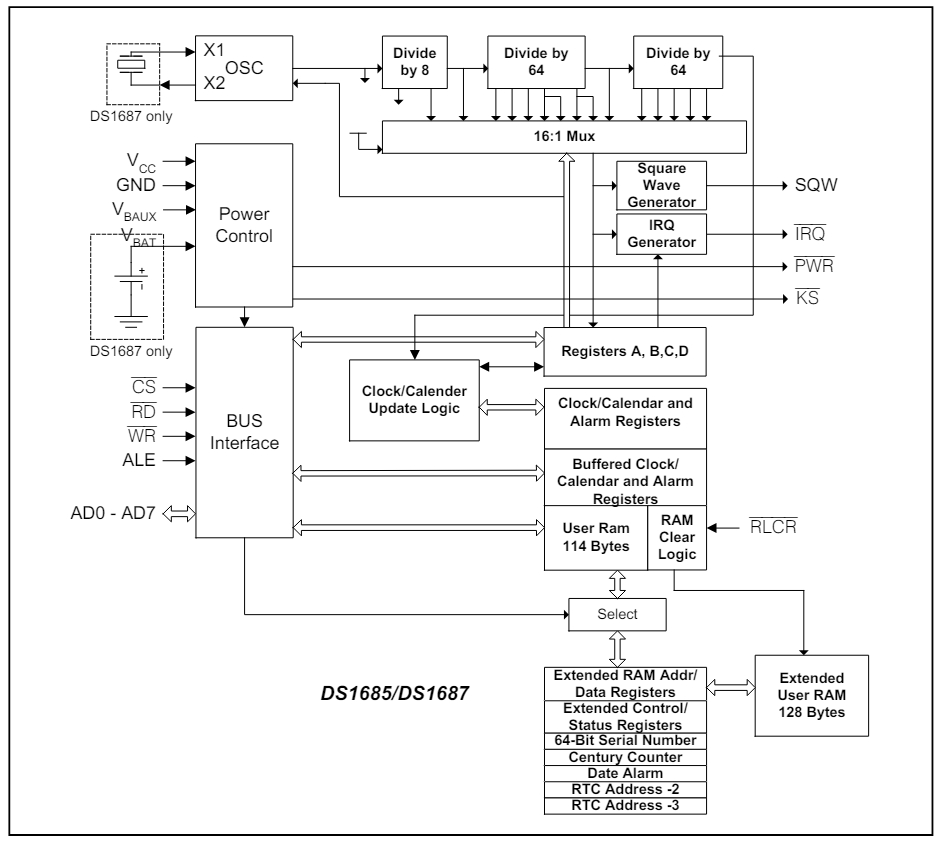

DS1687-5IND+ Typical application Circuitry

DS1687-5IND+

The DS1687-5IND+ is an integrated Real-Time Clock (RTC) and non-volatile (NV) SRAM controller designed by Maxim Integrated. It is specifically engineered for applications that demand accurate timekeeping and data retention across power cycles, making it an invaluable component in environments where reliability is crucial. The "IND" suffix indicates that this variant is suited for industrial applications, capable of operating under wider temperature ranges and harsher conditions.

Key Features and Parameters:

- Accurate Timekeeping: Features a built-in crystal oscillator that ensures precise time measurement.

- Non-Volatile SRAM: Offers built-in NV SRAM for data retention without external power, safeguarding critical information during power outages.

- Battery Backup: Includes an integrated battery input for continuous operation, even when external power is lost.

- Industrial Temperature Range: Operates across -40°C to +85°C, suitable for challenging industrial environments.

- Serial Interface: Allows for easy configuration and data access, facilitating integration with a wide array of microcontrollers and processors.

Application Scenario – Industrial Control Systems:

In industrial control systems, the DS1687-5IND+ can serve as a critical component for logging events, maintaining system time, and preserving configuration settings during power failures.

Circuit Design Details:

1. Power Supply and Backup:

- VCC (Pin 24): Connect to a stable 5V power source. Place a 0.1µF decoupling capacitor close to this pin to ensure clean power delivery.

- VBACK (Pin 20): Attach to an external battery to maintain clock and SRAM operation during power loss. A diode in series with the battery prevents reverse charging.

2. Memory and Timekeeping Interface:

- Data Lines (D0-D7, Pins 1-8): These bidirectional pins should be connected to the data bus of the primary microcontroller for data read/write operations.

- Address Lines (A0-A12, scattered across various pins): Connect to the microcontroller's address outputs to select specific memory locations within the SRAM for operations.

3. Control Signals for Operation:

- Read (RD, Pin 22) and Write (WR, Pin 23): Active-low signals that control the direction of data flow. These should be tied to the corresponding control outputs on the microcontroller.

- Chip Enable (CE, Pin 26): An active-low pin that, when pulled low, enables the DS1687-5IND+ for operation, connecting it to a control line from the microcontroller.

4. Timekeeping Accuracy:

- Oscillator Connections (X1 and X2, Pins 15 and 16): Connect a 32.768 kHz crystal across these pins. Select capacitors for the crystal load as specified by the manufacturer to ensure the accuracy of the RTC.

5. Alarm and Interrupts:

- Interrupt Request (IRQ, Pin 13): Utilize this output to signal the microcontroller about alarms or periodic timekeeping events, connecting it to an interrupt input on the microcontroller.

Design Considerations:

- EMI Protection: Industrial environments can be rich in electromagnetic interference. Shielding and careful PCB layout can mitigate potential disruptions to the DS1687-5IND+'s operations.

- Battery Selection and Lifecycle: Choose a battery with a proven track record in industrial applications. Monitor the battery's voltage to anticipate replacement needs.

- Thermal Management: Despite the DS1687-5IND+'s industrial rating, consider passive cooling solutions if the chip is located near heat-generating components.

- Firmware Integration: Develop firmware that effectively leverages the DS1687-5IND+'s features, such as utilizing alarms for task scheduling or handling interrupts for event-driven actions.

- Signal Integrity: For the data and address buses, adhere to best practices in trace routing and termination to preserve signal integrity, especially in noisy industrial environments.

Employing the DS1687-5IND+ in an industrial control system scenario highlights its robustness and reliability in maintaining operational continuity and data integrity, ensuring accurate timekeeping and data preservation across challenging conditions. This application underscores the DS1687-5IND+'s value in enhancing the resilience and functionality of critical industrial systems.
