Analog Devices Inc./Maxim Integrated DS1302ZN+T&R

Part No.:: DS1302ZN+T&R

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: DS1302ZN+T&R.pdf

Description:: IC RTC CLK/CALENDAR SER 8-SOIC

In Stock:: 3189

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS1302ZN+T&R Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Clock/Calendar
Features:
Leap Year, NVSRAM, Trickle-Charger
MemorySize:
31B
TimeFormat:
HH:MM:SS (12/24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
3-Wire Serial
Voltage-Supply:
2V ~ 5.5V
Voltage-SupplyBattery:
2V ~ 5.5V
Current-Timekeeping(Max):
0.3µA ~ 1µA @ 2V ~ 5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

DS1302ZN+T&R this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS1302ZN+T&R price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS1302ZN+T&R to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS1302ZN+T&R information

Views：

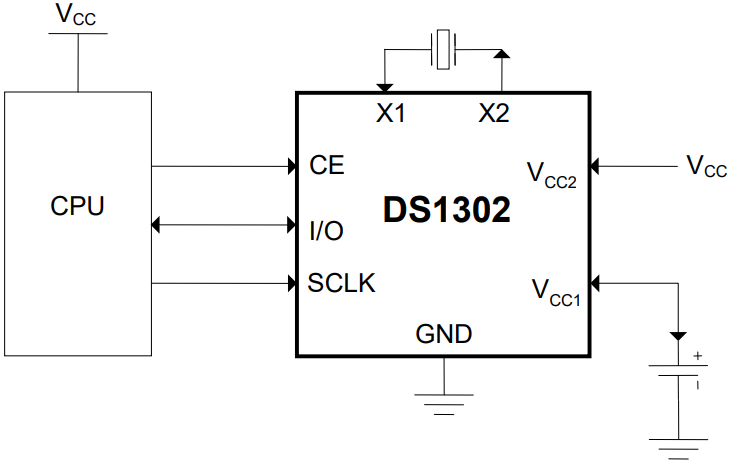

DS1302ZN+T&R Typical application Circuitry

DS1302ZN+T&R

The DS1302ZN+T&R is a variant in the DS1302 series of real-time clock (RTC) chips, manufactured by Maxim Integrated. These chips are distinguished for their ability to keep accurate time and date, including leap year compensation, making them highly suitable for applications such as embedded systems, consumer electronics, and data logging devices. The DS1302ZN+T&R, in particular, is noted for its low power consumption and its capability to be backed up by a battery, ensuring timekeeping continues even during power loss.

1. Power Supply Setup: The DS1302ZN+T&R operates with a voltage range from 2.0V to 5.5V. Connect the VCC2 pin to an appropriate power source within this specified range. Additionally, there is a VCC1 pin for backup power, typically connected to a 3V coin cell battery, crucial for maintaining timekeeping functions during periods when the primary power supply is unavailable.

2. Grounding the Device: Connect the GND pin of the DS1302ZN+T&R to the ground of your circuit. This step is vital for ensuring the chip's operational stability and effectiveness.

3. Serial Interface Configuration: The DS1302ZN+T&R utilizes a three-wire interface for communication. The SCLK pin, which is the Serial Clock, should be connected to a clock output from a microcontroller. The I/O pin, serving as the data line, needs to be linked to a serial data pin on your microcontroller. The CE (Chip Enable) pin, essential for initiating and terminating data transfer, must be connected to a digital output pin on the microcontroller.

4. Crystal Oscillator Connection: Accurate timekeeping in the DS1302ZN+T&R is achieved with an external 32.768 kHz crystal oscillator, connected to the X1 and X2 pins. The precision of this crystal oscillator is fundamental to the timekeeping accuracy of the chip.

5. Making Use of the Chip's Features: The DS1302ZN+T&R is equipped with 31 bytes of static RAM, which can be utilized for data storage, and manages important functions such as the calendar and clock. These features are controlled via the serial interface, providing access to and control over the chip's registers. The chip also includes a programmable trickle charger for the backup battery.

6. PCB Layout Designing: In the PCB design, ensure that the DS1302ZN+T&R is situated away from high-frequency noise sources. Special attention should be given to the crystal oscillator circuitry to preserve the accuracy of the timekeeping signal.

7. Incorporating Protective Measures: To stabilize and protect the DS1302ZN+T&R from electrical disturbances, consider adding resistors and capacitors in the circuit. These components are especially useful in environments with electrical fluctuations.

In summary, the DS1302ZN+T&R is a highly efficient and reliable RTC chip, ideal for various applications where accurate timekeeping is crucial. Proper connections for power supply, grounding, serial communication, and crystal oscillator installation are key. Additionally, thoughtful PCB design and the inclusion of protective components ensure the DS1302ZN+T&R functions effectively in its intended application.
