Name: DS1302Z+T&R/C07
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS1302Z+T&R/C07
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc./Maxim Integrated DS1302Z+T&R/C07

Part No.:: DS1302Z+T&R/C07

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: DS1302Z+T&R/C07.pdf

Description:: IC RTC CLK/CALENDAR SER 8-SOIC

In Stock:: 3795

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS1302Z+T&R/C07 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
Type:
Clock/Calendar
Features:
Leap Year, NVSRAM, Trickle-Charger
MemorySize:
31B
TimeFormat:
HH:MM:SS (12/24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
3-Wire Serial
Voltage-Supply:
2V ~ 5.5V
Voltage-SupplyBattery:
2V ~ 5.5V
Current-Timekeeping(Max):
0.3µA ~ 1µA @ 2V ~ 5V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

DS1302Z+T&R/C07 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS1302Z+T&R/C07 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS1302Z+T&R/C07 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS1302Z+T&R/C07 information

Views：

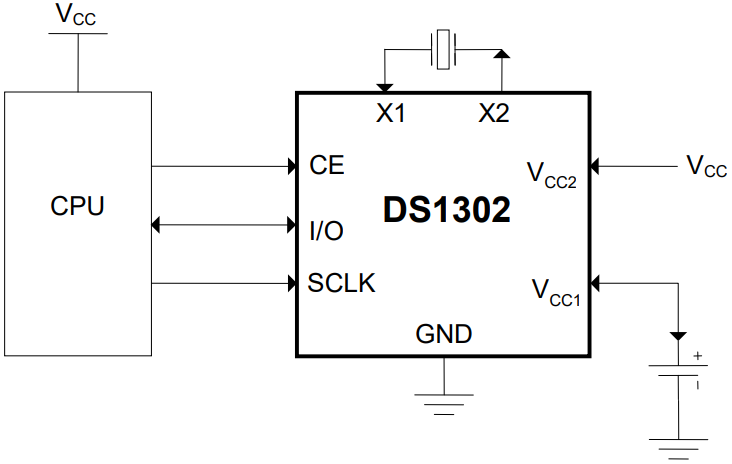

DS1302Z+T&R/C07 Typical application Circuitry

DS1302Z+T&R C07

The DS1302Z+T&R/C07 is a model within the DS1302 series, a collection of trickle-charge timekeeping chips designed by Maxim Integrated. This particular model, the DS1302Z+T&R/C07, is known for its efficiency in maintaining accurate time and date, including leap years, making it a staple in applications such as embedded systems, security systems, and other electronics that require reliable timekeeping.

1. Providing Power to the DS1302Z+T&R/C07: This chip operates in a voltage range from 2.0V to 5.5V. Connect the VCC2 pin to a power source within this specified range. Additionally, the DS1302Z+T&R/C07 has a backup battery input, VCC1, which is crucial for keeping the clock running when the main power supply is off. Typically, a 3V coin cell battery is used for this purpose.

2. Establishing a Ground Connection: The GND pin of the DS1302Z+T&R/C07 needs to be connected to the ground of your circuit. This connection is essential for the chip's stability and performance.

3. Configuring the Serial Interface: Communication with the DS1302Z+T&R/C07 is managed through a three-wire interface. The Serial Clock pin, SCLK, should be linked to a clock source, often a microcontroller. The I/O pin, functioning as the data line, needs to be linked to a serial data pin on your microcontroller. Lastly, the CE (Chip Enable) pin, which activates data transfer, should be connected to a digital control pin on the microcontroller.

4. Connecting the Crystal Oscillator: The DS1302Z+T&R/C07 relies on an external 32.768 kHz crystal oscillator, connected across the X1 and X2 pins. This crystal is critical for the accurate timekeeping functionality of the chip.

5. Utilizing the Chip's Features: The DS1302Z+T&R/C07 offers 31 bytes of static RAM for data storage and a full calendar with leap year compensation. These features are controlled through the serial interface, where data can be written to or read from the chip's registers.

6. Designing the PCB Layout: When laying out the PCB, ensure that the area around the DS1302Z+T&R/C07, especially near the crystal oscillator, is free from electrical noise and interference. Maintaining accurate timekeeping requires keeping trace lengths small and well-protected.

7. Incorporating Protective Elements: To protect the DS1302Z+T&R/C07 from electrical disturbances, consider adding resistors and capacitors to the circuit. These components can help in stabilizing the power supply and safeguarding the chip against voltage spikes.

In essence, the DS1302Z+T&R/C07 is a robust and reliable chip for timekeeping purposes, suitable for a wide range of electronic applications. Proper connection to a power source, grounding, and configuration of the serial interface are fundamental. Additionally, correct installation of the crystal oscillator and thoughtful PCB design are critical to leverage the full capabilities of the DS1302Z+T&R/C07.

DS1302Z+T&R/C07 FAQ

1. How to order DS1302Z+T&R/C07 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that DS1302Z+T&R/C07 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the DS1302Z+T&R/C07. All suppliers must pass our qualification reviews before they can publish their products including DS1302Z+T&R/C07 on icwhale.com; we pay more attention to the channels and quality of DS1302Z+T&R/C07 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the DS1302Z+T&R/C07 price and inventory displayed accurate?

The price and inventory of DS1302Z+T&R/C07 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of DS1302Z+T&R/C07?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the DS1302Z+T&R/C07 we delivered, we will accept the replacement or return of the DS1302Z+T&R/C07 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of DS1302Z+T&R/C07.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
