Bosch Sensortec BMP280

The BMP280 is a compact and highly accurate barometric pressure sensor that is often used in various weather monitoring and altitude measuring applications. With its precise readings and low power consumption, the BMP280 has become one of the most popular sensors for makers and engineers alike. In this beginner's guide, we will walk you through the essential aspects of the BMP280 pinout, setup with Arduino, and how to use it for barometric pressure and altitude measurement.

Table of Contents

• What is the BMP280 Sensor?
• Understanding the BMP280 Pinout
• BMP280 Circuits
• BMP280 Module Overview
• Setting Up the BMP280 with Arduino
• Interfacing the BMP280 with Arduino
• Understanding BMP280 Specs
• Troubleshooting Common BMP280 Issues
• BMP280 Package and Footprint
• Sum up
• Frequently Asked Questions

What is the BMP280 Sensor?

The BMP280 sensor is a high-precision barometer and altimeter that measures atmospheric pressure and temperature. It is often found in weather stations, altimeters, and IoT devices. The sensor can be interfaced with microcontrollers like Arduino to gather accurate atmospheric data.

BMP280 Barometric Pressure Sensor

At the core of the BMP280 is its ability to measure barometric pressure, which is useful in applications like weather forecasting, altitude measurement, and even in drones. The BMP280 barometer works by measuring the atmospheric pressure in its environment and converting it into a digital signal, which can then be read by a microcontroller.

The BMP280 is a digital sensor, which means it communicates with your Arduino via a serial interface, either I2C or SPI. This makes it easier to connect and use with most microcontrollers.

Understanding the BMP280 Pinout

Before you can start using the BMP280 with your Arduino, it's essential to understand its pinout. The BMP280 module is usually provided with a set of pins that connect the sensor to your microcontroller.

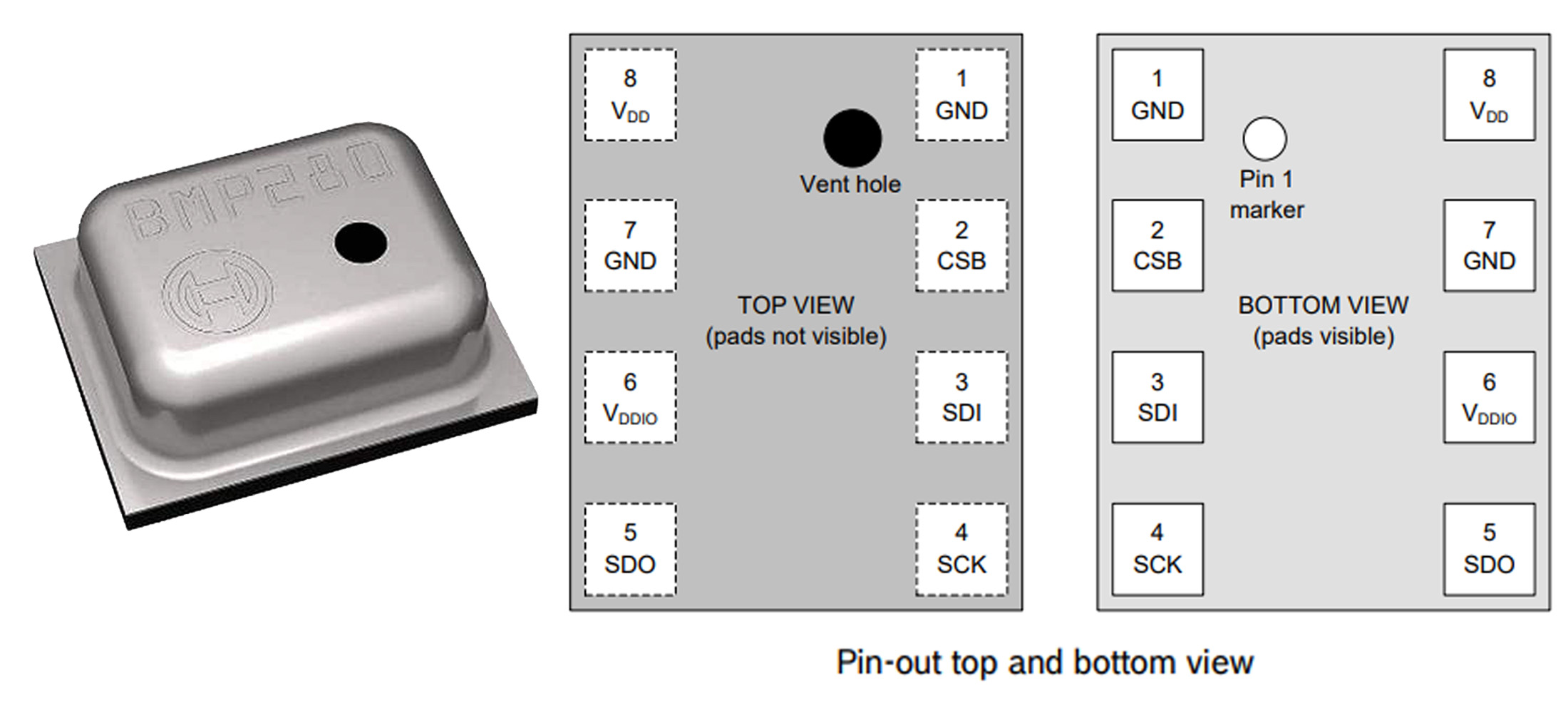

BMP280 Pinout

BMP280 Pinout

By looking at the BMP280 schematic, you can better understand how the sensor connects to an Arduino or other microcontroller.

BMP280 Circuits

When using the BMP280 sensor, it is important to understand how to properly connect it to a microcontroller or development board. Below, we will explore the basic circuitry required to interface the BMP280 with the I2C and SPI communication protocols

BMP280 Typical application Circuitry

BMP280 Typical application Circuitry

This is a typical BMP280 application circuit, showing essential connections for integrating the sensor:

Power Supply:

VDD connects to a regulated power source (3.3V/1.8V).

C1 (100nF) and C2 (100Ω) are decoupling components for power stability.

Ground:

GND pins connect to the system ground.

Data Communication:

SDI (MOSI), SDO (MISO), and SCK (Clock) for SPI.

CSB selects SPI mode.

I2C/SPI Addressing:

SDO configures the I2C address or serves as MISO for SPI.

BMP280 Module Overview

The BMP280 module is a compact breakout board featuring the BMP280 sensor, designed to simplify integration with microcontrollers like Arduino and Raspberry Pi. It typically includes pull-up resistors and capacitors for stable I2C or SPI communication, ensuring reliable data transfer. The module operates on a voltage range of 3.3V to 5V, making it compatible with various development boards.

This module is widely used in weather monitoring, altitude measurement, and IoT devices, thanks to its small size, low power consumption, and high accuracy. It is an ideal choice for projects requiring lightweight and portable components, such as drones, wearables, and portable weather stations.

Setting Up the BMP280 with Arduino

BMP280 Arduino

Now that you understand the basic pinout of the BMP280 and the general workings of the sensor, let's dive into how to set it up with an Arduino.

Components Required

Before starting with the setup, make sure you have the following components:

BMP280 sensor (or BMP280 module)

Arduino board (e.g., Arduino Uno, Arduino Nano)

Jumper wires

Breadboard (optional)

Wiring the BMP280 to Arduino

If you are using the I2C communication protocol (which is the most common method for interfacing the BMP280 with Arduino), follow these steps to connect the BMP280 to the Arduino.

VCC to 3.3V or 5V on the Arduino.

GND to GND on the Arduino.

SCL to the SCL pin on the Arduino (A5 for Arduino Uno).

SDA to the SDA pin on the Arduino (A4 for Arduino Uno).

For SPI communication, the connections will differ slightly. Ensure you follow the BMP280 schematic for SPI wiring.

Installing the BMP280 Library

In order to communicate with the BMP280 sensor, you need to install the BMP280 library on your Arduino IDE. Here's how you can do that:

Open the Arduino IDE.

Go to Sketch > Include Library > Manage Libraries.

In the Library Manager, search for "Adafruit BMP280".

Click Install on the Adafruit BMP280 library.

Once the library is installed, you can use it to read sensor data from the BMP280 sensor and display it on your Arduino.

Interfacing the BMP280 with Arduino

Reading Barometric Pressure and Temperature

Once your wiring is done and the library is installed, you can begin reading barometric pressure and temperature values. Using the bmp280 arduino library, you can initialize the sensor and begin collecting data with just a few lines of code.

The bmp280 datasheet provides detailed information on how the sensor works, including how to convert the sensor readings into meaningful units such as hPa for pressure and degrees Celsius for temperature.

Altitude Measurement

Another interesting feature of the BMP280 is its ability to measure altitude. By using the barometric pressure data, the sensor can calculate the approximate altitude of your location. The algorithm for altitude calculation depends on the current sea-level pressure, which is usually provided by the sensor or can be manually set based on local weather data.

This feature is particularly useful for outdoor applications such as hiking, drones, or weather balloons.

Understanding BMP280 Specs

Before starting your project, it's important to familiarize yourself with the BMP280 specs to fully understand the capabilities of the sensor. Some key specifications include:

Pressure Range: 300 hPa to 1100 hPa

Temperature Range: -40°C to 85°C

Operating Voltage: 1.71V to 3.6V

Accuracy: ±1 hPa for pressure, ±1°C for temperature

Power Consumption: 3.6 µA in low power mode

These specifications make the BMP280 a reliable and efficient sensor for a wide range of applications, from consumer electronics to scientific research.

Troubleshooting Common BMP280 Issues

While using the BMP280 sensor, you may run into some common issues. Here are a few troubleshooting tips:

No data output: Double-check your wiring connections and ensure that the sensor is powered correctly.

Incorrect readings: Verify that you are using the correct I2C address and check if there is interference with other sensors.

Library issues: Make sure you have installed the correct library version for your Arduino IDE.

BMP280 Package and Footprint

Package

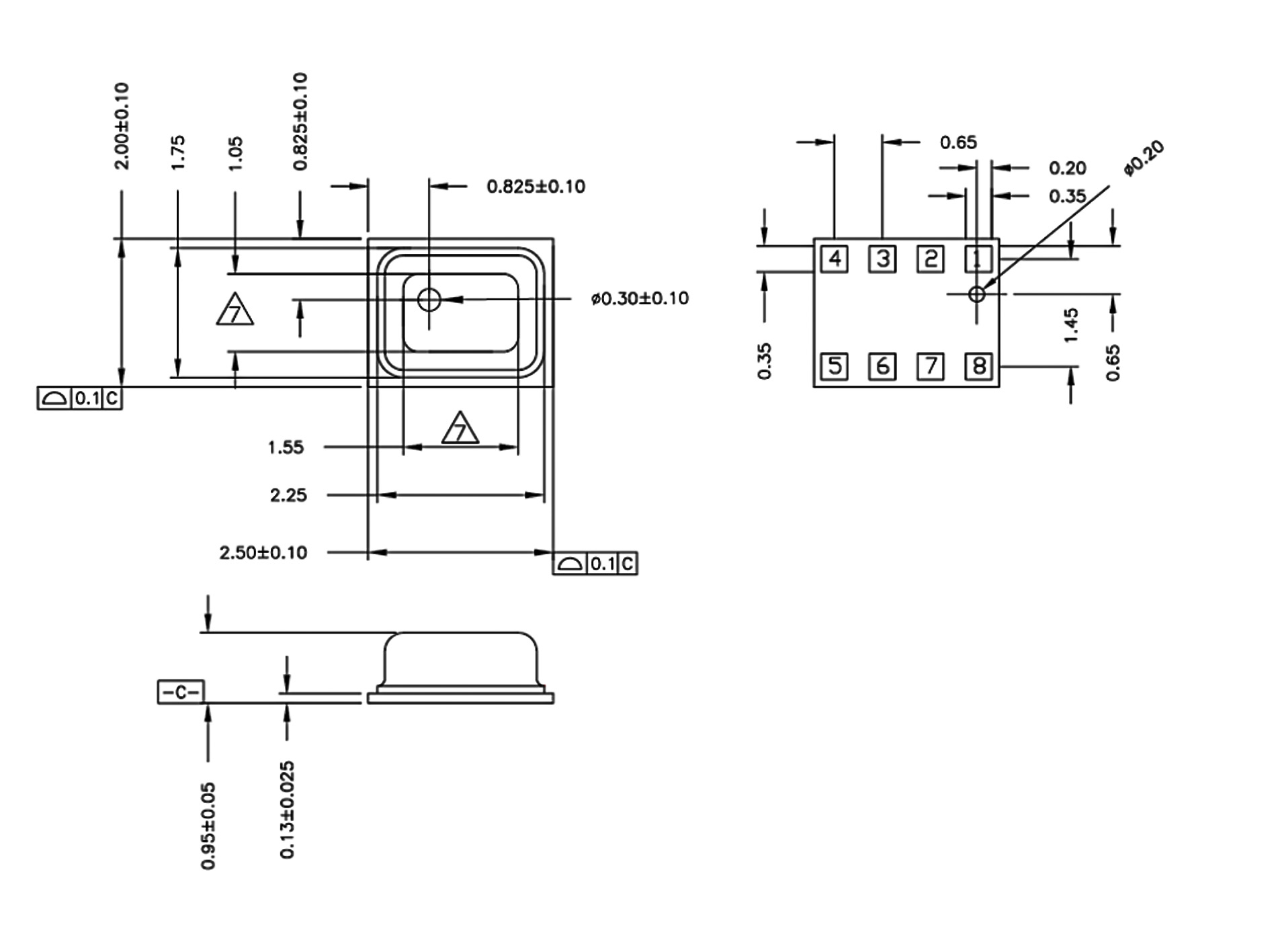

BMP280 package

Type: LGA-8

Dimensions: 2.50 mm × 2.00 mm × 0.95 mm

Pin Pitch: 0.65 mm

Features: Vent hole on top, Pin 1 marking for orientation

Footprint

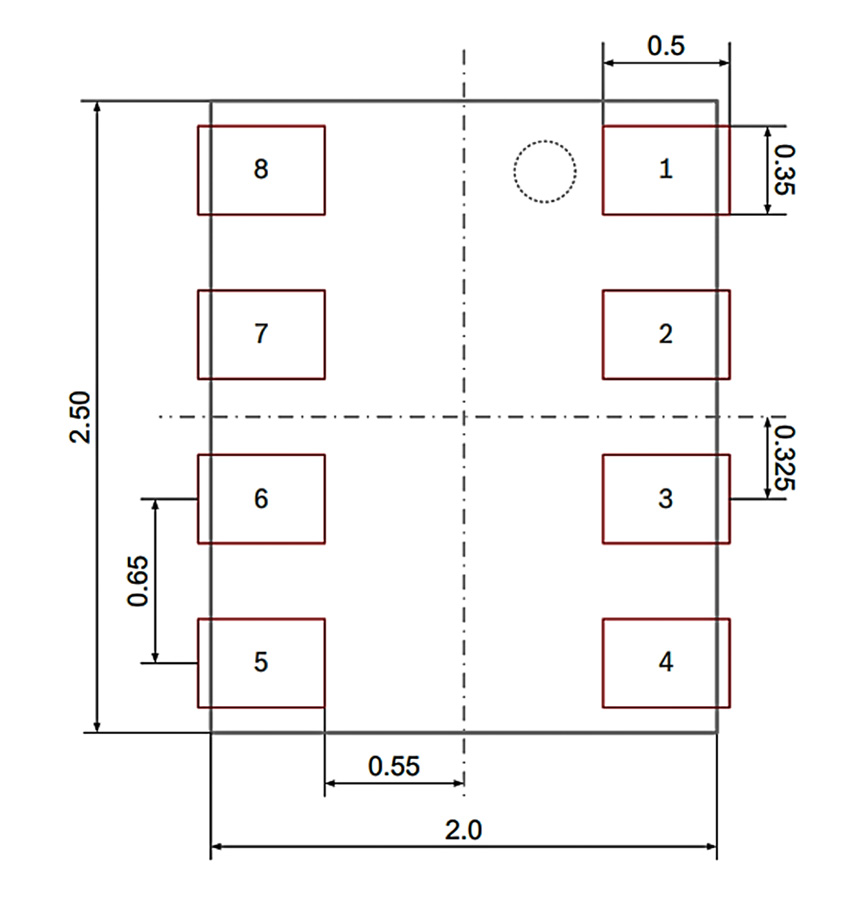

BMP280 footprint

Pad Size: 0.35 mm × 0.50 mm

Pad Spacing: 0.65 mm (center-to-center)

Edge Clearance: 0.5 mm from package edge to first pad

Notes: Include Pin 1 indicator; avoid blocking the vent hole.

Sum up

The BMP280 is a versatile and easy-to-use barometric pressure sensor that can be integrated into various projects with Arduino. By understanding the BMP280 pinout and following the setup steps outlined in this guide, you can begin to utilize the sensor for atmospheric pressure measurements, altitude calculations, and more.

Frequently Asked Questions

Can BMP280 be used for drone altitude stabilization?

Yes, the BMP280 is commonly used in drones to stabilize altitude.

Does BMP280 require pull-up resistors?

Yes, when using I2C communication, the BMP280 requires pull-up resistors (typically 10kΩ) on the SDA and SCL lines.

How much does a BMP280 cost?

Typically $2 to $10, depending on supplier and module type.

Where to find the BMP280 datasheet?

You can find the BMP280 datasheet on our website.

Alternatives to BMP280?

Options include BME280, MS5611, and LPS22HB.
