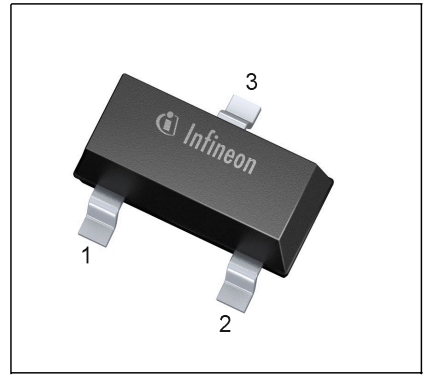

Infineon Technologies BFR93AE6327HTSA1

Part No.:: BFR93AE6327HTSA1

Manufacturer:: Infineon Technologies

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: BFR93AE6327HTSA1.pdf

Description:: RF TRANS NPN 12V 6GHZ SOT23-3

In Stock:: 3725

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BFR93AE6327HTSA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
TransistorType:
NPN
Voltage-CollectorEmitterBreakdown(Max):
12V
Frequency-Transition:
6GHz
NoiseFigure(dBTyp@f):
1.5dB ~ 2.6dB @ 900MHz ~ 1.8GHz
Gain:
9.5dB ~ 14.5dB
Power-Max:
300mW
DCCurrentGain(hFE)(Min)@IcVce:
70 @ 30mA, 8V
Current-Collector(Ic)(Max):
90mA
OperatingTemperature:
150°C (TJ)
MountingType:
Surface Mount
