ADS1248EVM-PDK information

Views：

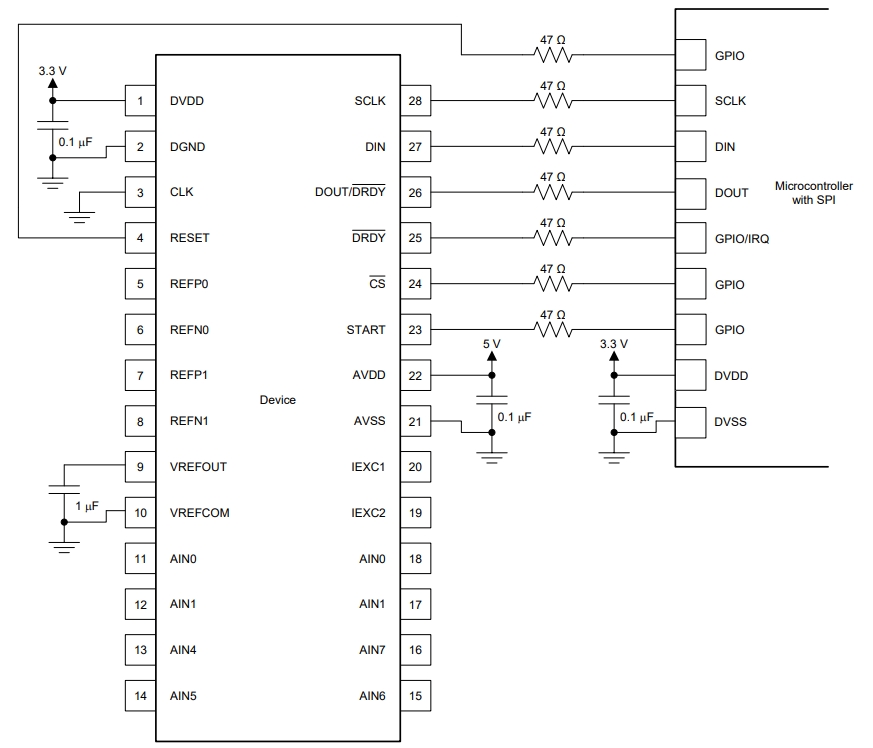

ADS1248EVM-PDK Typical application Circuitry

ADS1248EVM-PDK

The ADS1248EVM-PDK is a Performance Development Kit (PDK) for the ADS1248, which is a 24-bit, highly integrated, multichannel analog-to-digital converter (ADC) from Texas Instruments. The PDK includes an evaluation module (EVM) that facilitates the testing and development of applications using the ADS1248 chip. This kit is used in various high-precision measurement applications, including industrial process control, temperature sensing with RTDs or thermocouples, and pressure sensing.

1. High-Resolution ADC: The ADS1248 features a 24-bit resolution for precise data conversion.

2. Multiple Channels: Up to 8 differential or 15 single-ended inputs can be supported by it.

3. Integrated PGA: Includes a programmable gain amplifier for small signal amplification.

4. Low Power Consumption:Because of its effective power utilization, battery-operated systems can use it.

Application Scenario: Multichannel Temperature Monitoring

Circuit Connection Details for ADS1248 on the ADS1248EVM-PDK:

1. Power Supply: Ensure the ADS1248 on the EVM is connected to a stable power source. AVDD and DVDD should be between 2.7V and 5.5V.

2. Temperature Sensor Integration: Connect RTD sensors to the AIN0 to AIN7 pins for multichannel temperature monitoring.

3. Data Communication: Utilize the SPI interface of the ADS1248 for communication with a microcontroller by connecting the CS, SCLK, DIN, and DOUT pins.

4. Reference Voltage: Apply a precision reference voltage to the REFP and REFN pins to ensure accurate ADC conversions.

Design Considerations of ADS1248EVM-PDK:

1. Stable Power Supply: A clean and stable power source is essential for maintaining the precision of the ADC.

2. Sensor Selection and Wiring: Choose appropriate RTDs for your application and ensure proper wiring to minimize error.

3. SPI Communication Integrity: Implement a robust communication protocol to ensure error-free data transfer.

4. Environmental Factors: Be aware of environmental factors like temperature and electromagnetic interference that could affect sensor readings.

Conclusion

The ADS1248EVM-PDK is an essential tool for developing and testing applications using the ADS1248 ADC. Its high-resolution ADC, multiple channels, integrated PGA, and low power consumption make it suitable for a wide range of precision measurement applications. When designing a circuit with the ADS1248 on the ADS1248EVM-PDK, considerations like power supply stability, sensor selection, communication integrity, and environmental factors are crucial for achieving accurate and reliable measurements in applications such as multichannel temperature monitoring.
