Analog Devices Inc. AD9835BRUZ

Part No.:: AD9835BRUZ

Manufacturer:: Analog Devices Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD9835BRUZ.pdf

Description:: IC DDS 50MHZ 10BIT 16TSSOP

In Stock:: 3511

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9835BRUZ Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Resolution(Bits):
10 b
Masterfclk:
50 MHz
TuningWordWidth(Bits):
32 b
Voltage-Supply:
4.75V ~ 5.25V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD9835BRUZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9835BRUZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9835BRUZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9835BRUZ information

Views：

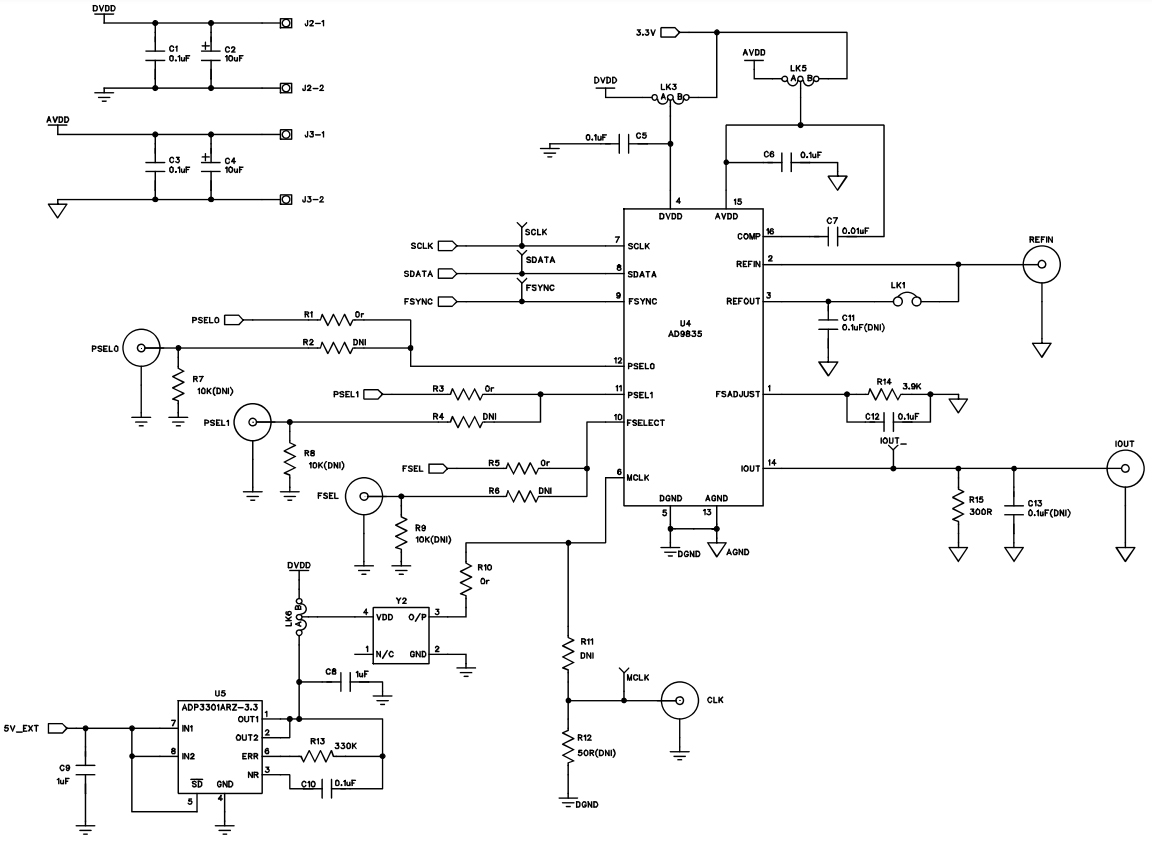

AD9835BRUZ Typical application Circuitry

AD9835BRUZ

AD9835BRUZ is a Direct Digital Synthesis (DDS) chip produced by Analog Devices. This chip is utilized to generate sine waves and triangular waves, making it suitable for various applications such as frequency synthesis, test and measurement equipment, and communication systems.

The AD9835BRUZ has several key parameters and features:

1. Supply voltage: 2.3V to 5.5V

2. Output frequency range: 0 MHz to 12.5 MHz

3. Resolution: 10 bits

4. Operating temperature range: -40°C to +85°C

Now, let's consider a specific application scenario of generating a sine wave output for a frequency synthesizer. Here is a detailed description of how to connect the AD9835BRUZ for this application:

1. Power Supply

- Connect VDD (pin 24) to a 3.3V supply, and connect GND (pin 12) to ground.

2. Clock Input

- Connect a clock source to MCLK (pin 25). The DDS's output frequency is set by the frequency of this clock source.

3. Digital Control Inputs

- Attach pin 23 (FSYNC) to a pin on your microcontroller that is used for digital output. This pin is used to frame the serial data input.

- Attach SDATA (pin 22) to your microcontroller's digital output pin. This pin is used to send serial data to the DDS.

- Attach pin 21 of SCLK to a microcontroller digital output pin. This pin is used to clock in the serial data.

4. Output

- Connect the output pin, OUT (pin 14), to your circuit where you need the sine wave signal.

When designing the circuit, it is important to consider the following:

1. Ensure that the supply voltage and clock frequency are within the specified range for the AD9835BRUZ.

2. If you are using a microcontroller to control the DDS, make sure that the microcontroller's digital output pins are compatible with the DDS's digital input pins.

3. Consider the impedance of the circuit where you are connecting the output of the DDS. This may affect the quality of the sine wave signal.

4. If you need to generate a precise frequency, you may need to use a crystal oscillator as the clock source for the DDS.

By following these guidelines, you should be able to successfully use the AD9835BRUZ to generate a sine wave output for your frequency synthesizer application.
