Analog Devices Inc. AD9833BRMZ

Part No.:: AD9833BRMZ

Manufacturer:: Analog Devices Inc.

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:

Description:: IC DDS 25MHZ 10BIT 10MSOP

In Stock:: 3032

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9833BRMZ Specifications

Package/Case:
10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
Resolution(Bits):
10 b
Masterfclk:
25 MHz
TuningWordWidth(Bits):
28 b
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

AD9833BRMZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9833BRMZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9833BRMZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9833BRMZ information

Views：

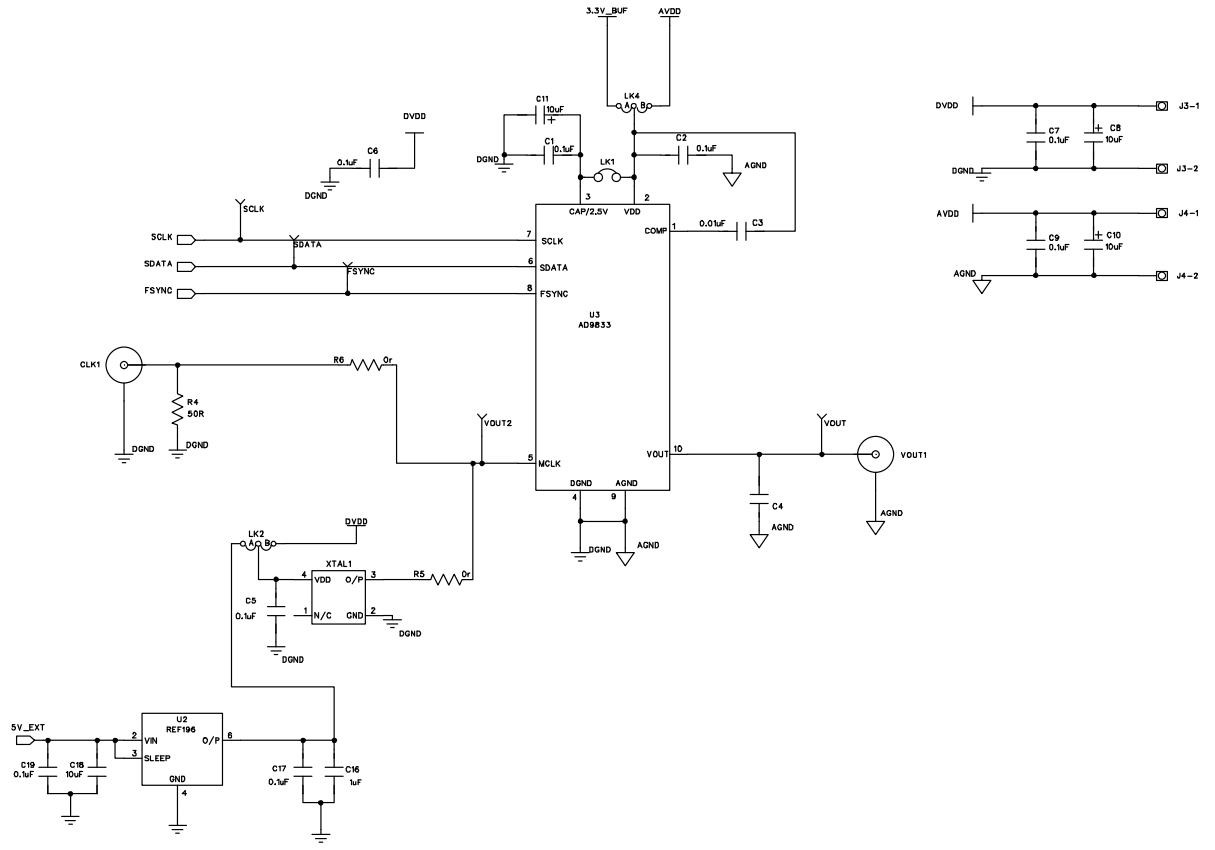

AD9833BRMZ Typical application Circuitry

AD9833BRMZ

The programmable waveform generator AD9833BRMZ can create square, triangle, and sine waveforms. The device is manufactured by Analog Devices and offers features like frequency, phase, and amplitude control, making it suitable for applications such as signal generation, communications, and control systems.

Application Scenario:

A common application for AD9833BRMZ is in function generators or arbitrary waveform generators used in test and measurement equipment.

Circuit Connection:

1. Power Supply:

- Connect the VCC pin of AD9833BRMZ to a 3V power supply, and connect the GND pin to the system ground.

2. Digital Communication:

- The AD9833BRMZ communicates with a microcontroller or computer via a 3-wire serial interface consisting of the SDATA (Serial Data), SCLK (Serial Clock), and FSYNC (Frame Sync) pins. Attach these pins to the microcontroller's or computer's matching pins.

3. Frequency and Phase Registers:

- Writing to the AD9833BRMZ internal registers will change the output waveform's frequency and phase. Use the serial interface to write the desired values to these registers.

4. Waveform Selection:

- The waveform type (sine, triangular, or square) can be selected by writing to the control register of AD9833BRMZ via the serial interface.

5. Output:

- Connect the OUT pin of AD9833BRMZ to the input of the device that will receive the waveform signal.

Design Considerations:

When designing a circuit with AD9833BRMZ, consider the following:

1. Signal Integrity:

- Ensure that the communication lines between the AD9833BRMZ and the microcontroller or computer are free from noise and interference.

2. Power Supply Stability:

- The power supply for AD9833BRMZ should be stable and within the specified voltage range to ensure accurate waveform generation.

3. Clock Stability:

- The clock signal should be stable and have low jitter to ensure accurate frequency generation.

4. Synchronization:

- Ensure that the FSYNC signal is properly synchronized with the serial data and clock signals to avoid communication errors.

By considering these factors, you can ensure that the circuit with AD9833BRMZ will function correctly and provide accurate and reliable waveform generation.
