Name: AD5933YRSZ
Brand: Analog Devices Inc.
SKU: AD5933YRSZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD5933YRSZ

Part No.:: AD5933YRSZ

Manufacturer:: Analog Devices Inc.

Package:: 16-SSOP (0.209, 5.30mm Width)

Datasheet:: AD5933YRSZ.pdf

Description:: IC DDS 16.776MHZ 12BIT 16SSOP

In Stock:: 2088

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5933YRSZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5933YRSZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5933YRSZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

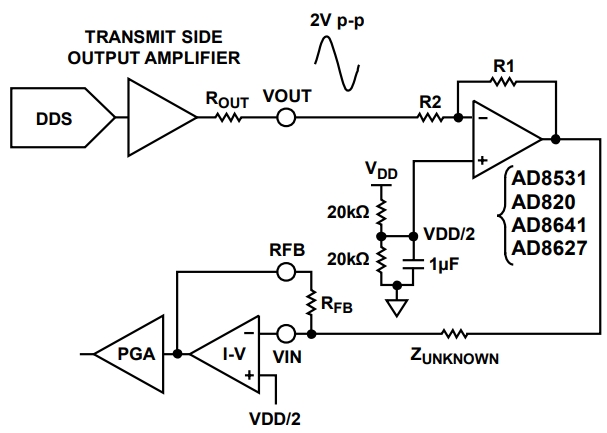

AD5933YRSZ Typical application Circuitry

The 12-bit, 1 MSPS analog-to-digital converter (ADC) and on-chip frequency generator are integrated in the high precision impedance converter system solution known as the AD5933YRSZ. Its primary function is to output a frequency sweep and then read back the system's response, which is used to determine impedance.

Key Application Areas for AD5933YRSZ

- Bio-Impedance Measurements: In healthcare and fitness to analyze biological tissues.

- Corrosion Analysis: Studying the deterioration of metals.

- Complex Impedance Calculation: In electrical engineering to study system responses.

AD5933YRSZ Parameters & Features

- Frequency Range: It can generate frequencies from 1 kHz to 100 kHz.

- Integrated ADC: 12-bit ADC onboard for high-resolution measurements.

- On-Chip DSP Engine: For DFT calculations.

- Interface: Communicates via I²C interface.

Scenario: Bio-Impedance Measurement

Let's assume we're designing a system that gauges bio-impedance to deduce muscle health:

1. Power Supplies:

- VDD (Pin 12) and VDD2 (Pin 28): Connect these pins to a +3.3 V supply.

- GND (Pin 13): This pin should be tied to your system ground.

2. Signal Generation & Capture:

- VOUT (Pin 6): This is the system's sine wave output. It's wired directly to the bioelectrode that remains in contact with the skin.

- VIN (Pin 8): Post interaction with the tissue, the signal is returned to this pin. An appropriate buffer may be utilized to optimize signal integrity.

3. Communication:

- SDA (Pin 10) and SCL (Pin 9): These pins communicate with the microcontroller using the I²C protocol.

4. External Oscillator:

- MCLK (Pin 7): For the system to function efficiently, an external clock source, typically 16.776 MHz, should be connected here.

Design Considerations:

- Electrode Selection: The AD5933YRSZ quality and material of the bioelectrode are vital. They should ensure minimal skin irritation while retaining good signal quality.

- Buffering: To guarantee signal integrity and eliminate any unwanted interference, a high-quality buffer between the tissue and the AD5933YRSZ VIN pin may be essential.

- Isolation: Especially in bio-impedance measurements, isolation from any high-frequency or high-voltage components is paramount to ensure safety.

- Ambient Noise: Considering bio-impedance measurements can be delicate, ensuring minimal ambient electrical noise is critical for accurate readings.

To summarize, the AD5933YRSZ offers an efficient and precise system solution for complex impedance measurement applications. When incorporated with diligence and consideration of the above points, it promises impeccable performance.

AD5933YRSZ information

AD5933YRSZ Specifications

Package/Case:
16-SSOP (0.209, 5.30mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
Resolution(Bits):
12 b
Masterfclk:
16.776 MHz
TuningWordWidth(Bits):
-
Voltage-Supply:
2.7V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount
