Broadcom Limited ACPL-P480-500E

Part No.:: ACPL-P480-500E

Manufacturer:: Broadcom Limited

Package:: 6-SOIC (0.180, 4.58mm Width)

Datasheet:: ACPL-P480-500E.pdf

Description:: OPTOISO 3.75KV PUSH PULL 6SO

In Stock:: 2962

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACPL-P480-500E Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
NumberofChannels:
1
Inputs-Side1/Side2:
1/0
Voltage-Isolation:
3750Vrms
CommonModeTransientImmunity(Min):
20kV/µs
InputType:
DC
OutputType:
Push-Pull, Totem Pole
Current-Output/Channel:
25 mA
DataRate:
-
PropagationDelaytpLH/tpHL(Max):
350ns, 350ns
Rise/FallTime(Typ):
16ns, 20ns
Voltage-Forward(Vf)(Typ):
1.7V
Current-DCForward(If)(Max):
10mA
Voltage-Supply:
4.5V ~ 20V
OperatingTemperature:
-40°C ~ 100°C
MountingType:
Surface Mount

ACPL-P480-500E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ACPL-P480-500E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ACPL-P480-500E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ACPL-P480-500E information

Views：

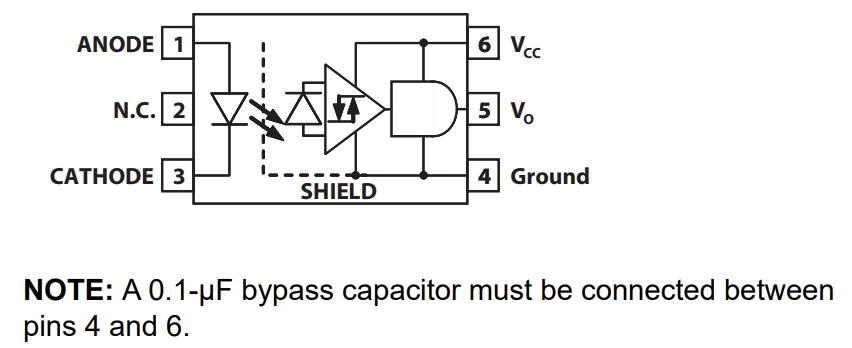

ACPL-P480-500E Typical application Circuitry

ACPL-P480-500E

The ACPL-P480-500E stands as a premium optocoupler tailored for gate drive applications. This nifty component employs optical isolation to translate voltage across a barrier, ensuring the integrity and safety of delicate electronic systems.

Functionality:

The ACPL-P480-500E is designed to provide a driving signal, isolated from the input signal. It acts as a bridge, ensuring that the input and output sides remain electrically unconnected, thereby safeguarding sensitive circuits from voltage fluctuations and spikes.

Applications:

1. Motor Drives and Control

2. Switching Power Supplies

3. Industrial Inverters

4. Induction Heating Systems

Key Specifications:

- High-Speed Performance: Quick response to input changes.

- Galvanic Isolation: Superior protection against electrical disturbances due to its optical isolation mechanism.

- High Output Current Drive Capability: Ideal for driving power MOSFETs or IGBTs.

- Wide Operating Voltage Range: Enhances compatibility with various electronic systems.

Application Scenario (Motor Drives and Control):

1. Supplying Power:

- Power Pins: Attach a suitable voltage (as per the datasheet specification) to VCC, and link the VE pin to the system ground. On the output side, similarly, connect a suitable voltage to VOCC and ground through VOE.

2. Input Signal:

- Driving the Optocoupler: Inject the control signal (PWM signal for motor control, for instance) into the LED anode (AIN) of the ACPL-P480-500E and connect the cathode (AOUT) to the ground.

3. Output to MOSFET/IGBT:

- Driving Output: The optocoupler's output pins (BIN and BOUT) should be connected to the gate and emitter/source of the MOSFET or IGBT, respectively.

4. Feedback Connection:

- Protection: Incorporate a feedback resistor between the MOSFET or IGBT and the BOUT pin to protect the ACPL-P480-500E and ensure stable operation.

Circuit Design Considerations:

- Minimizing Propagation Delay: For timely responses, especially in motor control applications, maintain short trace lengths between the ACPL-P480-500E and the MOSFET or IGBT.

- Noise Immunity: To suppress potential noise, decoupling capacitors could be introduced close to the VCC and VE pins.

- Thermal Considerations: Avoid placing the ACPL-P480-500E near heat sources and ensure that ambient conditions remain within specified limits.

- Safety: To ensure long-lasting performance, always operate within the prescribed voltage and current ratings specified for the ACPL-P480-500E.

In conclusion, the ACPL-P480-500E is an indispensable ally in applications that demand robust gate driving with electrical isolation. Proper circuitry design in tandem with the datasheet specifications is key to exploiting its maximum potential.
